Muscle wire is one of the most intuitive names in shape memory alloy design. When electrically heated, the nitinol wire contracts and can pull a small mechanism. When it cools, the design must re-stretch the wire so it can move again. That simplicity is attractive, but it can also hide the hardest engineering details: heat, reset, strain, termination, and cycle life must be designed together.
GEE SMA product notes describe muscle wire as nitinol actuator wire, shape memory actuator wire, SMA linear actuator, nitinol linear actuator, and linear 2-way actuator wire. The same notes list active Af options of 70, 90, 110, and 130 degrees C, with 90 and 110 degrees C positioned as newer product options. GEE SMA's actuator wire supply route is strongest when the buyer describes the complete motion system rather than only wire length.
The Wire Pull Is Only Half the Cycle

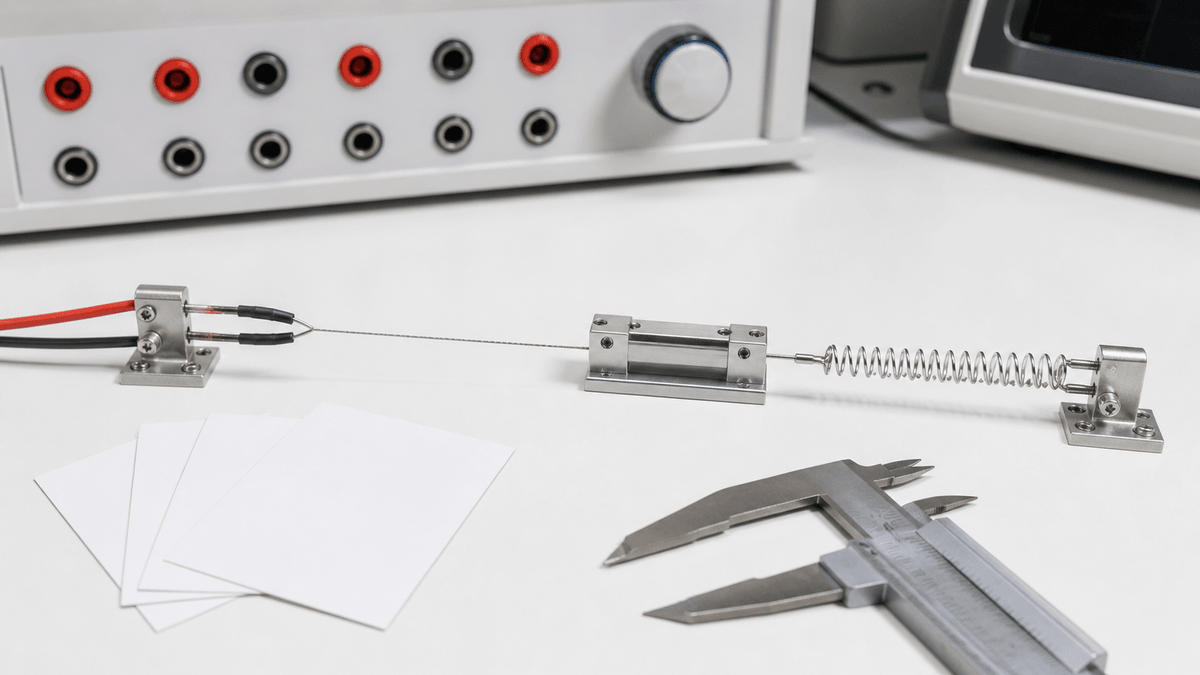

Muscle wire contracts when it is heated through its transformation range, but it does not automatically reset itself after cooling. The surrounding mechanism must re-stretch the wire through a controlled load path. That reset may come from a bias spring, an elastic structure, a return weight, an opposing actuator, or the product's own geometry. If the reset is weak, the next stroke may be short. If the reset is too aggressive, the wire may be overloaded.
This is why the user should define both the powered stroke and the cooling return. GEE SMA's actuator wire and spring motion comparison is relevant because the return design often decides whether straight muscle wire or a spring actuator is the better format.
Working Strain Separates Demos From Products
A muscle wire can show dramatic movement in a demonstration, but production designs should use conservative strain. GEE SMA product notes state that a muscle wire can be stretched up to 6 to 8 percent and still recover for a limited number of cycles, while life can improve dramatically when the strain is kept between about 2 and 4 percent. That range should not be treated as a universal guarantee, but it is a useful design warning.
The buyer should define available stroke, initial wire length, load, reset force, and cycle expectation before ordering. A 2 percent stroke over a short wire may not move enough. A longer wire may provide more stroke but need more space, more careful routing, and different heating control. GEE SMA's compact muscle wire design controls fit projects where repeated quiet motion matters more than a one-time visual effect.
Active Af Must Match the Product Environment
Active Af is the center of the thermal design. A lower active Af can make the wire easier to activate but may leave less margin in hot ambient conditions. A higher active Af can reduce accidental activation but needs more power and stronger thermal protection. The correct target depends on product temperature, user contact, nearby materials, power budget, cooling path, and required response time.

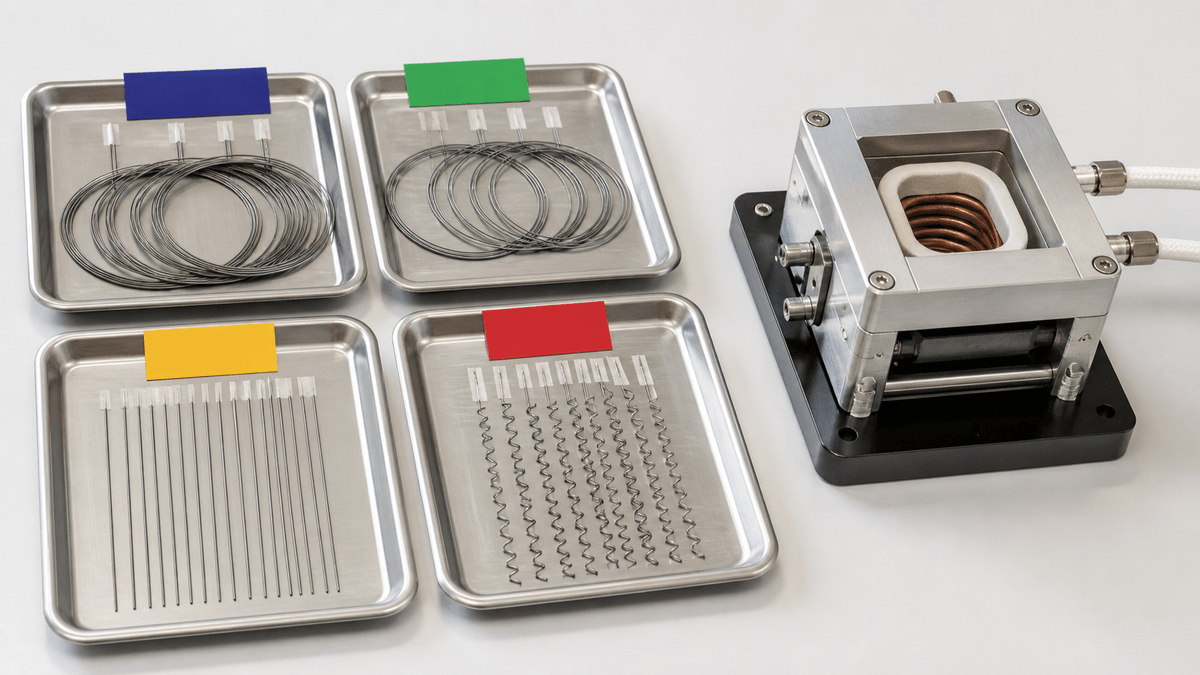

GEE SMA's product notes list 70, 90, 110, and 130 degrees C muscle-wire options. Those values should be discussed together with the heating method. Electrical heating may be direct and compact, but it makes resistance, current, insulation, anchor heat sinking, and control electronics part of the material decision. GEE SMA's shape memory alloy product range is relevant when designers are comparing active Af options for a real enclosure.
Diameter Controls Force and Cooling
Muscle wire diameter changes force output, electrical resistance, heating speed, cooling speed, and handling. A fine wire can respond quickly and fit small mechanisms, but it may be more delicate and harder to terminate. A larger wire can create more force, but it may cool slowly and need more power. The right diameter cannot be selected without a load case and duty cycle.
GEE SMA product notes present muscle wire in a practical fine-wire range and identify Ti-rich binary NiTi wire or Copper NiTi wire as possible material routes. If the product needs a narrow thermal window, Copper NiTi may be worth comparing. GEE SMA's nitinol wire production capability is relevant when the buyer wants a different transformation response from conventional binary NiTi.
Heat Must Reach the Wire, Not the Whole Product
Electrical muscle wire can heat quickly, but the thermal path is still a system. Anchors can draw heat away from the wire. Nearby surfaces can trap heat. Poor ventilation can slow cooling. A plastic enclosure may limit allowable temperature. A metal chassis may act as a heat sink. The controller may need current limiting, pulse control, or thermal feedback to keep response repeatable.
For small mechanisms such as locks, camera switches, toys, compact latches, and robotic features, packaging often matters as much as wire selection. GEE SMA product notes specifically mention electronic locks, phone camera switches, toys, and robotics as muscle-wire application areas. GEE SMA's coil spring stroke and force controls keep the heat, cooling, and motion path in one design conversation when a wire alone cannot provide enough travel.
Terminations Are Stress Concentrators
The most common practical failures often appear near anchors, crimps, clamps, or bend points. A termination must grip the wire without cutting into it, overheating it, or creating a sharp bend. If electrical current passes through the termination, contact resistance and local heating must also be considered. If the wire rubs while moving, surface wear can become a fatigue issue.
When the design needs loops, hooks, sleeves, trained shapes, or wire routing features, GEE SMA's custom nitinol wire forming capability can connect the material specification with the actual end form. A straight-wire quote may not solve an actuator that needs a reliable anchor.
Surface and Handling Should Be Specified Early
Surface condition can affect friction, heat transfer, electrical contact, corrosion behavior, fatigue initiation, and visual inspection. Depending on the product, a black oxide, light oxide, or polished surface may be acceptable or undesirable. Fine wire also needs packaging that prevents kinks and surface damage during shipping and assembly.
For products that use many short cut lengths, buyers should define cut length tolerance, spool handling, straightness, surface, and whether wire should be supplied as continuous coil, spool, or pre-cut samples. GEE SMA's nitinol surface-control approach is relevant because muscle wire is still a wire product before it becomes an actuator.
RFQ Checklist for Muscle Wire
- Define active Af target: 70, 90, 110, 130 degrees C, or a custom discussion if available.
- State wire diameter, total length, active heated length, and termination method.
- Provide load, stroke, reset force, available space, and expected cycle count.
- Describe electrical heating: voltage, current limit, pulse duration, control method, and insulation needs.
- Specify surface finish, packaging, cut length, and whether custom formed ends are needed.
- Plan functional testing around stroke, force, temperature, reset, and cooling time.
Muscle wire works best when it is treated as a complete actuator subsystem. The wire, heat input, reset mechanism, strain limit, anchor design, surface, and test plan all decide the result. GEE SMA can support muscle wire sourcing for teams that need compact motion, electrically heated SMA wire, custom formed wire, or actuator material selection with realistic design boundaries.
