The Phrase Needs Care
Nitinol passivation ASTM is a useful search phrase, but it should be handled carefully. Buyers may use it when they want a cleaner nitinol surface, better corrosion behavior, reduced nickel release risk, or medical-device documentation. Those are legitimate goals. The risk is assuming that one passivation phrase, one chemical step, or one standard reference automatically solves the surface problem.
Nitinol surface behavior depends on alloy composition, processing, heat treatment, cutting, forming, polishing, cleaning, oxide condition, contamination, geometry, and final exposure environment. Passivation can be part of a surface-control strategy, but it is not a substitute for device-specific surface characterization, corrosion testing, nickel release evaluation, and fatigue review where those risks matter.
GEE SMA supplies nitinol materials and components including nitinol wire, actuator wire, springs, sheets, tubes, and custom forms. For surface-sensitive projects, the important conversation is how the supplied material condition fits the customer's downstream finishing and validation plan.
Passivation Is About the Final Surface
Passivation is often discussed as a way to improve the surface condition of metallic medical components. For nitinol, the goal is usually to support a stable, clean, corrosion-resistant surface that is appropriate for the intended application. The final surface can influence corrosion behavior, nickel release, fatigue initiation, coating adhesion, friction, cleanliness, and inspection.
That final-surface point is critical. A wire supplied with one surface may be bent, heat set, welded, crimped, coated, or sterilized later. A tube may be laser cut and then electropolished. A sheet may be formed and cleaned. If passivation occurs before later damage or contamination, it may not represent the surface that actually reaches the finished device.
GEE SMA's nitinol biocompatibility article is useful background because it explains why the finished device condition matters more than a general material label. Surface control should follow the complete process route.
Where ASTM References Fit
ASTM references can support nitinol surface discussions, but each standard has a specific purpose. ASTM F2063 is commonly referenced for wrought nickel-titanium shape memory alloys for medical devices and surgical implants. ASTM F86 is commonly associated with surface preparation and marking of metallic surgical implants. ASTM F2129 is commonly used in discussions of cyclic potentiodynamic polarization testing for small implant devices. These references do not all mean the same thing.
A buyer should avoid writing a vague requirement such as "ASTM passivated nitinol" without naming the relevant standard, revision, process expectation, acceptance criteria, and finished condition. A supplier cannot safely guess whether the buyer wants raw material conformance, surface preparation, corrosion testing, or a specific passivation process.
GEE SMA's ASTM F2063 nitinol material content is a good reminder that standards belong inside a precise material specification. They are not a replacement for finished-component requirements.

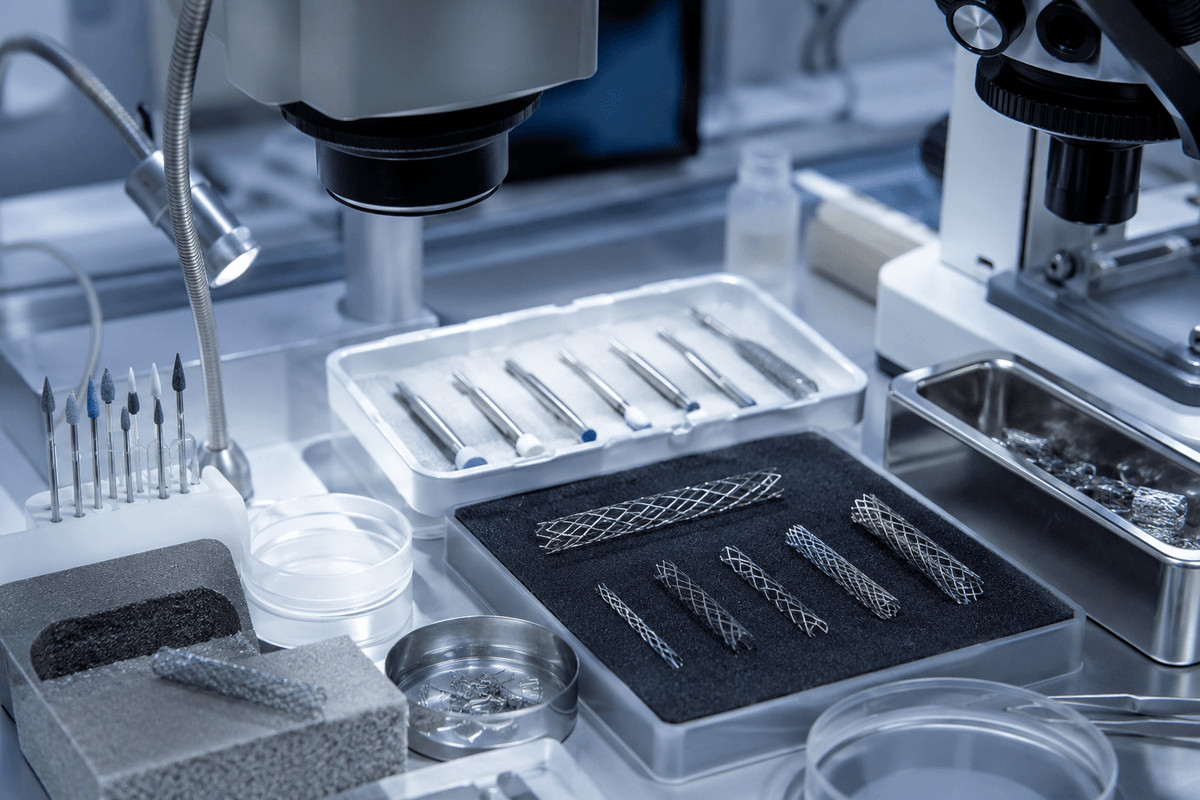

Surface Preparation Comes Before Passivation
Passivation cannot rescue every surface. If a nitinol component has heavy scale, embedded abrasive, heat-affected damage, machining marks, cracks, sharp edges, or contamination, the upstream surface preparation may need attention before passivation is meaningful. Cleaning, mechanical polishing, chemical etching, electropolishing, and inspection may all be part of the route depending on the component.
For wire, the starting surface may be black oxide, mechanically polished, or another supplied condition. GEE SMA's wire capabilities include black oxide and mechanically polished options, which can support different downstream processes. The customer should define whether the supplied surface is the final surface or a precursor to additional finishing.
For laser-cut nitinol tube or complex formed components, edge condition and heat-affected zones may be more important than the raw tube surface alone. A passivation step should be evaluated as part of the whole finishing process, not as an isolated checkbox.

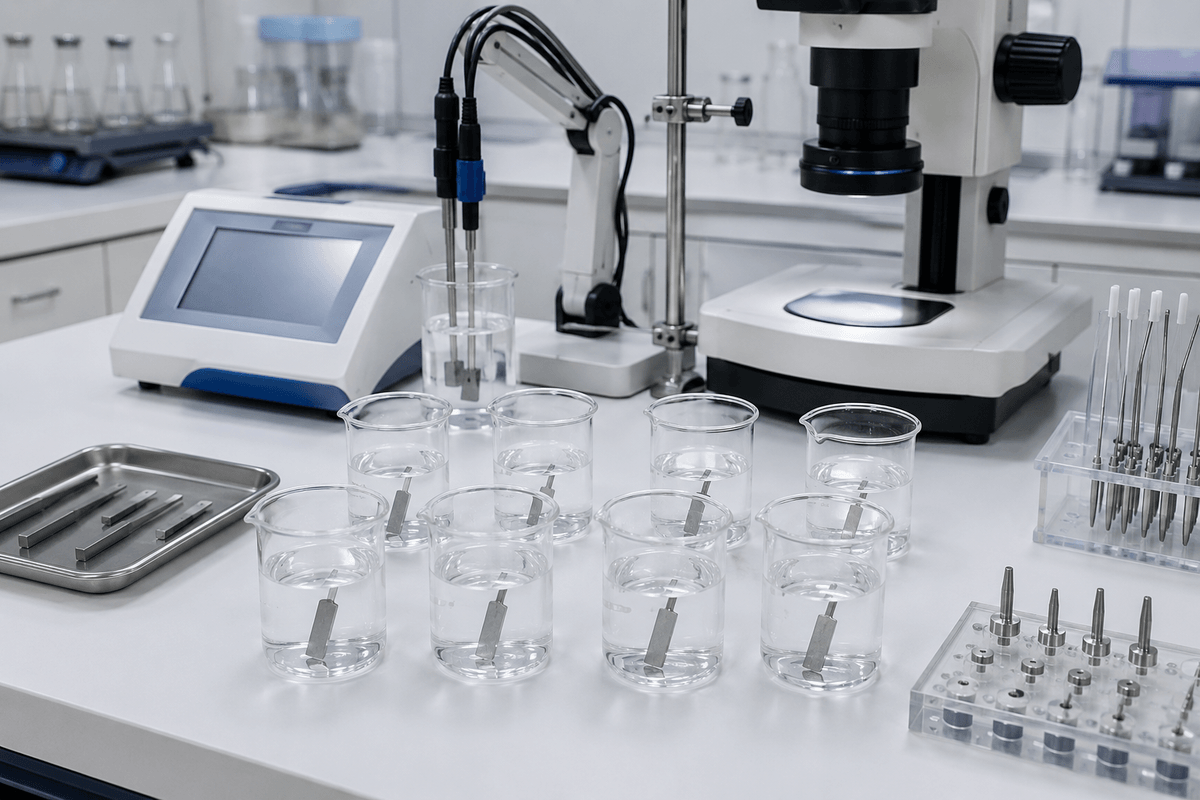

Corrosion Testing Must Match the Device
Corrosion behavior is one of the main reasons teams ask about nitinol passivation and ASTM methods. For medical devices, the relevant question is not whether a generic sample resists corrosion. The question is whether the finished device surface performs under conditions that represent the intended use or a justified worst case.
Geometry matters. A straight wire sample may not represent a formed loop with tight bends. A flat coupon may not represent a laser-cut frame with many edges. Crevices, welds, marker bands, coatings, and cleaning residues can all change local behavior. If the risk is device-specific, the test sample should be device-specific too.
The FDA's nitinol guidance highlights corrosion, nickel release, surface characterization, and fatigue because these topics can interact. A surface treatment that improves one concern should still be evaluated for its effect on the full device performance.
Nickel Release Is Not Just Chemistry
Nitinol contains nickel, so nickel release is a natural concern in medical and skin-contact applications. However, nickel release depends on more than nominal composition. Surface oxide condition, roughness, inclusions, residues, crevices, exposure media, time, temperature, and geometry can all matter. Passivation may help support a more stable surface, but final evidence must come from the finished or representative component.
GEE SMA's technical information page frames nitinol manufacturing as a controlled process. For nickel release risk, that process mindset is important. Raw material, surface preparation, cleaning, packaging, and downstream customer processing should be aligned.
Medical device teams should also remember that nickel release is part of a broader biological evaluation. A material or surface process alone does not create a complete biocompatibility claim. The OEM's quality and regulatory system must handle the finished-device evidence.
Packaging Can Protect or Damage the Surface
Surface control does not end when passivation or cleaning is complete. Fine wire, thin sheet, small tubes, and formed components can be scratched, kinked, contaminated, or mixed during packaging and handling. A carefully prepared surface can lose value if the material is shipped or stored poorly.
For surface-sensitive nitinol projects, packaging should be part of the specification. Ask how parts are separated, whether they are protected from abrasion, how lots are labeled, and whether handling instructions are needed. For medical device development, packaging records and lot segregation may also support traceability.
This is a practical supplier topic, not only a logistics topic. If a component's corrosion, nickel release, friction, or fatigue behavior depends on surface condition, the surface has to be protected until the next controlled process step.
Fatigue Can Be Affected by Surface Work
Nitinol passivation discussions often focus on corrosion, but surface work can also influence fatigue. Scratches, pits, inclusions, sharp edges, and heat-affected surface damage can become fatigue initiation sites. Polishing or electropolishing may improve some surface features, but aggressive processing could alter dimensions or introduce other concerns if not controlled.
For components that flex repeatedly, fatigue testing should follow the final geometry and surface condition. This is especially important for guidewire-related components, springs, self-expanding structures, and formed wire devices. GEE SMA's nitinol guidewire technology content shows why bending and recovery behavior must be considered together with surface and handling.
A surface process should therefore be reviewed as part of both corrosion risk and mechanical risk. In nitinol, those topics often meet at the surface.
How to Write a Better Requirement
A better nitinol passivation requirement starts by naming the component, finished condition, intended use, relevant standard or method, surface process, inspection criteria, and acceptance criteria. If the buyer expects ASTM F86 surface preparation, ASTM F2129 corrosion testing, ASTM F2063 material conformance, or another method, each should be stated clearly.
The requirement should also identify who performs which step. Does the supplier provide black oxide wire only? Does the supplier polish? Does the customer heat set and passivate later? Does a third party electropolish and test? If multiple parties touch the surface, the process route and responsibility boundaries should be documented.
For custom components, GEE SMA's custom nitinol wire forming resource is relevant because forming and surface condition interact. A bend, loop, or special profile may need different inspection than straight wire.
Supplier Questions
- What surface condition is supplied as standard for the requested nitinol form?
- Is the surface final, or is it intended for downstream polishing, passivation, coating, or cleaning?
- Which ASTM standard or test method is being requested, and what acceptance criteria apply?
- Will the test sample represent the final device geometry and surface condition?
- How are lot traceability, packaging, and surface protection handled after finishing?
- Who owns final medical device validation, biocompatibility, and regulatory claims?
These questions keep the discussion grounded. They also prevent a broad phrase such as nitinol passivation ASTM from becoming an unclear purchase order requirement.
Bottom Line
Nitinol passivation is best understood as part of surface control. ASTM references can help define material, surface preparation, and corrosion testing expectations, but they must be used precisely. The final surface, final geometry, and final use condition determine the evidence that matters.
For teams sourcing nitinol wire, tube, sheet, spring, actuator wire, or custom forms, GEE SMA can support material and component discussions. The strongest approach is to define the surface route early, connect it to the relevant standards or tests, and validate the finished component rather than relying on a generic passivation claim.
