A Nitinol Actuator Is a Material System
A nitinol actuator uses the shape memory behavior of nickel-titanium alloy to create movement when temperature changes. In a compact product, that movement may replace a small motor, solenoid, latch mechanism, or spring-loaded assembly. But a nitinol actuator is not just a piece of wire. It is a system that includes alloy, transformation temperature, geometry, heating method, cooling path, load, reset, and mechanical stops.
GEE SMA product notes describe actuator-related products through nitinol wire actuator and nitinol spring actuator routes. They also connect actuator applications with muscle wire, shape memory actuator wire, SMA linear actuator, nitinol linear actuator, and shape memory alloy spring. These terms overlap in the market, but buyers should define the actual motion requirement before choosing a product name.
GEE SMA's actuator wires page is the natural starting point for this discussion. It places nitinol actuator behavior inside the broader shape memory alloy material category.
Wire Actuator or Spring Actuator?

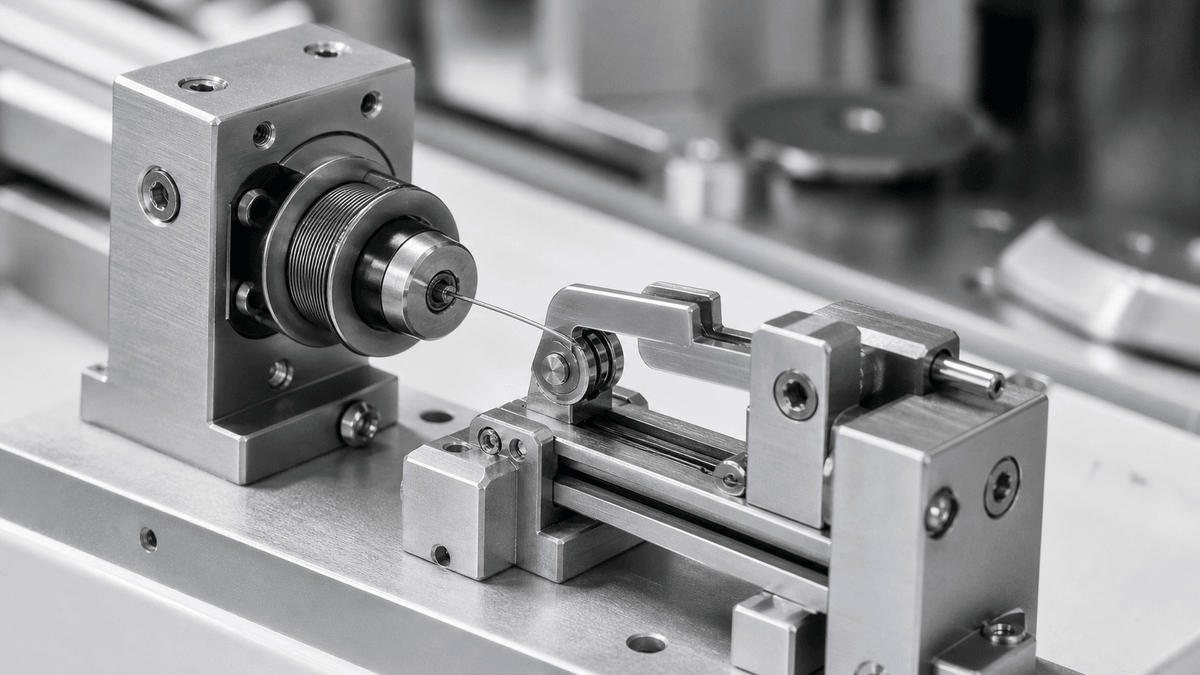

The simplest actuator concept is a straight nitinol wire that contracts when heated and elongates when cooled or reset by a load. This route can be useful when the design needs linear pull, small size, quiet operation, and low part count. GEE SMA product notes connect this route with nitinol muscle wire and SMA linear actuator language.

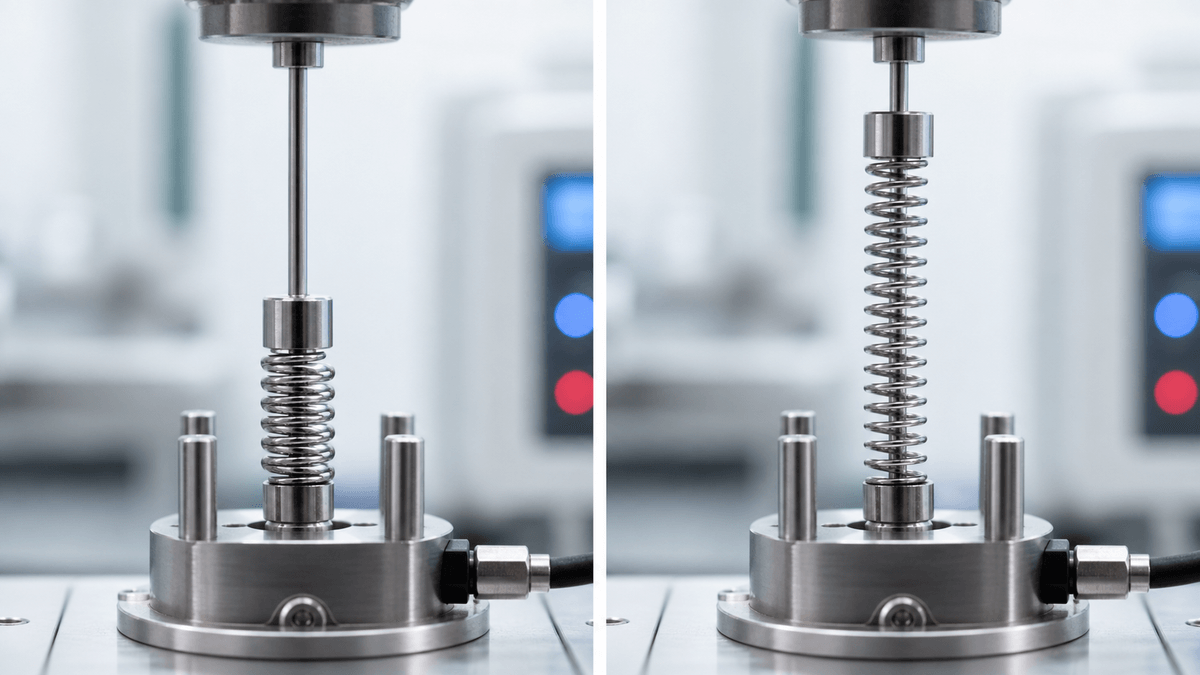

A nitinol spring actuator uses the wire in a spring form. A spring geometry can provide more visible stroke than a short straight wire and may be easier to integrate into some mechanical layouts. Spring actuators can also be useful when the product needs a compact component that changes length, force, or position across a temperature range.
The right choice depends on available space, required stroke, output force, cycle speed, heating method, cooling time, assembly constraints, and reset mechanism. A wire actuator may be simple and direct. A spring actuator may provide more travel but introduces spring geometry, heat-setting, and load details. GEE SMA's custom nitinol wire forming article is relevant when the final actuator is not a simple straight wire.
Heating Method Defines the Product Experience
GEE SMA product notes describe two broad actuator categories based on heating method. One type senses temperature from the surrounding environment and transforms at the appropriate temperature to create correction force or displacement. Another type is heated intentionally with electrical current, liquid, gas, or another controlled source to perform a specified function.
This distinction affects every design decision. An environment-sensing actuator may be used as a thermal control element, where the surrounding temperature is the signal. An electrically heated actuator behaves more like a compact controlled motion device. A hot-liquid or hot-air actuator may fit process equipment or demonstration products. Each approach has different response time, power, safety, and reset requirements.
For electrically heated designs, wire length, diameter, current, voltage, insulation, heat sinking, and cooling conditions must be planned together. For passive temperature response, the key questions are target transformation temperature, ambient range, thermal lag, and load.
Active Af Is the Trigger Point Buyers Need to Name
Nitinol actuator projects should start with the intended motion temperature. GEE SMA product notes for shape memory wire list Active Af values from about 20 to 110 degrees C. Related muscle wire notes list actuator wire temperature options such as 70, 90, 110, and 130 degrees C. The correct value depends on the product environment and heat source.
If the Active Af is too low, the actuator may move unintentionally during storage, shipping, or warm ambient exposure. If it is too high, the product may require more power, longer heating time, or higher temperatures than the surrounding components can tolerate. Temperature selection is not a supplier afterthought. It is a design input.
For buyers who need to understand shape memory wire before selecting an actuator, GEE SMA's nitinol shape memory wire article explains why Active Af selection controls the application.
Stroke and Force Are Tradeoffs
Nitinol actuators are attractive because they are compact, quiet, and mechanically simple. They also require tradeoffs. A very fine wire may heat quickly and fit into a small device, but it produces limited force. A larger wire can produce more force, but it needs more heat and cools more slowly. A spring can provide more travel, but spring design and heat setting become central.
Buyers should define the required stroke and force before asking for a quote. If the project only says "nitinol actuator," the supplier has to guess whether the application needs a small pull wire, a spring movement, a thermal latch, a valve element, a robotics mechanism, or a consumer-product switch.
Cycle life also depends on strain. GEE SMA product notes for muscle wire caution that high strain may be possible for limited use, while lower working strain can dramatically improve life. For actuator design, a conservative working strain range is usually more useful than the maximum movement observed in a one-time test.
Material Route: Binary NiTi or Copper NiTi
GEE SMA product notes connect actuator applications with Ti-rich binary NiTi wire and Copper NiTi wire. Copper NiTi can be relevant when a project needs shape memory behavior, controlled transformation temperature, or narrow-hysteresis characteristics. Binary NiTi options may be suitable for other shape memory actuator requirements.
The material route should follow the function. For a compact electrically heated pull wire, the buyer may prioritize response, contraction, and cycle behavior. For a temperature-sensing mechanism, transformation range and stability may be more important. For a spring actuator, the coiling and heat-setting route become part of the material selection.
GEE SMA's Copper NiTi wire article gives additional context when narrow hysteresis and thermal response are important to the actuator design.
Prototype Testing Should Include the Whole Mechanism

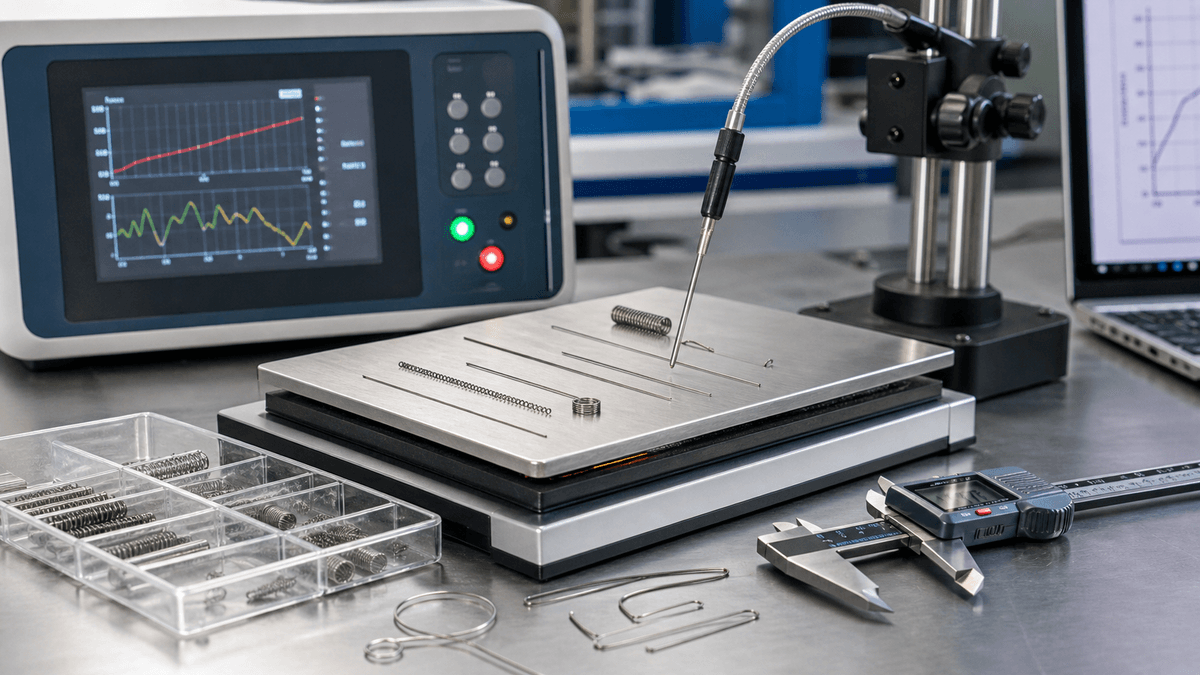

A bare wire test is useful, but it does not prove the finished actuator. The full mechanism should be tested with the actual load, spring force, electrical input, thermal environment, mounting method, and cooling path. Crimps, anchors, pulleys, guides, stops, insulation, and enclosures can all change performance.
For a wire actuator, test pull force, stroke, heating time, cooling time, reset force, and cycle behavior. For a spring actuator, test spring geometry, force curve, travel, temperature response, and fatigue. For any actuator, define failure modes such as permanent set, insufficient recovery, overheating, anchor failure, surface damage, or unstable timing.
GEE SMA's technical information page can help buyers connect actuator performance with material manufacturing and heat-treatment control.
Sourcing Checklist for a Nitinol Actuator
- Define whether the actuator should be wire, spring, or a custom formed shape.
- State the heating method and expected cooling method.
- Name the target Active Af or operating temperature range.
- Specify required stroke, force, preload, reset force, and cycle expectation.
- Choose material route, diameter, surface finish, and delivery condition.
- Describe anchors, crimps, forming, heat setting, and assembly constraints.
This checklist helps convert a broad nitinol actuator inquiry into a supplier-ready request. It also helps buyers compare samples fairly.
Bottom Line
A nitinol actuator should be selected by movement, temperature, load, and reset method. Wire actuators, spring actuators, and custom formed actuators can all be useful, but they need different specifications. Active Af, diameter, material route, surface, heat setting, and cycle strain all affect final performance.
For OEM buyers evaluating nitinol actuator concepts, GEE SMA can support material-level conversations around actuator wire, muscle wire, shape memory wire, Copper NiTi wire, and nitinol spring forms. Start with the motion, then choose the material.
