Why It Is Called Muscle Wire

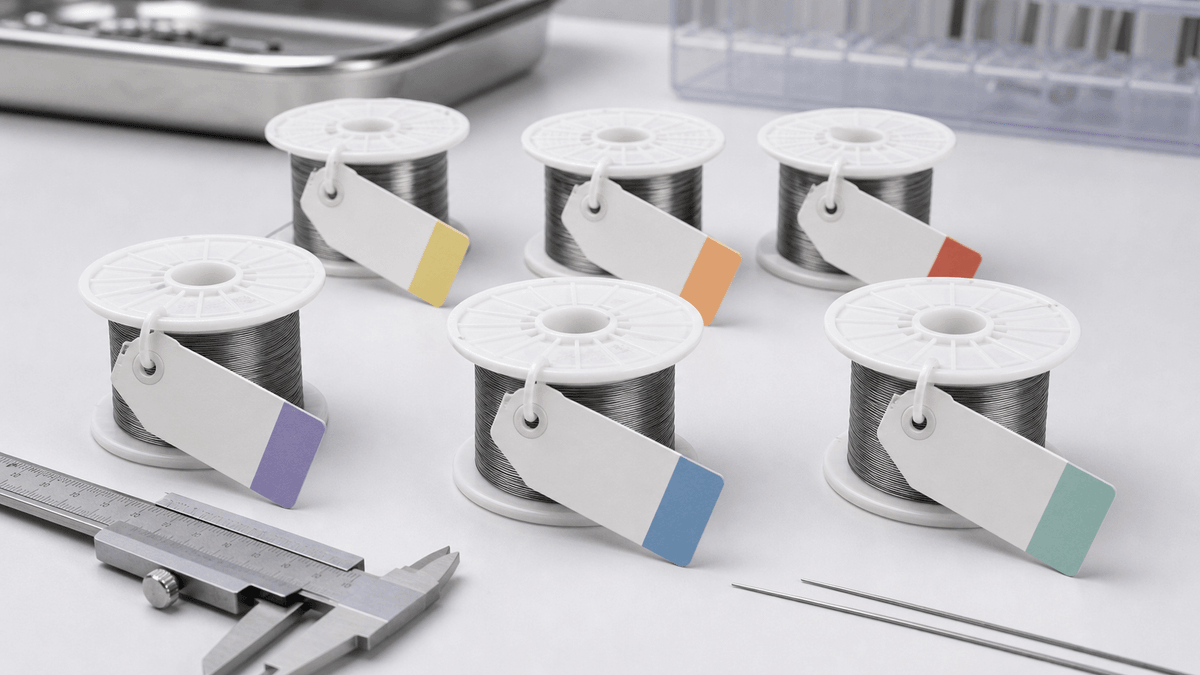

Nitinol muscle wire is a shape memory alloy wire that contracts when heated and elongates again when cooled or reset by the system design. The name comes from its muscle-like movement: a thin wire can pull with useful force in a compact space. In the market, the same product family may also be called nitinol actuator wire, shape memory actuator wire, SMA linear actuator, nitinol linear actuator, or two-way actuator wire.
GEE SMA product notes describe nitinol muscle wire as an actuator wire used for compact motion in electronic locks, phone camera switches, toys, robotics, and small mechanisms where a conventional motor may be too bulky, noisy, or complex. That makes it attractive for product engineers, but it also means the specification has to be practical.
GEE SMA's actuator wires page is the natural internal link for buyers comparing muscle wire with broader nitinol actuator options.
Heat Turns the Wire Into an Actuator
Nitinol muscle wire belongs to the category of intentionally heated actuators. Instead of waiting for ambient temperature change, the product typically uses electrical current or another controlled heat source to raise the wire temperature. When the wire reaches its transformation range, it contracts and creates motion. When it cools, it elongates or is reset by the mechanical system.
This behavior can produce quiet, compact movement, but it is not the same as a rotary motor. The design must include the wire, anchors, electrical path, heat source, cooling method, load, stop position, reset method, and protection against overheating. A bare wire sample does not prove the finished mechanism.
For buyers who are still comparing actuator concepts, GEE SMA's nitinol actuator article explains the difference between wire actuators, spring actuators, and temperature-sensing actuator routes.
Active Af Options Should Match the Device
GEE SMA product notes list four nitinol muscle wire temperature options: Active Af 70, 90, 110, and 130 degrees C. The notes also identify 90 and 110 degrees C as newer product options. These temperatures should be selected around the product environment, heating method, user safety considerations, nearby materials, and response speed.
A lower temperature option may be easier to activate, but it may also be more sensitive to hot environments. A higher temperature option may provide more separation from normal ambient conditions, but it can require more power or stronger thermal design. The correct choice depends on the whole product, not only the wire.
For shape memory material background, GEE SMA's nitinol shape memory wire article is useful because it explains why Active Af is the center of thermal motion specifications.
Diameter Controls Force, Speed, and Handling
GEE SMA product notes list nitinol muscle wire diameters from very fine sizes up to about 0.60 mm in the actuator wire section. In practical design, diameter affects heating speed, cooling speed, force output, electrical resistance, flexibility, and assembly robustness. A fine wire may respond quickly and fit into very small products. A thicker wire can produce more force but may need more current and more cooling time.
The buyer should provide target stroke, load, available electrical input, wire length, mounting method, and cycle expectation. Without those details, a supplier can only recommend a rough starting point. Muscle wire behaves as part of the mechanism, so the surrounding design matters as much as the material itself.
GEE SMA's broader nitinol wire page can help buyers understand that diameter and condition are core material choices across many nitinol products, not only actuator wire.
Strain Limit Is the Difference Between Demo and Product
GEE SMA product notes state that muscle wire can be stretched up to about 6 to 8 percent of its length and still recover for limited use, while a lower working strain range of about 2 to 4 percent can dramatically extend cycle life. This is one of the most important practical points in muscle wire design.
A bench demonstration may look impressive when the wire moves a large distance, but a product usually needs repeatable movement over many cycles. Designing for lower working strain, mechanical stops, stable cooling, and controlled electrical input can make the difference between a novelty demo and a reliable actuator component.
Buyers should also define what "cycle life" means for their product. A toy, lock, camera switch, test fixture, and robotics mechanism may have very different expectations for cycle count, duty cycle, and acceptable response time.
Where Muscle Wire Fits Best

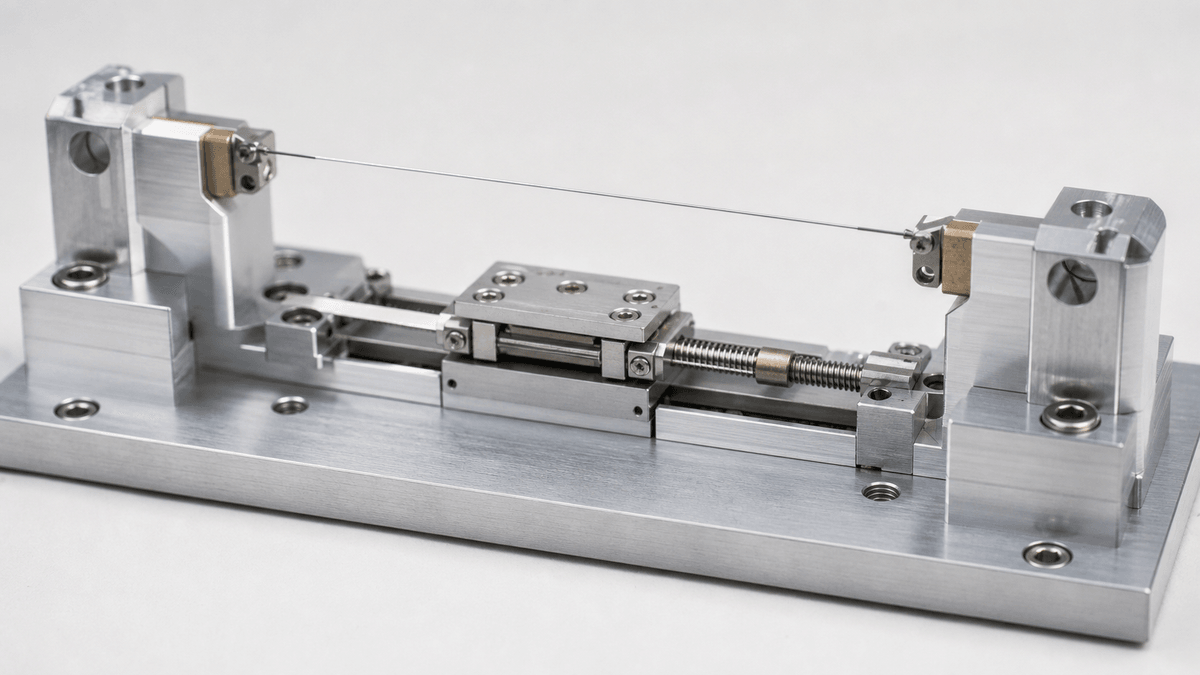

Nitinol muscle wire is well suited for small linear motion where quiet operation, low profile, and low part count are valuable. GEE SMA product notes mention electronic locks, phone camera switches, toys, and robotics. Other possible uses include small latches, vents, micro-positioning devices, educational kits, compact release mechanisms, and prototype automation concepts.
The wire is less suitable when the product needs continuous rotation, very fast repeated cycling without cooling time, high power efficiency, or large long-stroke motion. Muscle wire can be elegant, but it should be selected for the right job.
If the application needs a spring shape or a more complex trained form, buyers should review GEE SMA's custom nitinol wire forming content. Many actuator products need anchors, trained shapes, springs, loops, or formed wire elements rather than loose straight wire only.
Material and Surface Options
GEE SMA product notes describe nitinol muscle wire as made from Ti-rich binary NiTi wire or Copper NiTi wire, with alloy examples such as Copper NiTi and SM498 to SM501 in the muscle wire specification notes. The material route should follow the target temperature, response behavior, and product use.
The notes list polished bright and oxide black surface options. Surface selection may affect handling, appearance, assembly, electrical contact, and downstream coating or insulation. If the wire will be crimped, soldered to a connector, clamped, insulated, or routed through a plastic housing, the surface and connection method should be tested together.
For designs where Copper NiTi is being considered, GEE SMA's Copper NiTi wire article gives useful context on temperature response and narrow hysteresis.
Common Design Mistakes
One mistake is powering the wire without controlling temperature or current. Overheating can reduce performance, damage nearby materials, or shorten life. Another mistake is using too much strain to get a dramatic stroke. The first test may work, but repeated cycling may fail quickly.
A third mistake is ignoring cooling. Muscle wire contraction may be fast, but reset time often depends on how quickly the wire cools. Airflow, housing design, wire diameter, duty cycle, and surrounding materials all affect response time. A fourth mistake is weak anchoring. The connection point can fail before the wire itself if crimps, clamps, or terminals are not designed for repeated movement.

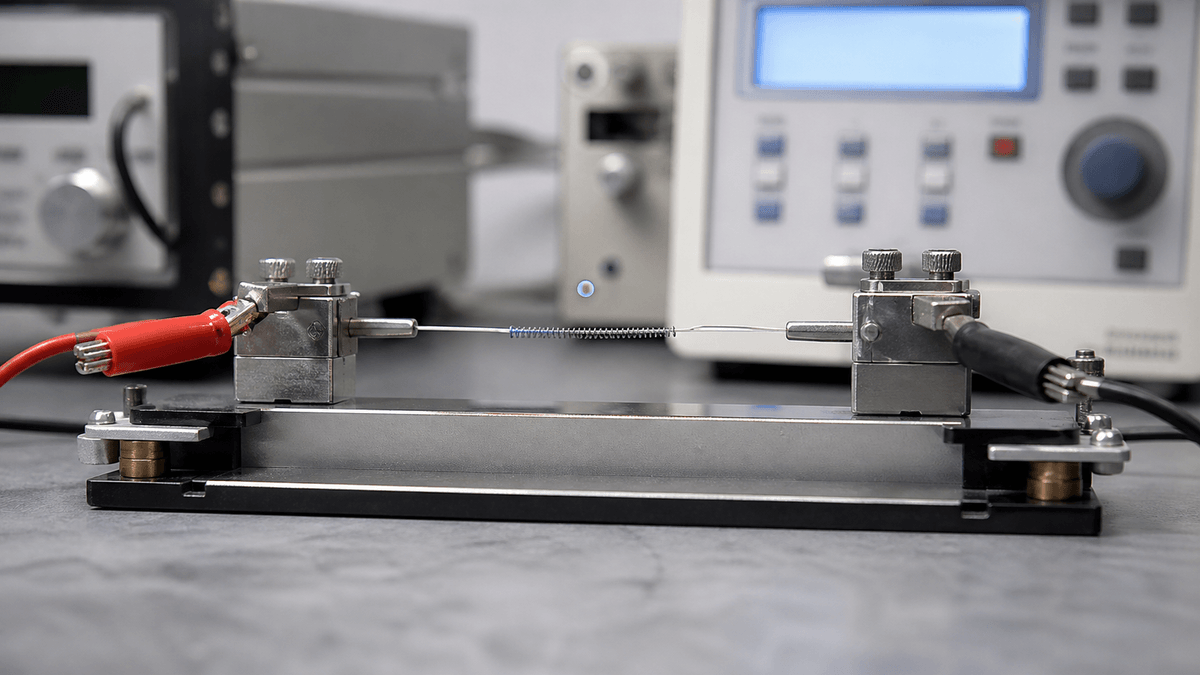

Good product development tests the full system: wire, power, load, anchors, cooling, enclosure, and controls. That is the only way to know whether the selected wire condition fits the final product.
Questions to Ask Before Ordering
- Which Active Af option is needed: 70, 90, 110, or 130 degrees C?
- What stroke, force, preload, and reset method does the mechanism require?
- What diameter and wire length fit the available space and electrical input?
- What working strain will be used in normal operation?
- Will the wire be straight, coiled, trained, crimped, insulated, or assembled into a custom form?
- What surface is preferred: polished bright or oxide black?
These questions give a supplier enough information to support a realistic sample recommendation. They also help buyers avoid overloading the wire in early prototypes.
Bottom Line
Nitinol muscle wire is useful when a product needs small, quiet, heat-driven linear movement. The important decisions are Active Af, diameter, strain, heating method, reset design, material route, surface, and anchoring. A successful design treats the wire as one part of an actuator system.
For buyers evaluating nitinol muscle wire, GEE SMA can support discussions around actuator wire, shape memory wire, Copper NiTi wire, spring actuator concepts, and custom formed nitinol components. The best sample request starts with the motion the product needs to create.
