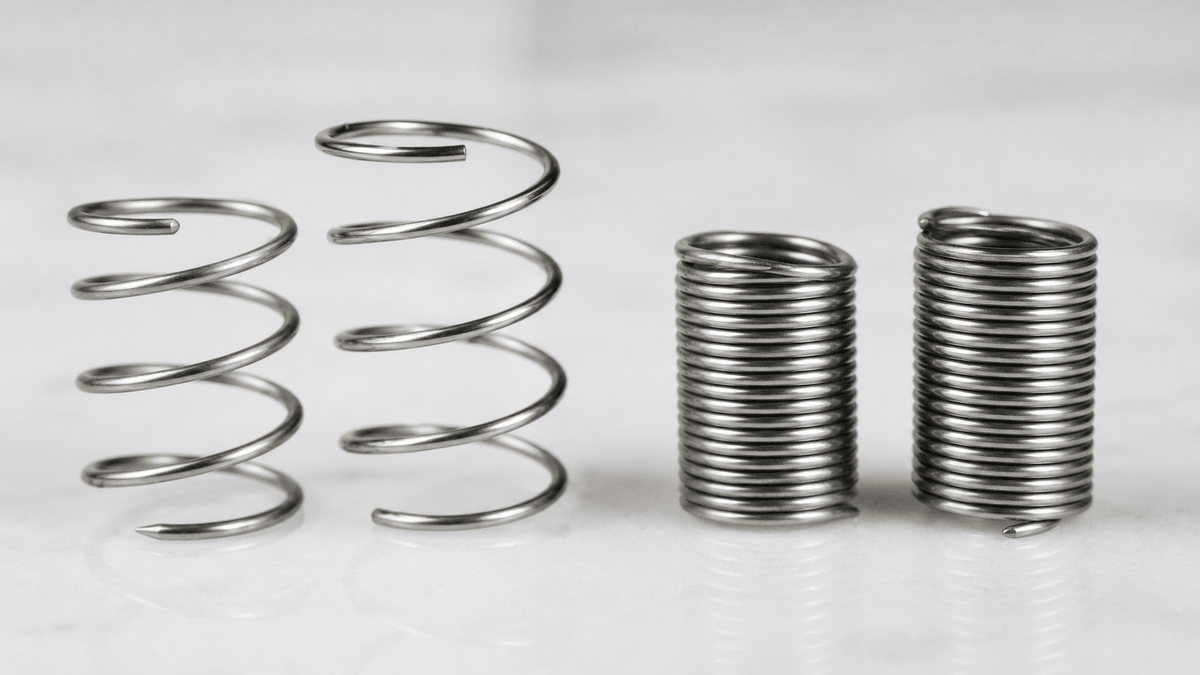

A Wire Motor Is a Specialized SMA Actuator
A Nitinol wire motor uses fine nickel-titanium shape memory alloy wire as the active motion element. When electrical current is applied, the wire heats. As it moves through its transformation range, it contracts and produces mechanical motion. When current is removed and the wire cools, the wire elongates again through the reset path designed into the mechanism.
In practical product language, a Nitinol wire motor may also be called a nitinol muscle wire, SMA motor, nitinol linear actuator, or nitinol wire actuator. These names overlap because the same material behavior is being used to move a lever, slider, latch, gear, camera element, small joint, or compact consumer mechanism. The important point is not the label. It is the motion requirement.
GEE SMA product notes describe three broad nitinol motor forms: wire type, spring type, and plate type. The wire type is one of the most common forms for miniature actuation because a fine wire can act as both actuator and thermal sensor in a small package. GEE SMA's actuator wires page is the natural starting point for this product family.
Motor and Actuator Are Related, Not Identical
A nitinol actuator is any component or device that uses shape memory alloy behavior to move another component. It may perform a one-time release, a thermal correction, a latch action, or repeated movement. A Nitinol wire motor is more specific: it is usually discussed when the wire is being used to convert electrical or thermal energy into repeated linear or mechanical motion.
For example, a safety latch that releases once at a set temperature is an actuator. A small consumer mechanism that repeatedly pulls a slider when current is applied may be described as a wire motor. In product development, the distinction helps define cycle life, control electronics, reset force, cooling time, and user experience.
GEE SMA product notes also connect wire motors with nitinol muscle wire. That link is useful because many miniature wire-motor designs are essentially controlled muscle-wire systems.

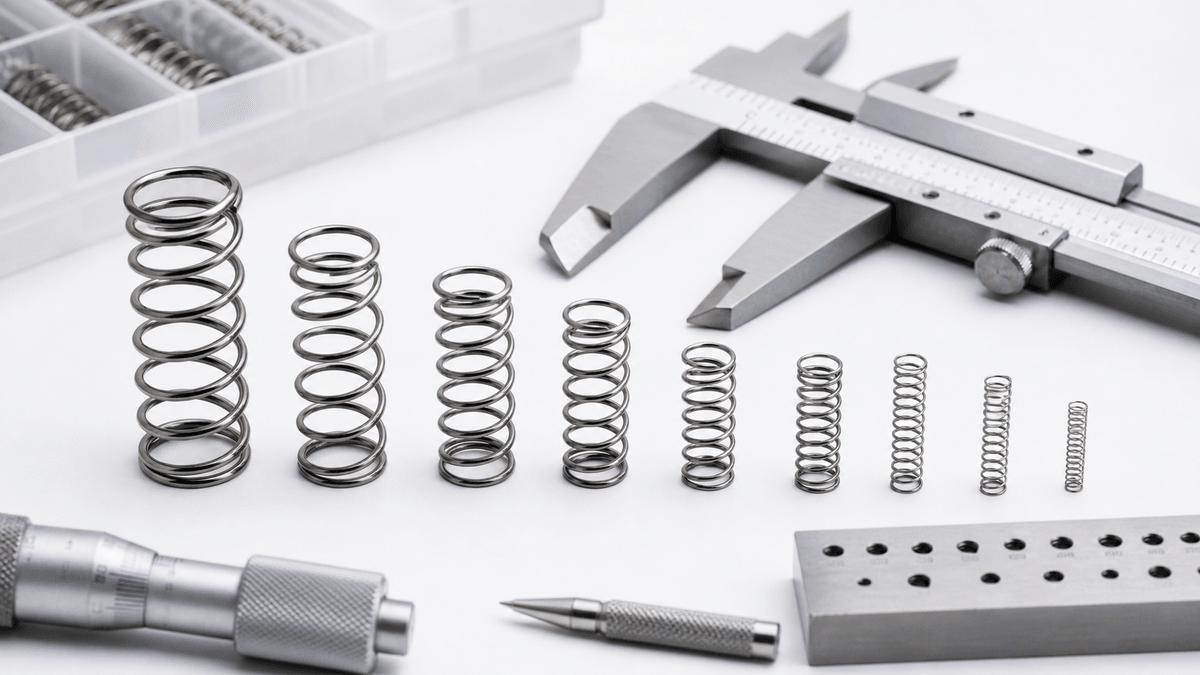

Current On, Wire Contracts
The working sequence is simple to describe but demanding to design. Current turns on, the wire heats, the wire contracts, and the mechanism moves. Current turns off, the wire cools, and the wire elongates through the reset force or spring return in the mechanism. If the reset path is poorly designed, the wire may not return consistently even if the material itself is correct.
Electrical design matters. Wire length, diameter, resistance, available voltage, current limit, insulation, anchors, heat sinking, and duty cycle all influence response. A small change in wire diameter can change heating speed, output force, and cooling time. A compact enclosure can slow cooling. A metal frame can draw heat away faster than expected.
GEE SMA's nitinol actuator article is useful when the buyer is still comparing straight wire, spring, and formed actuator designs.

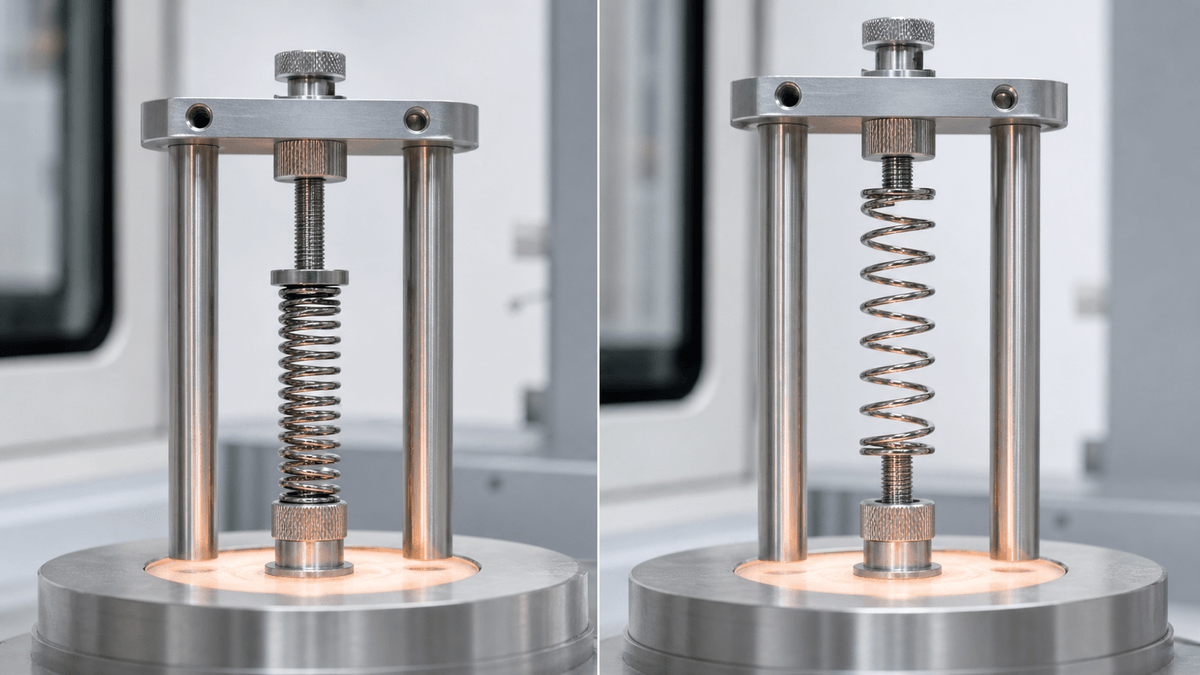

Active Af Options Change Response
GEE SMA product notes list four Nitinol wire motor transformation temperature options: Active Af 70, 90, 110, and 130 degrees C. These options should be selected around the product environment, heating method, required response, nearby materials, user contact risk, and cooling path. A lower temperature option may be easier to activate, but it may be more sensitive to hot ambient conditions. A higher temperature option may create clearer separation from normal ambient exposure, but it may require more power and stronger thermal protection.
The notes also indicate that higher transformation temperature wire can respond faster in some wire motor contexts. Buyers should treat this as a design variable to test, not a universal promise. Response depends on diameter, current, thermal mass, airflow, mounting, and the load being moved.
For the underlying temperature language, GEE SMA's nitinol shape memory wire article explains why Active Af should be defined before sampling.
Diameter Is the Force and Timing Dial
GEE SMA product notes list Nitinol wire motor diameters from about 0.001 inch, or 0.025 mm, to about 0.024 inch, or 0.60 mm. That range covers very fine wires for tiny motion systems as well as larger wire options for higher force. Diameter is one of the first decisions the buyer should discuss because it affects force, heating speed, cooling speed, electrical requirement, fatigue behavior, and handling.
A thinner wire heats quickly and cools quickly, making it useful in small mechanisms where speed and compactness matter. A thicker wire can produce more pull force but may need more current and more time to cool. The strongest wire is not automatically the best motor wire. The best wire is the one that balances force, stroke, speed, power, and life in the real mechanism.
GEE SMA's broader nitinol wire product family helps buyers connect wire diameter, surface, delivery condition, and material behavior across actuator and non-actuator applications.
Short Response Time Needs a Thermal Plan
Wire motors are often selected because they can create quick, quiet movement in a small space. Product notes for GEE SMA emphasize short response time as one of the wire motor features. But short response time does not come from the wire alone. It comes from the wire, electrical input, heat transfer path, load, and cooling environment working together.
Design teams should test both on-time and off-time. On-time is the heating and contraction phase. Off-time is the cooling and reset phase. Many prototypes look good on activation but feel slow on reset because the wire is trapped in a warm enclosure or mounted to a poor heat path. If the device needs repeated cycling, off-time can become the limiting factor.
A good prototype test records current, voltage, wire length, wire diameter, temperature target, stroke, load, on-time, off-time, and cycle count. Without those records, it is hard to know whether a second sample is truly better or merely tested under different conditions.
Fatigue Life Depends on Strain Discipline
GEE SMA product notes connect wire motors with high fatigue life, based on material purity, wire production, and heat-treatment experience. Buyers should still understand that fatigue life is strongly affected by design strain. A wire can survive many cycles when working strain is controlled, but it can fail quickly if the mechanism asks for too much movement from too short a wire.
Mechanical stops are important. They prevent the system from over-stretching the wire during reset or over-pulling the load during activation. Anchors matter as well. Crimps, clamps, soldered joints, welded connections, and terminals should be tested because the connection can become the weak point in a compact wire motor.
For applications that require a trained shape rather than a simple straight pull, GEE SMA's custom nitinol wire forming article provides useful context.
Where Nitinol Wire Motors Fit
GEE SMA product notes mention miniature actuators and compact consumer electronics as natural wire motor applications. They also describe examples such as small mechanical toys, micro-robot joints, autofocus and image stabilization functions in mobile phone cameras, levers, sliders, and gear movement. These examples show why nitinol wire motors are attractive: they are small, quiet, and mechanically simple.
They are not a universal replacement for every motor. They are best when the required motion is short, linear or easily converted, intermittent, and thermally manageable. They are less ideal for continuous high-speed rotation, long stroke without a spring or linkage, or applications where cooling time cannot be tolerated.
The buyer should describe the real mechanism before asking for a wire quote. A camera movement, toy joint, lock release, and robotics linkage may all use SMA wire, but each needs different wire length, diameter, power, and reset design.
Buyer Checklist
- Define whether the project needs wire type, spring type, or another SMA motor form.
- Select an Active Af target such as 70, 90, 110, or 130 degrees C.
- State wire diameter, wire length, stroke, load, and reset force.
- Describe electrical input, current limit, duty cycle, and cooling condition.
- Identify anchors, crimps, insulation, pulleys, levers, or gear interfaces.
- Define cycle life target and acceptable response time.
Bottom Line
A Nitinol wire motor is a compact SMA motion system, not just a wire. The key decisions are Active Af, diameter, electrical heating, cooling, stroke, strain, load, anchoring, and cycle life. GEE SMA can support material-level discussions around wire motor options, muscle wire, shape memory wire, actuator wire, and custom formed nitinol components.
The strongest sourcing request starts with the desired movement. Once the movement, temperature, load, and timing are clear, the wire specification becomes much easier to build.
