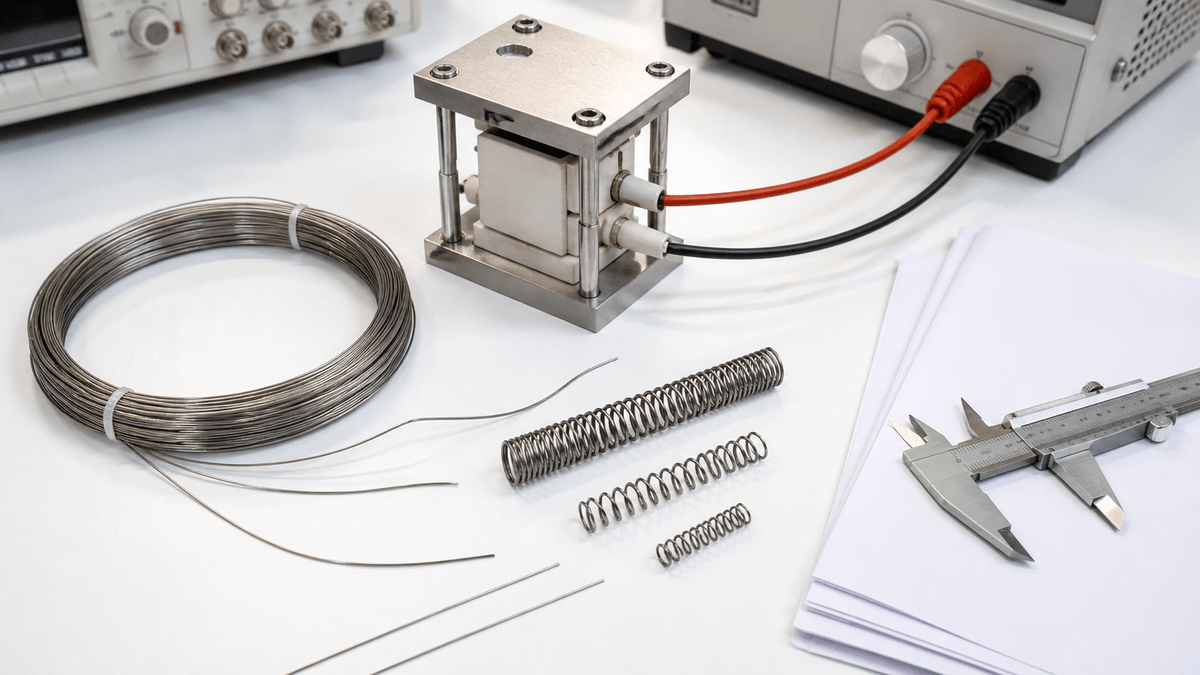

A Nitinol actuator looks simple when it is described as a wire or spring that moves with heat. In a real mechanism, however, the actuator is a thermal system first. The motion depends on active Af, heating method, cooling path, preload, reset force, stroke, working strain, surrounding materials, and the way the nickel-titanium element is attached to the assembly.
GEE SMA product notes divide nitinol actuator work into two practical families. One type senses environmental temperature and transforms at the designed temperature to provide correction force or displacement. The other type is forced to heat by electrical current, liquid, gas, or another input when the product needs a commanded motion. GEE SMA's actuator wire capability fits the second route when compact motion is needed from a fine shape memory alloy element.
Motion Starts With the Heat Source
The first actuator decision is not wire diameter. It is how the material will be heated and how fast it can cool. Electrical heating is common for small wire actuators because the wire can heat directly through resistance. Liquid or gas heating can be more suitable for valves, thermal control, or sensing applications. Ambient temperature activation may be useful when the actuator should respond automatically to the environment rather than to a command signal.
The heat source affects power, insulation, nearby plastics, contact safety, response time, and reset. If the actuator heats quickly but cannot cool quickly, cycle speed will be limited. If the heat source spreads beyond the nitinol element, the surrounding product may drift, soften, or change calibration. GEE SMA's nitinol wire manufacturing range is relevant when the buyer needs motion in a tight space without treating the wire as an isolated part.

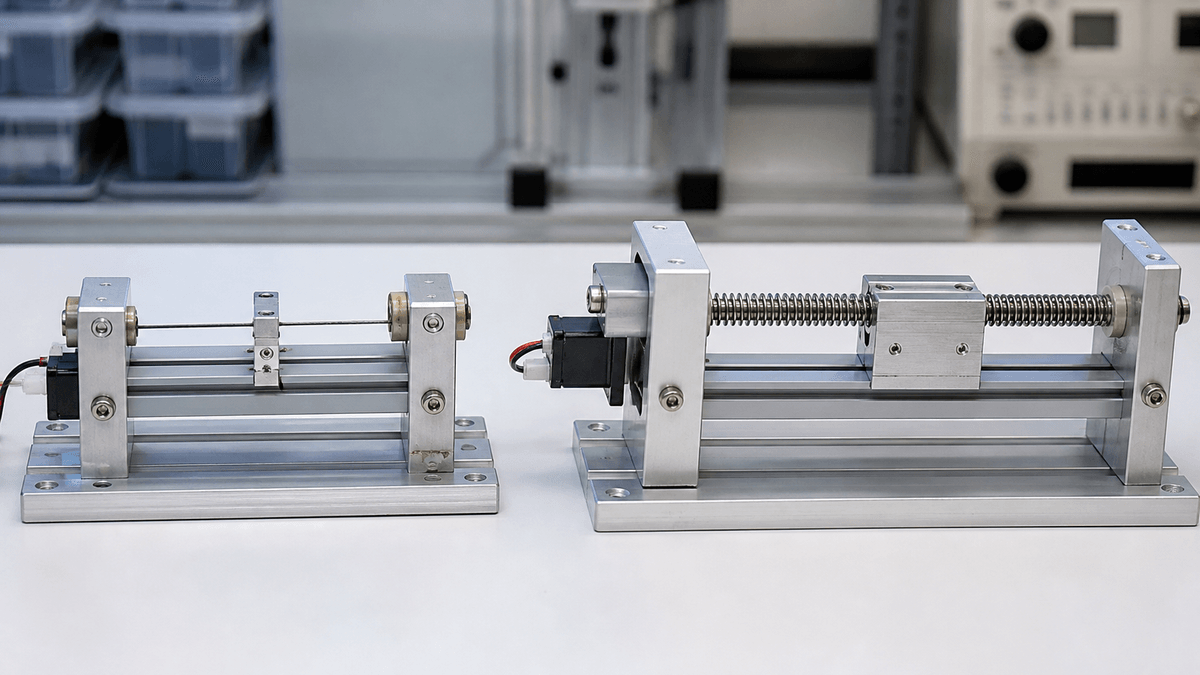

Wire and Spring Formats Solve Different Problems
GEE SMA product notes describe two common forms: nitinol wire actuator and nitinol spring actuator. The wire form is often called muscle wire. It is compact, direct, and useful when a small linear pull can move a latch, switch, miniature mechanism, toy, phone camera element, or robotic feature. The spring form can provide a larger stroke because the coil geometry multiplies the motion available from the wire material.
The spring route is not automatically better. Springs need more space and require control of coil diameter, wire diameter, pitch, free length, load, end form, and heat setting. A straight wire actuator may fit inside a thin product where a coil spring cannot. GEE SMA's wire and spring actuator comparison is useful because the choice is mechanical, thermal, and packaging related at the same time.
Active Af Sets the Operating Window
Active Af should be specified before prototype hardware is frozen. GEE SMA product notes list actuator and muscle-wire active Af options such as 70, 90, 110, and 130 degrees C. Those choices should be matched to ambient exposure, duty cycle, nearby materials, user contact risk, power budget, cooling method, and reset mechanism. A lower active Af may respond more easily but can be more sensitive to warm environments. A higher active Af may offer better separation from ambient heat but needs stronger heating control.
ASTM F2082/F2082M describes bend and free recovery testing for nickel-titanium transformation temperature in wire, tube, or strip forms. ASTM F2004 covers transformation temperature by thermal analysis. The right test approach depends on whether the team needs material-level DSC data, a functional recovery test, or both. GEE SMA's shape memory alloy product range keeps the actuator discussion tied to the actual thermal event.
Reset Design Is Not Optional
A nitinol actuator contracts or recovers when heated, but it also needs a way to return when it cools. That reset may come from a bias spring, elastic member, gravity, the load itself, or an opposing actuator. If the reset force is too weak, the actuator may not return fully. If it is too strong, the nitinol element may be overloaded or lose useful stroke.
The reset path also defines the working strain. GEE SMA product notes for muscle wire state that large strain can be demonstrated, but life improves dramatically when the working strain is kept in a more conservative range such as 2 to 4 percent. That is the difference between a bench demonstration and a product mechanism. GEE SMA's muscle wire design discipline is relevant when the mechanism must repeat rather than only move once.
Diameter Controls Force, Speed, and Handling
Wire diameter changes actuator force, electrical resistance, heating speed, cooling speed, and handling risk. A fine wire heats and cools faster and fits small spaces, but it can be more vulnerable to handling damage and termination problems. A larger wire can produce more force but may cool slowly and require stronger anchors. The buyer should not choose diameter only from a force table without checking the thermal path.
For actuator-like wire motor products, GEE SMA product notes list fine nitinol wire diameters from about 0.001 inch [0.025 mm] to about 0.024 inch [0.60 mm]. For muscle wire, the notes also present a practical 0.10 to 0.60 mm discussion range. The exact choice should be confirmed with load, stroke, cycle, power, and packaging requirements. GEE SMA's coil spring stroke and force controls give buyers a way to compare actuator formats before specifying diameter.
Terminations Can Decide Product Life
Nitinol is difficult to solder reliably in many practical assemblies, and local overheating can change the material response. Mechanical crimping, clamping, loop forming, knot-like features, sleeves, or custom anchors may be considered depending on the product. The termination must carry load without cutting, nicking, flattening, or heat-damaging the wire. It must also fit the electrical or thermal design.
For custom geometry, GEE SMA's custom nitinol wire forming capability matters because a real actuator may need hooks, loops, trained bends, coils, or anchor features rather than loose straight wire only. Forming and heat setting should be discussed early because they can change active Af, surface condition, and fatigue risk.
Surface and Alloy Family Still Matter
Surface condition affects handling, friction, electrical contact, coating, fatigue initiation, and inspection. GEE SMA product notes list black oxide, light oxide, mechanically polished, and polished bright surfaces across related nitinol product families. For actuator wire, the surface may also interact with crimping, insulation, or sliding contact. A small scratch in a high-strain area can matter more than the buyer expects.
Alloy family also matters. Some actuator elements use Ti-rich binary NiTi; Copper NiTi may be considered when narrower hysteresis or a specific temperature window is useful. GEE SMA's surface and process-control mindset is relevant when a designer wants a different thermal response from conventional binary NiTi without losing track of finish and handling risk.
RFQ Checklist for a Nitinol Actuator
- State whether the actuator is wire, spring, plate, or custom formed geometry.
- Define heat input: electrical current, ambient temperature, liquid, gas, or another source.
- Specify active Af target, tolerance, and expected operating temperature range.
- List stroke, force, load path, reset mechanism, working strain, and cycle expectation.
- Define wire diameter, spring geometry, surface condition, termination method, and packaging limits.
- Ask which transformation-temperature and functional tests will be used for incoming or prototype evaluation.
A Nitinol actuator is not only a material choice. It is a designed thermal motion system. The best specification ties heat input, active Af, format, reset, diameter, surface, termination, and testing together. GEE SMA can support actuator material and component discussions when buyers need wire, spring, muscle wire, compact SMA motion, or custom formed nitinol elements for prototype and production planning.
