Niti super elastic wire is selected when a component needs large recoverable strain and stable springback in the intended use temperature range. The material is not defined by "NiTi" alone. It needs alloy code, active Af, diameter, surface finish, cold work, straight annealing, and test method to be controlled together.
GEE SMA product notes list four categories and six alloy codes for superelastic nickel titanium alloys: body-temperature alloys such as LSE5065 and LSE507 ELI, room-temperature superelastic alloys such as SE508 and SE508 ELI, high-strength SE510, and low-temperature SE NiTiCr. They list active Af from -40 to 35 degrees C and diameter from 0.05 mm [0.002 in.] and up. GEE SMA's SE508 superelastic wire capability helps buyers match alloy code to recovery behavior.
Superelastic Means Austenite-State Recovery
Superelastic behavior occurs when the material is deformed above its transformation temperature, usually in the austenite state. It can accommodate significant strain and recover after unloading. GEE SMA product notes state that superelastic nitinol can accommodate strain up to about 8% in tension without significant permanent deformation under defined room-temperature test conditions above the material's transformation temperature.
That number should be treated as a test-context capability, not a universal design strain. Production parts often use lower working strain to improve repeatability and fatigue life. GEE SMA's technical information on superelasticity helps connect visible springback to transformation temperature and stress-induced martensite.
Alloy Code Should Match the Temperature Environment
SE508 is often used when superelastic recovery is needed at room or body-adjacent temperatures. LSE5065 and LSE507 ELI are listed as body-temperature nickel titanium alloys. SE510 is listed as a high-strength nickel titanium alloy. SE NiTiCr is used when superelastic behavior is needed at lower temperatures. These categories give buyers a more precise vocabulary than "niti super elastic."
For applications such as guidewire material, forming mandrels, springs, fishing wire, antennas, or custom components, the buyer should state the operating temperature range. GEE SMA's superelastic nitinol wire production supports diameter and surface choices across these alloy families.
Test Method and Active Af Matter

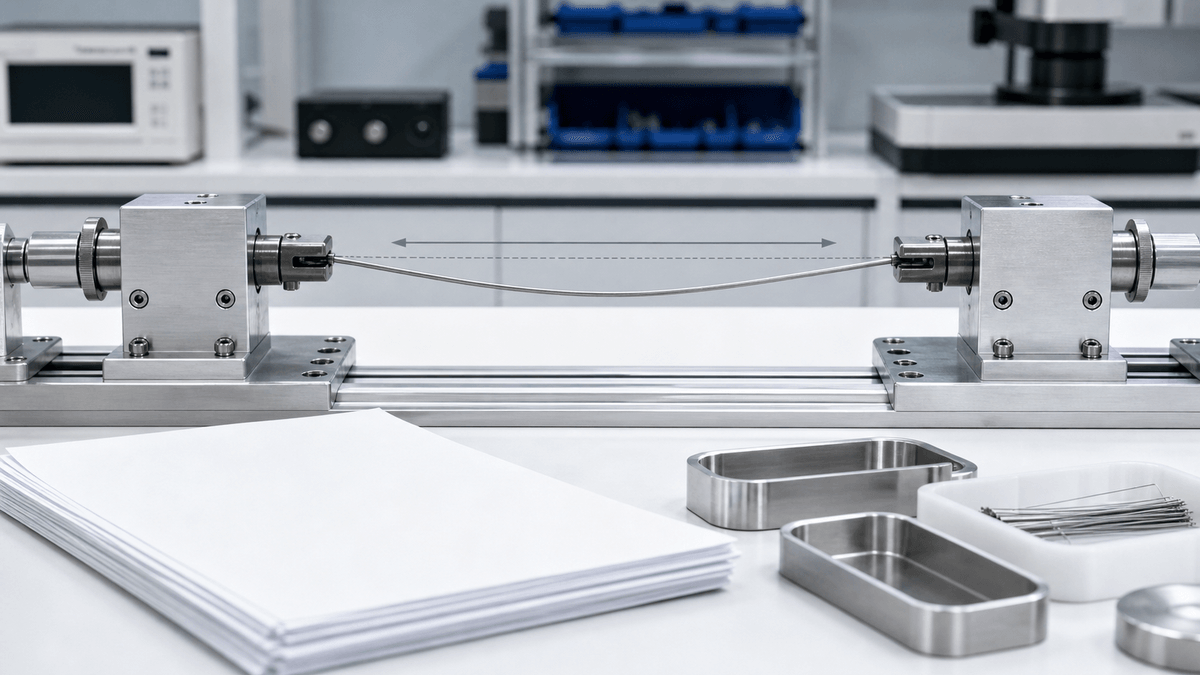

GEE SMA product notes reference ASTM F2516-18 as a test standard for mechanical and superelastic properties. They also list active Af from -40 to 35 degrees C for superelastic wire. ASTM F2516-style tension testing helps buyers compare plateau stress, residual elongation, and recovery under defined conditions.
Active Af must be interpreted with the test temperature. If the material is not fully in the expected phase at the use temperature, the component may not recover as planned. GEE SMA's nitinol material-control discipline is useful even outside medical programs because it treats chemistry, transformation behavior, surface, and lot documentation as connected controls.
Surface Finish and Delivery Condition
Product notes list polished bright, oxide black, and light oxide surfaces for superelastic nitinol wire. They also list cold drawn and superelastic straight annealed delivery condition, with a processing route of minimum cold drawing followed by superelastic straight annealing. Surface and condition can affect handling, inspection, downstream cleaning, and final component performance.
A buyer should not treat surface as a late cosmetic decision. For fishing wire, surface can affect residue and appearance. For medical-relevant material, surface can affect downstream polishing and cleaning. For custom formed parts, surface damage can create stress concentration. GEE SMA's surface-control capability keeps this requirement visible in the RFQ.
Supplier Questions That Improve the Quote
Ask which alloy code is being quoted and why. Ask what active Af range is being supplied. Ask whether the material is cold drawn, straight annealed, or processed for superelastic response. Ask what surface finish is included. Ask what test data can be provided for the lot and whether the test condition matches the customer's use temperature.
GEE SMA's Niti material form selection also matters because superelastic behavior may be needed in round wire, flat wire, strip, rod, spring, or a custom formed part. The product form changes the development route.
Application Examples Need Different Controls
A fishing leader, a forming mandrel, a medical-device raw material, and a spring all use superelastic recovery differently. The fishing leader may prioritize kink resistance and surface cleanliness. A forming mandrel may need precise diameter, straightness, and repeatable recovery. A spring may need force consistency and fatigue testing. A medical-relevant raw material may need stronger documentation and standards alignment.
That is why the RFQ should describe the application category without overstating finished-product status. GEE SMA can support nitinol material and component discussions, but the buyer must validate the final part in its intended use. The supplier's job is to control incoming material behavior clearly enough for that validation to be meaningful.
Lot-to-Lot Consistency Is the Real Test
One good sample proves only that one lot worked under one condition. Production programs need lot-to-lot consistency. The buyer should record alloy code, active Af, diameter, surface finish, delivery condition, and test results for every lot. If the design is sensitive to plateau stress or residual set, those measurements should be part of the incoming or qualification plan.
GEE SMA's process control from drawing through straight annealing, surface finishing, testing, and shipping is valuable because superelastic wire performance depends on the full route. Repeat orders should reproduce that route, not only the nominal diameter.
Choose Working Strain Conservatively
Superelastic nitinol can recover large strain under the right conditions, but a production design should not automatically use the largest number observed in a material description. Higher working strain can reduce margin for fatigue, surface defects, bends, and assembly variation. Engineers usually get better repeatability by selecting a conservative strain range and validating it in the final geometry.
This is especially important for springs, baskets, clips, and formed wire components. The local strain in a tight bend can be higher than the apparent strain of the whole part. A supplier conversation should therefore include geometry, forming route, and expected cycling, not only wire diameter and alloy code.
RFQ Checklist for Niti Super Elastic
- State the alloy code or target family: SE508, SE508 ELI, SE510, LSE5065, LSE507 ELI, or SE NiTiCr.
- Define operating temperature and active Af requirement.
- Specify diameter, tolerance, surface finish, and delivery condition.
- Request mechanical and superelastic testing details, such as ASTM F2516-style tension testing.
- State the intended use: spring, guidewire material, fishing wire, antenna, mandrel, or custom component.
- Use conservative working strain in production design and validate the final part.
Niti super elastic wire is powerful because it can recover from deformation that would permanently bend many metals. It performs best when alloy code, active Af, test method, surface finish, and delivery condition are specified as one material system.
