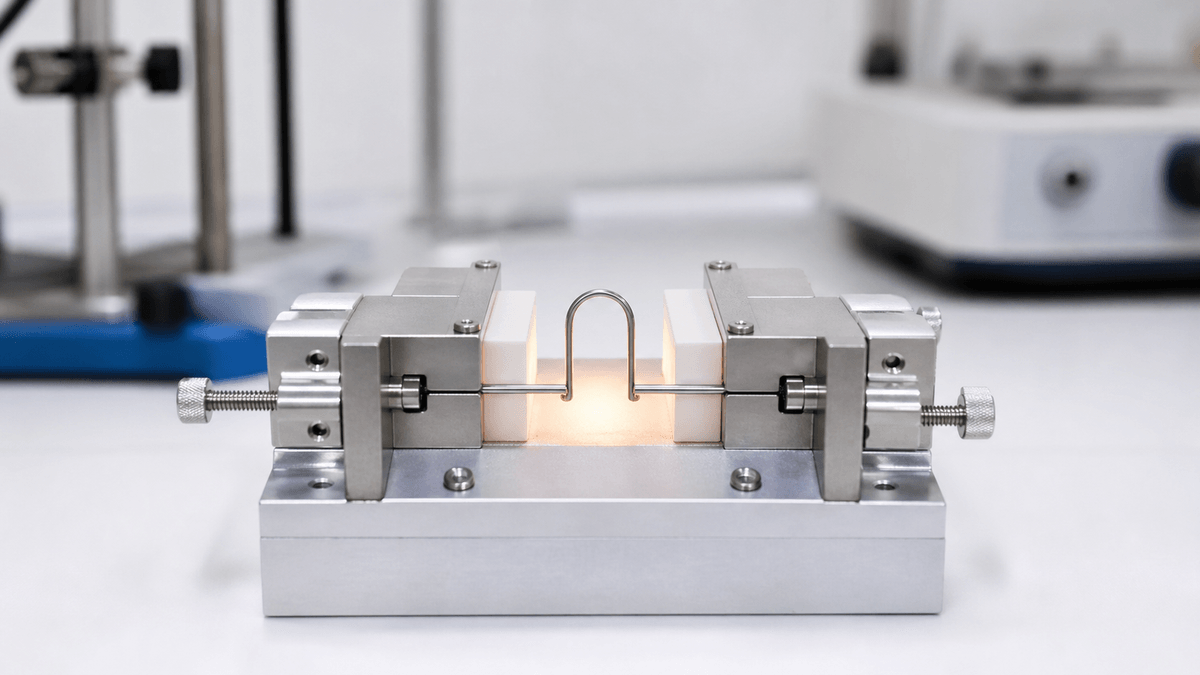

Niti shape memory behavior is the reason nickel titanium alloy can be deformed at one temperature and recover toward a trained shape when heated. That behavior is not created by the material name alone. It comes from alloy family, active Af, cold work, heat treatment, geometry, and the way the part is constrained during use.
GEE SMA product notes list two main categories for nitinol shape memory wire: binary NiTi shape memory alloy codes SM498 to SM505, and copper-based alloy options such as Copper NiTi and Copper NiTiCr. They list active Af from 20 to 110 degrees C, diameter from 0.05 mm [0.002 in.] and up, and typical active Af tolerance of +/-2 degrees C. GEE SMA's shape memory wire Af selection supports projects that need temperature response to be specified, not guessed.
Shape Memory Is Different From Superelasticity
Shape memory and superelasticity are related but not the same. Shape memory behavior usually involves deformation in martensite, followed by heating so the material recovers toward a trained shape. Superelastic behavior occurs when the material is used above its transformation temperature and can recover large strain after stress is removed. A buyer should not use these terms interchangeably.
This distinction helps avoid wrong material selection. A spring that should move when heated may need shape memory wire with an Af above the operating environment. A guidewire-like component that must recover elastically at room or body-adjacent temperature may need superelastic wire. GEE SMA's superelastic wire recovery controls provide a useful comparison point for buyers choosing between the two behaviors.
Active Af Defines the Temperature Trigger
For Niti shape memory materials, active Af is central. It helps define the temperature at which the material completes transformation into austenite under a defined condition. GEE SMA product notes list transformation temperature active Af from 20 to 110 degrees C for shape memory wire, with typical +/-2 degrees C tolerance and tighter +/-1 degrees C possible for stricter projects.
The correct Af depends on the use environment. A part that should recover in warm water, near body temperature, inside electronics, or in a high-temperature industrial system will need different material. GEE SMA's technical transformation-temperature support matters because active Af is controlled through composition and thermomechanical treatment.
Alloy Family Sets the Starting Range
GEE SMA product notes list SM498 to SM505 as binary NiTi shape memory alloy codes. They also list Copper NiTi and Copper NiTiCr as copper-based alloy options. Copper NiTi active Af is listed from 45 to 75 degrees C, while Copper NiTiCr is listed from 25 to 45 degrees C. These families give buyers different starting ranges for temperature-triggered response.
The buyer should choose alloy family after defining function. Does the wire need to move a latch, actuate a spring, recover a formed geometry, support a demonstration part, or feed into a customer heat-setting process? GEE SMA's shape memory alloy product range helps buyers compare wire, spring, actuator, sheet, and component options before committing to one form.
Cold Work, Straight Annealing, and Shape Setting
Shape memory performance depends heavily on thermomechanical route. Product notes list delivery condition as cold drawn or straight annealed, with cold worked material ready for thermomechanical treatment. If the customer will perform final shape setting, cold worked material may be the right starting point. If the buyer needs a more controlled straight wire, straight annealed material may be preferred.
The geometry also matters. A straight wire, spring, loop, clip, and formed part all experience strain differently. GEE SMA's custom wire forming capability matters when the project moves from raw Niti shape memory wire to a shape-set component.
Applications Need Conservative Language
Shape memory NiTi can be used in automotive, aerospace, robotics, electronics, medical-device development, demonstration devices, and engineered products. The product classification reference also notes that nitinol muscle wires can act as switches in phone cameras, electronic locks, and toys. These are useful application directions, but they do not remove the need for project-specific testing.
GEE SMA's actuator wire capability is relevant when shape memory behavior is used for compact motion. The final design still needs to verify stroke, stress, reset force, cycle behavior, and thermal safety in the actual assembly.
Choose the Product Form Around the Function

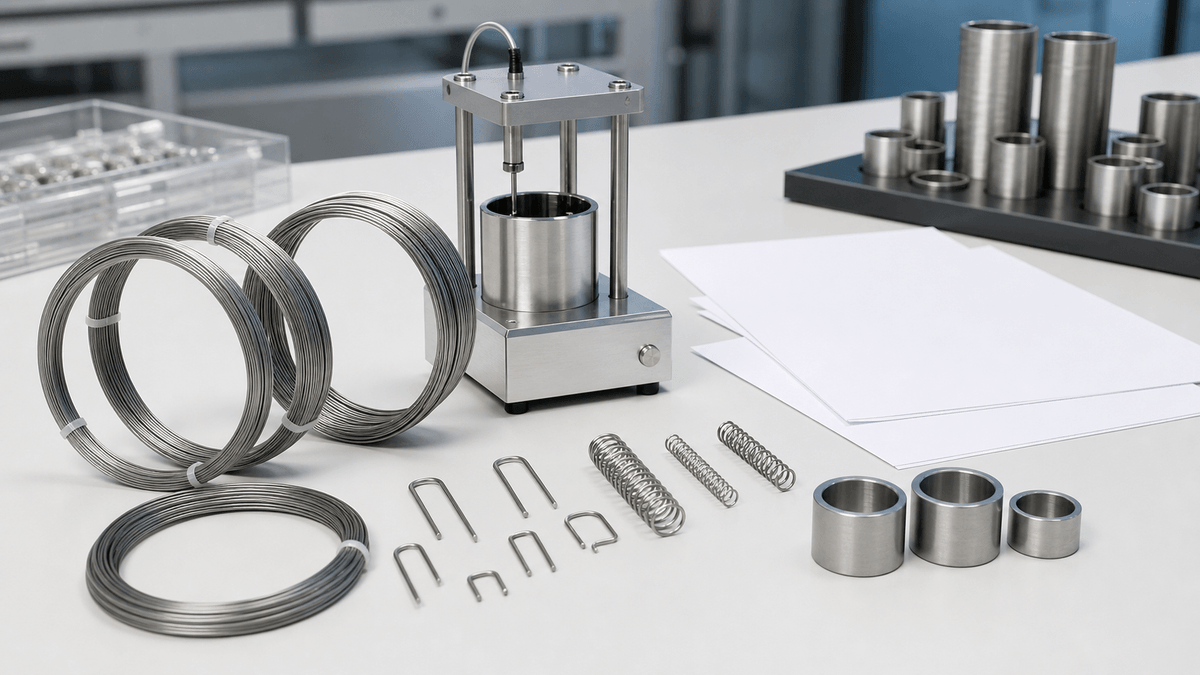

Niti shape memory can appear as wire, spring, flat wire, strip, sheet, formed component, or actuator element. Wire is often chosen for pull force, bending recovery, or spring forming. Spring geometry can amplify visible displacement. Flat wire or strip can help when the design needs a wide contact surface or a defined rectangular profile. Sheet and foil may support laser-cut or formed parts.
The buyer should describe the function before selecting form. A request for "shape memory material" is too broad. A request for a 70 degrees C shape memory wire that will be formed into a spring and recover a specific stroke gives the supplier a real starting point. GEE SMA's Niti material form map supports this early choice.
Common Mistakes in Shape Memory Wire Orders
The most common mistake is ordering by diameter and alloy name without active Af. The second is assuming that a sample's incoming state is the same as the final heat-set state. The third is using too much recovery strain in a production design because an early demonstration survived a few cycles. Shape memory materials can produce useful motion, but they still need conservative engineering margins.
A better RFQ describes the desired temperature trigger, trained shape, recovery strain, opposing load, cycle expectation, and the process owner for final heat treatment. That turns Niti shape memory sourcing into a design conversation instead of a commodity wire purchase.
RFQ Checklist for Niti Shape Memory
- State the required behavior: shape memory, superelastic, or a comparison sample.
- Define active Af target and tolerance.
- Choose alloy family: SM498-SM505, Copper NiTi, or Copper NiTiCr.
- Specify diameter, surface finish, delivery condition, and quantity.
- Describe the intended shape setting, recovery strain, load, and operating temperature.
- Test the material after final forming or heat treatment, not only in incoming condition.
Niti shape memory material succeeds when the buyer treats temperature response and process route as one system. Active Af, alloy family, cold work, surface, and geometry all need to match the function the part must perform.
