Niti actuator wire is a nickel titanium shape memory wire used to create motion from heat. In many products, the heat comes from electrical current through the wire. The wire contracts when heated through its transformation range, then cools and is extended by a spring, elastic member, load, or opposing mechanism. This makes it useful for compact mechanisms where a motor, solenoid, or gear train may be too large or noisy.

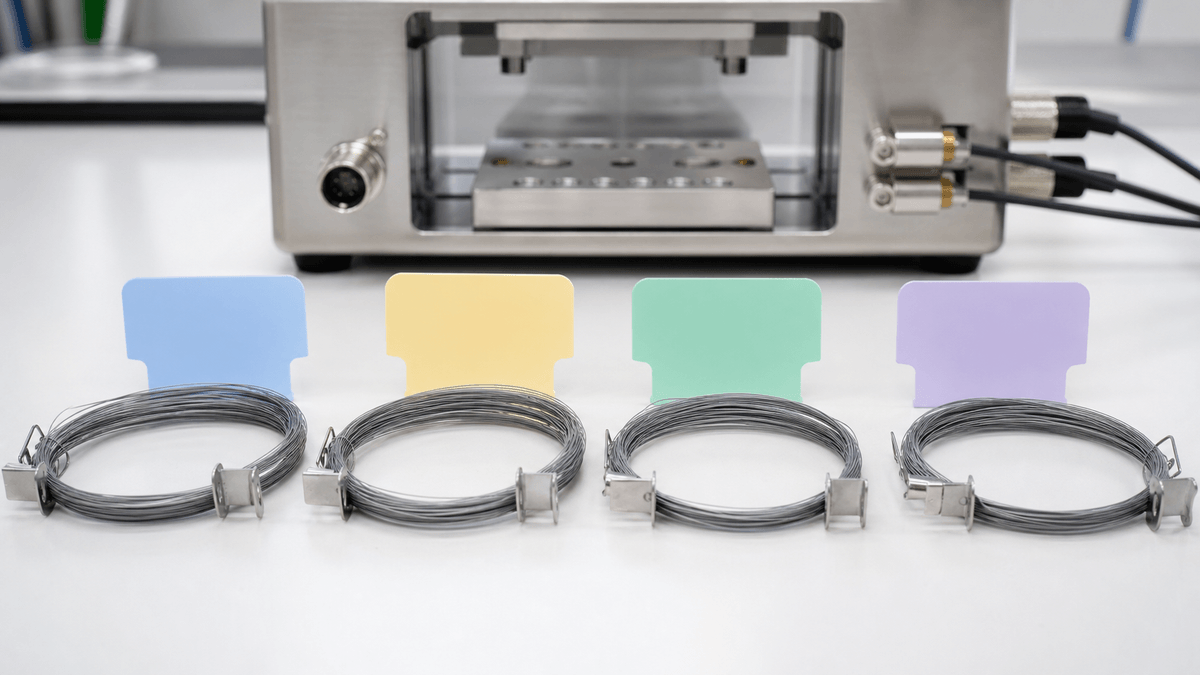

GEE SMA product notes also call this material nitinol muscle wire, nitinol actuator wire, shape memory actuator wire, SMA linear actuator, and linear two-way actuator wire. They list active Af options at 70, 90, 110, and 130 degrees C. GEE SMA's actuator wire capability fits electronic locks, phone camera switches, toys, robotics, and other small motion designs.
Electrical Input Is Only the Heat Source
Niti actuator wire is often powered electrically, but the motion is thermomechanical. Current heats the wire. Heat changes the alloy phase. The phase change produces contraction. If the design cools the wire and resets it properly, the mechanism can repeat the motion.
This means an actuator wire RFQ should include more than voltage or current. The supplier needs to know diameter, active Af, wire length, strain, load, surface, and expected cycling. The design team needs to test the wire in the actual housing, because metal frames, plastic parts, airflow, and nearby electronics all change heating and cooling behavior. GEE SMA's SMA motion material selection helps buyers connect wire data to the real mechanism.
Active Af Sets the Activation Margin
Active Af is the first temperature number to control. A lower Af wire may activate more easily, but it can be more sensitive to warm environments. A higher Af wire may provide more temperature margin, but it may require more power or expose nearby components to higher heat. Product notes list 70, 90, 110, and 130 degrees C actuator wire options, which gives designers several starting points.
The right Af depends on ambient temperature, product enclosure, allowable surface temperature, duty cycle, cooling path, and reset time. GEE SMA's transformation-temperature support matters because active Af is controlled by alloy chemistry and thermomechanical treatment, not by wire diameter alone.
Diameter Changes Resistance, Force, and Cooling
Diameter strongly affects actuator behavior. Fine wire heats and cools quickly, but generates less force. Larger wire can pull harder, but it requires more current and usually cools more slowly. GEE SMA product notes place nitinol muscle wire in the fine-wire range up to about 0.60 mm, with small diameters used for compact mechanisms.
A buyer should not select diameter only by space constraint. The diameter must match the required pull force, the available power, the allowable cooling time, and the desired stroke. GEE SMA's fine nitinol wire production supports this because diameter tolerance and surface condition can affect resistance and handling.
Working Strain and Reset Force Decide Life
A nitinol actuator wire may tolerate impressive demonstration strain for a few cycles, but production designs usually need lower working strain for repeatability. Many design programs keep working strain in a narrower range than the maximum recoverable strain. The reset force must extend the wire during cooling without overloading it during heating.
That is why the mechanism matters as much as the wire. A short wire that must move a long distance sees higher percentage strain. A stiff bias spring can make reset fast but increase stress. A slow cooling path can make the motion feel sluggish. GEE SMA's muscle wire motion capability is strongest when the buyer controls stroke, strain, and reset force together.
Surface and Termination Need Early Testing
Product notes list polished bright and oxide black surfaces for actuator wire. Surface choice can affect visual appearance, handling, friction, and attachment method. Termination is often a bigger practical challenge than early prototypes suggest. Nitinol does not behave like copper electrical wire for joining, so many designs use crimping, clamping, loops, hooks, or mechanical capture.
GEE SMA's custom wire forming capability helps when a straight pull wire needs attachment geometry, formed ends, loops, or compact routing. Those features should be tested with real load and cycle conditions.
A Prototype Sequence That Reduces Rework

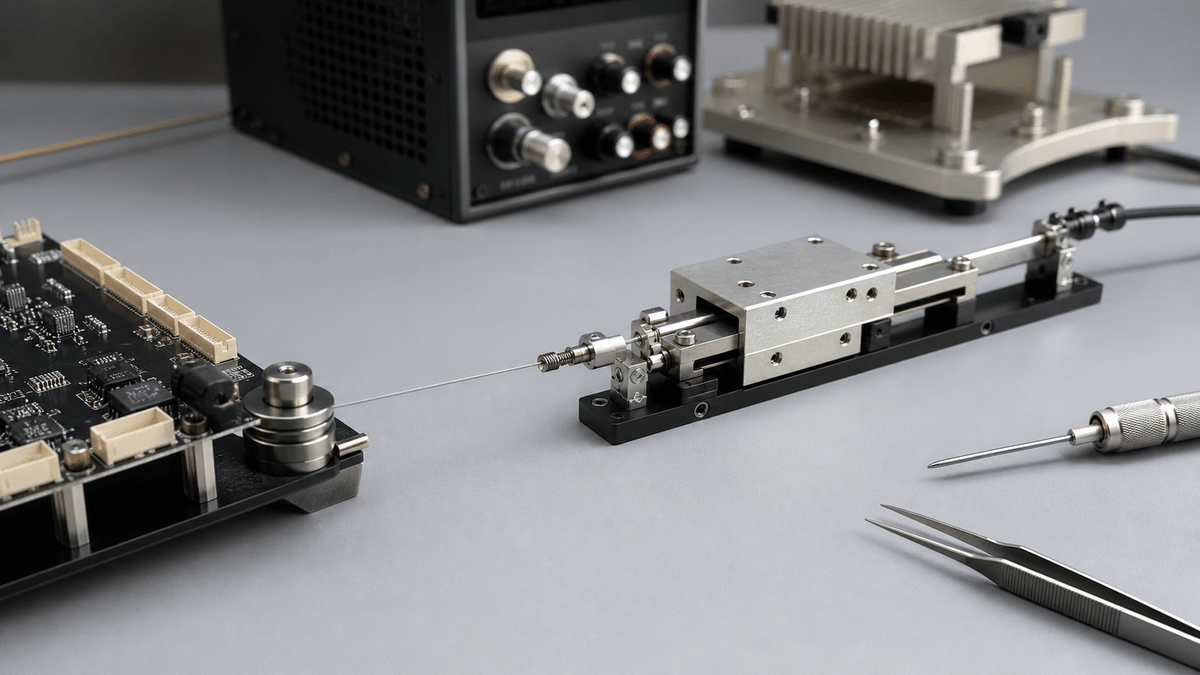

A useful actuator prototype sequence starts with a simple straight-wire test at the intended active Af and diameter. The team measures contraction, current, heating time, cooling time, and reset force. The second step places the same wire in the real mechanism, where enclosure, airflow, and heat sinking change behavior. The third step tests repeated cycles at the expected duty cycle.
This sequence keeps the design grounded. If the bench test works but the assembly fails, the issue may be cooling, routing, termination, or strain rather than alloy selection. If both bench and assembly tests fail, the team can revisit active Af, diameter, or force requirement before investing in custom formed ends or tooling.
Control Electronics and Thermal Design Belong Together
The control circuit should not be designed separately from the wire. Current input, pulse length, ambient temperature, wire length, and thermal mass all affect activation. A wire that moves quickly in open air may cool too slowly inside a sealed plastic enclosure. A design that uses too much current may overheat nearby parts even if the first motion looks strong.
Engineers should measure actual wire temperature and mechanism response, not only electrical input. Niti actuator wire is a compact motion element, but it rewards careful thermal design.
When to Use Wire, Spring, or Formed Ends
A straight actuator wire gives the simplest linear pull and is often the best first prototype. A spring made from shape memory wire can create a larger visible stroke in a compact space, but the spring geometry adds force and fatigue variables. Formed ends, loops, or hooks can simplify assembly, yet they add stress concentration points that must be tested.
The best choice depends on the mechanism. A tiny lock release may need a straight pull wire with a secure crimp. A small optical switch may need compact routing and very low mass. A robotics mechanism may need repeatable stroke under a known load. Matching product form to function is as important as choosing the active Af.
RFQ Checklist for Niti Actuator Wire
- Specify active Af target: 70, 90, 110, 130 degrees C, or project-specific requirement.
- Define diameter, tolerance, length, surface finish, and delivery package.
- Describe the load, stroke, reset method, and working strain.
- Measure current, voltage, heating time, cooling time, and maximum wire temperature in the real assembly.
- Test termination method before scaling the mechanism.
- Separate a one-cycle demo from repeatable product behavior.
Niti actuator wire is powerful because it makes quiet, compact motion possible with very little hardware. It succeeds when the buyer treats it as a thermomechanical material system: active Af, diameter, strain, reset force, surface, and cooling path all have to fit the same design.
