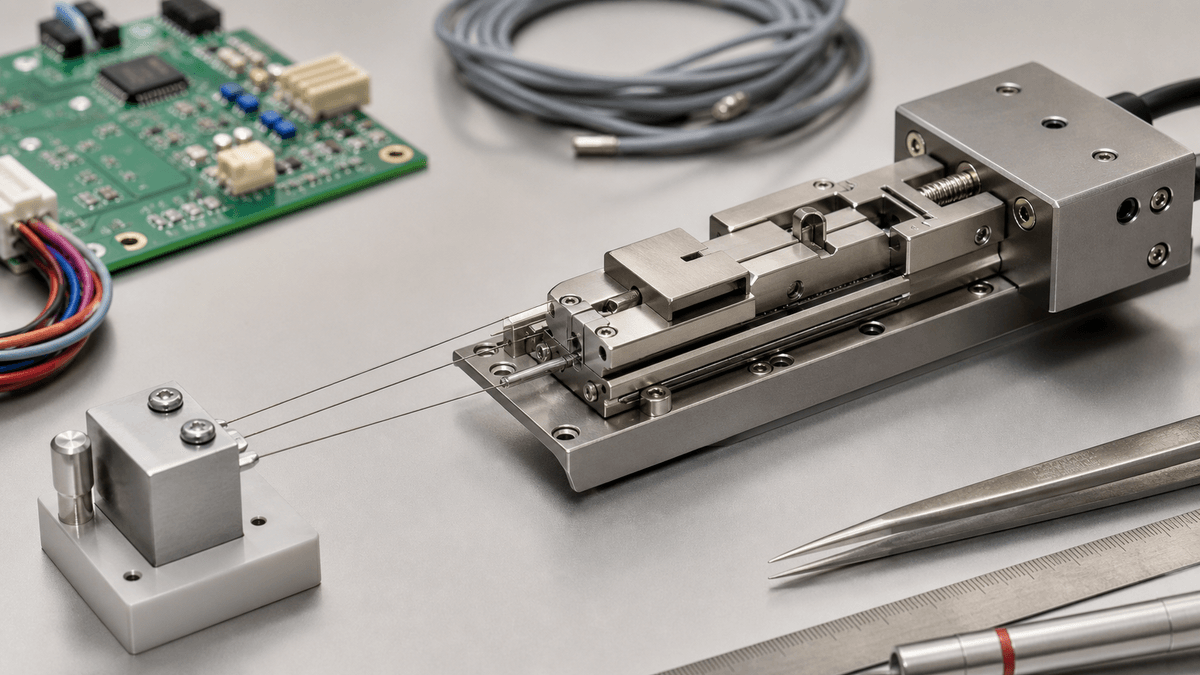

Actuator wires turn heat into movement. That simple idea is why engineers use shape memory alloy wire in electronic locks, small switches, miniature camera mechanisms, toys, robotics, latch release systems, vents, medical-device development fixtures, and other compact assemblies where motors or solenoids may be too large, noisy, heavy, or complex. The wire contracts when heated above its transformation range, then cools and can be reset for the next stroke.
The challenge is that actuator wires are not ordinary resistance wire. They are functional nitinol materials whose movement depends on alloy family, diameter, active Af temperature, stress, strain, electrical input, cooling path, surface condition, and the way the mechanism resets. GEE SMA's actuator wires are positioned for compact motion designs that need fine-diameter SMA material, specified transformation temperatures, and practical production support.
The Motion Is Thermal, Even When the Input Is Electrical
Many first-time users describe actuator wire as an electrical component because current is often used to heat it. Electrically, the wire behaves like a resistive load. Mechanically, it behaves like a phase-changing alloy. The useful contraction comes from the transformation from martensite to austenite, not from electromagnetic force. This distinction matters because electrical current, heat sinking, ambient air movement, duty cycle, and mounting design all affect how the wire moves.
GEE SMA public product information describes actuator wire as a fine nitinol wire that can contract by roughly 2% to 6% of its length when heated or electrically activated. Dynalloy's Flexinol design data uses a similar working range and cautions that stress, strain, and temperature strongly influence repeatable life. A buyer should therefore specify both the wire and the mechanism environment instead of treating diameter alone as the design.
GEE SMA's actuator wire and spring motion guidance is useful when comparing straight wire contraction with spring-based SMA motion. A straight wire is excellent for linear pull. A spring can create larger visible displacement from a smaller amount of material, but it adds geometry and force considerations.
Diameter Sets Resistance, Force, and Cooling Behavior

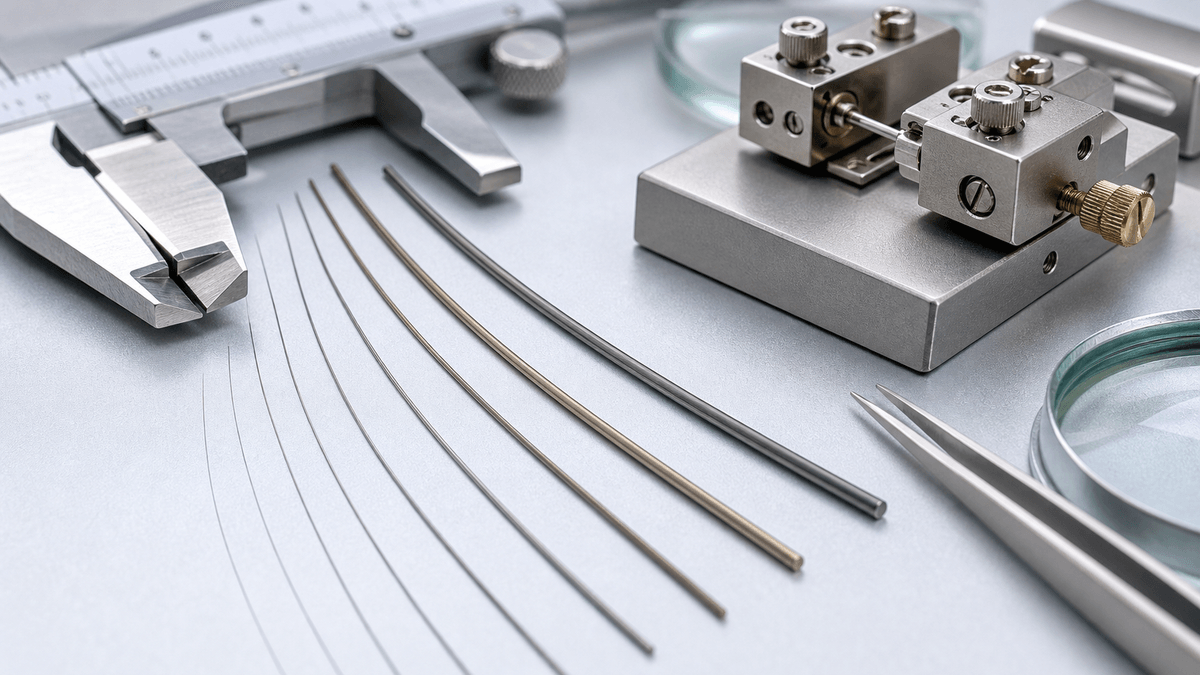

In actuator wire, diameter is not just a packaging dimension. Smaller wires heat and cool faster, need less force to deform, produce less pull force, and fit into smaller mechanisms. Larger wires can generate more force, but they generally require more current and take longer to cool unless the design actively removes heat. That is why two wires with the same alloy and active Af can behave very differently in the final device.
GEE SMA product notes and public data list actuator or muscle wire sizes in the fine-wire range, with example diameters from about 0.05 mm up to 0.60 mm. Product data also connects diameter to resistance, heating pull force, cooling deformation force, and approximate one-second contraction current. These values should be treated as engineering starting points, not universal guarantees, because mounting length, preload, ambient temperature, heat sinks, and airflow change the final response.
GEE SMA's broader nitinol wire capability supports this specification work because the same RFQ may need diameter, tolerance, surface, alloy code, and packaging detail. For miniature devices, small dimensional changes can alter resistance enough to affect current targets and control electronics.
Choose Active Af Around the Real Operating Window
Active Af is one of the first specifications to confirm. If the wire transforms too close to ambient temperature, it may respond when it should remain quiet. If it transforms too high, the electronics may require too much power, the duty cycle may become inconvenient, or nearby materials may see more heat than expected. The right active Af depends on the environment, the reset time, the allowable touch temperature, the control method, and the desired stroke speed.
GEE SMA actuator wire product information lists transformation temperature options including 70 degrees C, 90 degrees C, 110 degrees C, and 130 degrees C. The local product classification reference also notes that higher-temperature 110 degrees C and 130 degrees C options are part of GEE SMA's specialty capability. This can matter when a mechanism must avoid accidental activation in a warm environment or when a higher reset margin is needed.
GEE SMA's technical information on active Af and transformation behavior reinforces why the requested Af should be written into the purchase specification. Chemistry, cold work, heat treatment, and testing must work together to produce the target response.
Working Strain Is Where Many Prototypes Fail
An actuator wire can often be stretched more than a well-designed mechanism should use in routine operation. Product notes for nitinol actuator wire may mention 6% to 8% stretch in limited conditions, but long-life designs generally run at lower working strain. A practical engineering target is often in the 2% to 4% range when repeatability is more important than maximum stroke. The best value depends on stress, temperature, cycle count, and the acceptable loss of stroke over time.
This is a place where early prototypes can be misleading. A test rig may work for a few cycles at a high strain and look impressive. Then the production design loses stroke, overheats the wire, or fails to reset consistently. The RFQ should describe the expected stroke, wire length, bias force, load, duty cycle, and cycle life target. A supplier cannot responsibly choose material only from a desired pull distance.
GEE SMA's muscle wire motion capability fits projects where the buyer values silent movement, low weight, and compact layout, but the final mechanism still needs proper strain control and thermal testing.
Reset Design Is Part of the Material System
The actuator wire pulls as it heats. To return to its lower-temperature length, it needs a reset path. Some mechanisms use a bias spring. Some use gravity, an elastic member, a flexible hinge, a second SMA element, or the load itself. GEE SMA public product information notes that nitinol muscle wire can elongate at low temperatures, but the final mechanism must still provide the right restoring condition without overstressing the wire.
Reset force should be strong enough to extend the wire during cooling, but not so strong that the wire is overloaded during heating. The more compact the product, the more carefully this balance must be tested. In small consumer, locking, optical, or robotic assemblies, packaging space may push the designer toward shorter wire lengths. Shorter lengths make the same stroke demand a higher percentage strain, which may reduce repeatability.
GEE SMA's custom wire forming capability matters when the actuator cannot be a simple straight pull wire. Loops, hooks, bends, attachment ends, or preformed shapes can simplify assembly, but they also change stress concentration and handling requirements.
Surface, Termination, and Handling Details
Actuator wire surfaces are commonly specified as polished bright or oxide black. Surface condition affects handling, appearance, friction, and how the wire interacts with crimping, solderless attachment, adhesive capture, or mechanical clamping. It is usually better to design a mechanical termination than to assume ordinary soldering will be reliable, because nitinol does not behave like copper wire in joining operations.
Packaging also matters. Fine actuator wire can kink, tangle, or be damaged if it is handled like generic wire. Spool selection, minimum bend radius, inspection under magnification, and clean handling should be part of the development plan. For production, the supplier and buyer should agree on lot marking, quantity, surface, diameter tolerance, and the test condition used for transformation temperature.
GEE SMA's shape memory alloy product range helps when an actuator concept evolves from raw wire into a spring, formed element, or assembled component. That evolution is common: the first proof of concept may use straight wire, while the final product needs more controlled geometry.
Prototype Checklist for Actuator Wires
- Specify the wire diameter, tolerance, surface condition, and delivery package.
- Select active Af based on the product's real ambient and activation temperatures.
- Define the available wire length and calculate stroke as a percentage strain.
- Measure current, voltage, heating time, cooling time, and maximum wire temperature in the actual assembly.
- Choose a reset method that extends the wire without overloading it.
- Test repeatability at the intended duty cycle, not only in a one-cycle demonstration.
- Review end attachment, insulation, routing, and protection from sharp edges.
Actuator wires are attractive because they can make small products feel elegant: quiet motion, fewer parts, compact packaging, and direct electrical control. They succeed when the wire is treated as a thermomechanical material, not as a simple electrical part. The right supplier discussion starts with diameter and Af, then moves quickly into strain, stress, reset force, cooling path, and production handling.
