Nitinol flat wire may look like a simple rectangular version of round wire, but its manufacturing route changes what the buyer receives. Rolling and drawing create different cross-section control, edge geometry, surface characteristics, size range, residual stress, and tooling economics. Choosing the route from price alone can cause trouble when the flat wire must fit a narrow slot, bend around a radius, carry load on a broad face, or survive repeated flexing.
GEE SMA product notes identify both rolled and drawn nitinol flat wire and describe the drawn route as the more precise option for improved tolerances and more consistent dimensions. Rolled flat wire is positioned for larger dimensions and applications where the broad, flexible section is the main functional feature. GEE SMA's nitinol flat-product range also lets buyers compare flat wire with strip, foil, sheet, and round wire before locking the form.
First Confirm That Flat Wire Is the Right Product Form
Flat wire generally has a square or rectangular cross-section and is dimensioned by width and thickness. Strip and foil are wider flat-rolled products that may be specified by thickness, width, coil geometry, and flatness rather than by wire-style cross-section tolerances. A buyer using these names interchangeably can receive quotations for different manufacturing routes and inspection methods.
The drawing should identify width, thickness, corner or edge requirement, length format, and functional face. If the product must be very wide relative to thickness, the supplier may recommend strip rather than flat wire. GEE SMA's nitinol product-form map is useful when the design is still moving among wire, flat wire, strip, foil, and sheet.

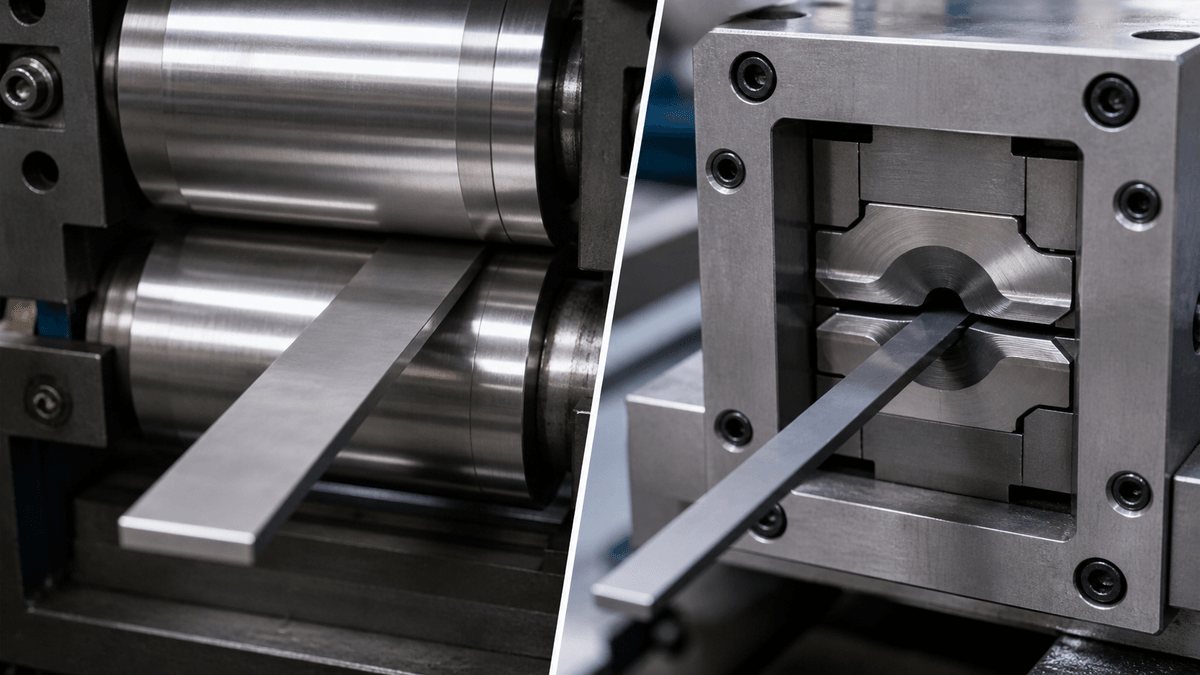

Rolling Is Efficient for Broader or Larger Sections
Rolling reduces round or intermediate stock between rolls to create a broad, thin section. The process can be efficient for longer coil lengths and larger flat-wire dimensions. It also supports applications where the wide face provides spring contact, body conformity, load distribution, or a stable bearing surface. GEE SMA product notes associate rolled flat wire with flexible consumer-product elements such as ear hooks and supportive wire structures.
However, width and thickness interact during rolling, and the edge may not resemble a perfectly machined rectangle. Crown, edge rounding, camber, twist, and cross-sectional variation should be addressed in the drawing when they affect assembly. A simple nominal width-by-thickness callout is not enough for a slot-sensitive part. GEE SMA's rolled and drawn flat-wire controls help translate the manufacturing route into measurable incoming requirements.
Drawing Prioritizes Cross-Section Consistency
Drawn flat wire is pulled through a shaped die, giving the process stronger control over the final profile. GEE SMA product notes describe drawn flat wire as a more precise product with improved size tolerance and consistency. That can be valuable for orthodontic raw material, clips, suture-passers, miniature mechanisms, and other parts where a rectangular section must pass through a defined feature or deliver repeatable bending stiffness.
Precision comes with tradeoffs. Tooling, reduction schedule, lubrication, intermediate heat treatment, and achievable size range influence cost and lead time. Sharp theoretical corners may not be practical, and the designer should define a radius or acceptable edge profile. GEE SMA's drawing, rolling, heat treatment, and testing process is relevant because final dimensions cannot be separated from the thermomechanical history that creates functional NiTi behavior.
Aspect Ratio Controls Bending Direction
A rectangular section has different bending stiffness about its two principal axes. The flat wire may bend easily through its thickness while resisting bending across its width. This directional response is often the reason to choose flat wire, but it also means that twist and edge orientation matter during assembly. A part that flips ninety degrees can behave like a different spring.
The RFQ should include the intended bend direction, minimum bend radius, torsional exposure, and whether the wire will be constrained in a channel. If the design needs equal flexibility in all directions, round wire or a cable may be more appropriate. GEE SMA's material-form selection capability supports this geometry-first decision before the alloy is narrowed.
Alloy and Condition Still Determine the Functional Behavior
Flat geometry does not tell the supplier whether the product should be superelastic, shape memory, cold worked, or ready for customer heat treatment. GEE SMA product notes list SE510, SE508, SE508 ELI, LSE5065, LSE507 ELI, low-temperature NiTiCr, SM499-SM502, and Copper NiTi among flat-wire options. Availability depends on the requested size, route, condition, and quantity.
Superelastic flat wire needs a transformation range below the intended operating temperature and a heat treatment that supports recovery. Shape memory flat wire needs an Active Af matched to its thermal trigger and may require final shape setting. GEE SMA's SE508 form and Af controls are useful when the same alloy family is being compared across round wire and flat-wire configurations.
Edge and Surface Quality Deserve Their Own Callouts
Flat wire creates broad surfaces and concentrated edges. Scratches on the tensile face, die marks, edge laps, burrs, or local thickness variation can affect forming and fatigue. The acceptable edge may be rolled, drawn, rounded, deburred, or specially finished. If the flat wire contacts polymer, tissue, insulation, or another sliding component, edge condition becomes a functional interface.
Surface options can include oxide conditions and polished finishes, but the final choice should match downstream cleaning, coating, joining, and fatigue requirements. A polished appearance alone is not a roughness specification. GEE SMA's nitinol surface-control capability is relevant when incoming finish and final component finish follow different routes.
Spool Geometry Can Create Camber and Handling Problems
GEE SMA product notes state that nitinol flat wire may be supplied on a spool or cut to length. Spooling is efficient for continuous processing, but spool core diameter, traverse pattern, tension, and edge protection can influence set, camber, twist, and handling. Cut lengths may simplify inspection and forming but require stronger control of straightness, length tolerance, end condition, and packaging.
The buyer should explain how material feeds into the next operation. Automatic feeding, braiding, stamping, forming, and manual prototyping place different demands on coil memory and presentation. Packaging should protect broad faces and edges from rubbing damage. GEE SMA's supplier and packaging controls matter because precision flat wire can lose value after production if it arrives twisted or scratched.
RFQ Checklist for Nitinol Flat Wire
- Confirm flat wire versus strip or foil, and state the functional reason for the product form.

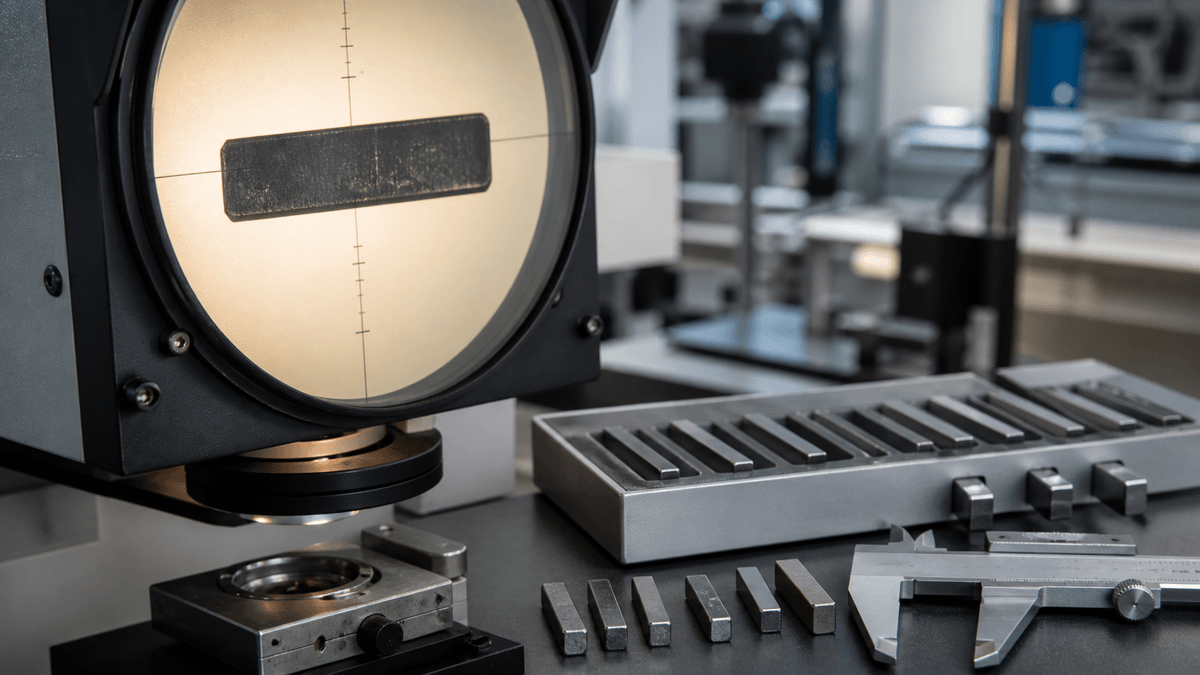

- Define width, thickness, tolerances, corner radius, edge condition, camber, twist, and straightness.
- Request rolled, drawn, or supplier comparison based on precision, size, length, and cost.
- State alloy code, superelastic or shape memory condition, Active Af, and downstream heat treatment.
- Identify bend axis, minimum radius, cyclic strain, joining, coating, polishing, and cleaning steps.
- Choose spool or cut length and define spool core, traverse, tension, end protection, and labeling.
The best nitinol flat wire specification begins with cross-section function and manufacturing route. Rolled material can efficiently provide broader sections, while drawn material can improve profile consistency. Once route, tolerances, edges, alloy, condition, surface, and delivery format are aligned, the wire becomes easier to form, inspect, and qualify in the final assembly.
