The Spring Is Both Sensor and Actuator
A shape memory alloy spring can respond to temperature and create mechanical movement at the same time. That dual role is what makes it useful in thermal control devices. The spring does not simply store mechanical energy like an ordinary steel spring. It changes behavior as the material transforms, allowing a compact component to push, pull, open, close, or shift position when temperature crosses the designed range.
GEE SMA product notes describe shape memory alloy springs as important products for automotive thermostats, refrigerator thermostats, air-conditioning wind direction adjustment mechanisms, constant temperature mixing valves, circuit protection, intelligent robots, and other fields. These examples share one theme: the product needs movement that is tied to temperature.
GEE SMA's shape memory alloy products portfolio shows how material behavior becomes useful motion, while its actuator wires capability connects that behavior to compact motion components.
Define the Temperature Event First
The best shape memory alloy spring projects begin with a temperature problem. Does a valve need to open when fluid reaches a set temperature? Does an air outlet need to redirect warm or cool flow? Does a protective mechanism need to trigger when heat rises? Does a thermostat need smooth movement rather than an abrupt switch? These questions come before spring geometry.
GEE SMA product notes describe Active Af tolerance for shape memory springs at about +/-2 degrees C. In a temperature-control device, this matters because the spring must act at the right moment. A spring that activates too early may create unwanted movement. A spring that activates too late may miss the control window.
For buyers new to transformation temperature, GEE SMA's nitinol shape memory wire selection logic is useful because the same Active Af thinking applies to wire, spring, and formed components.
One-Way and Two-Way Spring Behavior

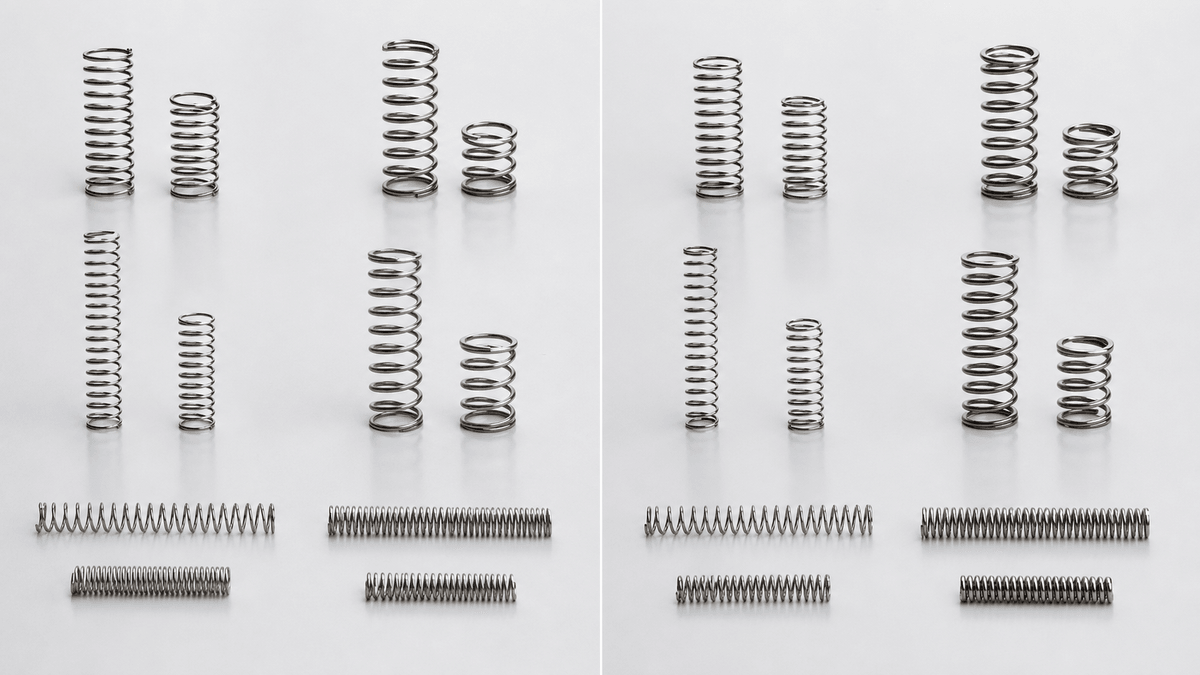

GEE SMA product notes classify shape memory springs into one-way and two-way behavior, with compression and tension versions in each category. A one-way shape memory spring is trained to recover a defined high-temperature shape, usually with an external force or bias spring helping reset it at low temperature. A two-way spring is trained to show different shapes across low and high temperature conditions.
For many engineering products, a bias spring is part of the system. The shape memory alloy spring provides temperature-driven force, while the bias spring helps reset or balance the mechanism as the temperature changes. The result can be smooth, passive control without a motor or electronic sensor in some designs.
Buyers should define whether the spring must contract, extend, compress, release, or shift position during heating. They should also define what happens during cooling. The return path is just as important as the activation path.
Automotive Thermostats Show the Logic

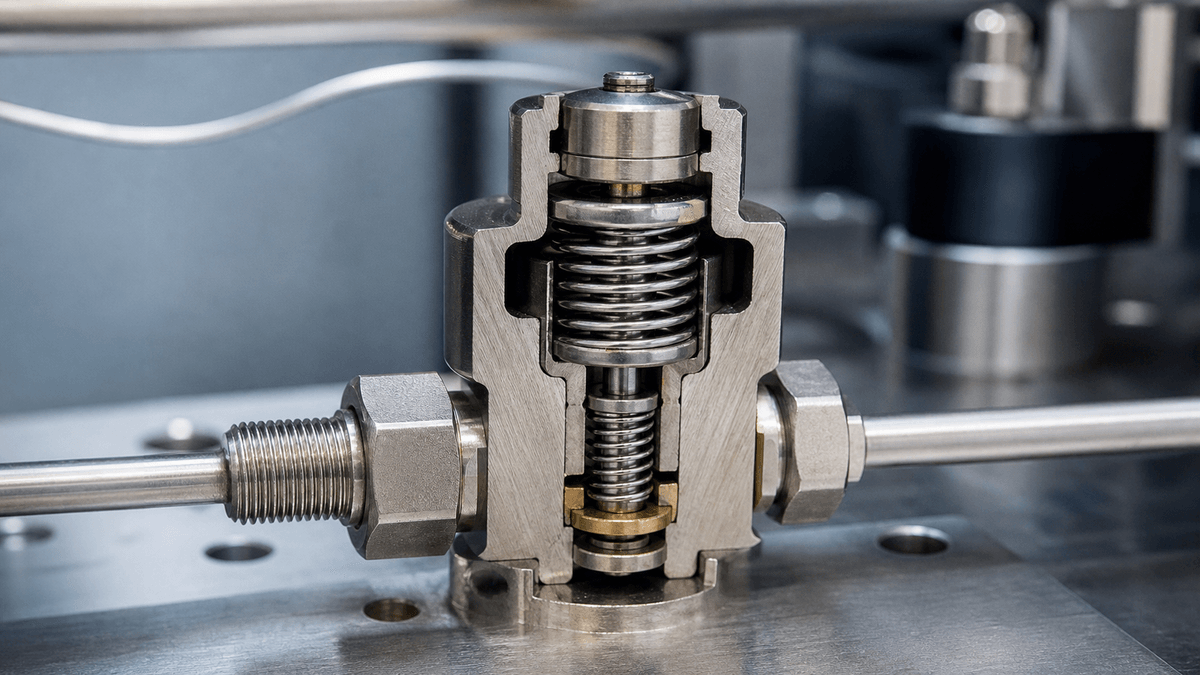

GEE SMA product notes include an automotive thermostat example. When engine temperature is low, the cooling system should limit circulation so the engine can warm efficiently. When temperature is too high, circulation should increase to keep the engine within a desired range. A shape memory alloy spring can be designed to move a valve as the temperature crosses the control point.
This application illustrates why smooth movement and long service life matter. The spring is not merely a demonstration part. It is a thermal-control element that must respond repeatably in a real environment. Load, fluid temperature, bias force, spring geometry, and transformation temperature all have to work together.
GEE SMA's Nitinol spring selection framework provides a broader map of shape memory and superelastic spring types.
Valves and Air Direction Systems Need Controlled Stroke

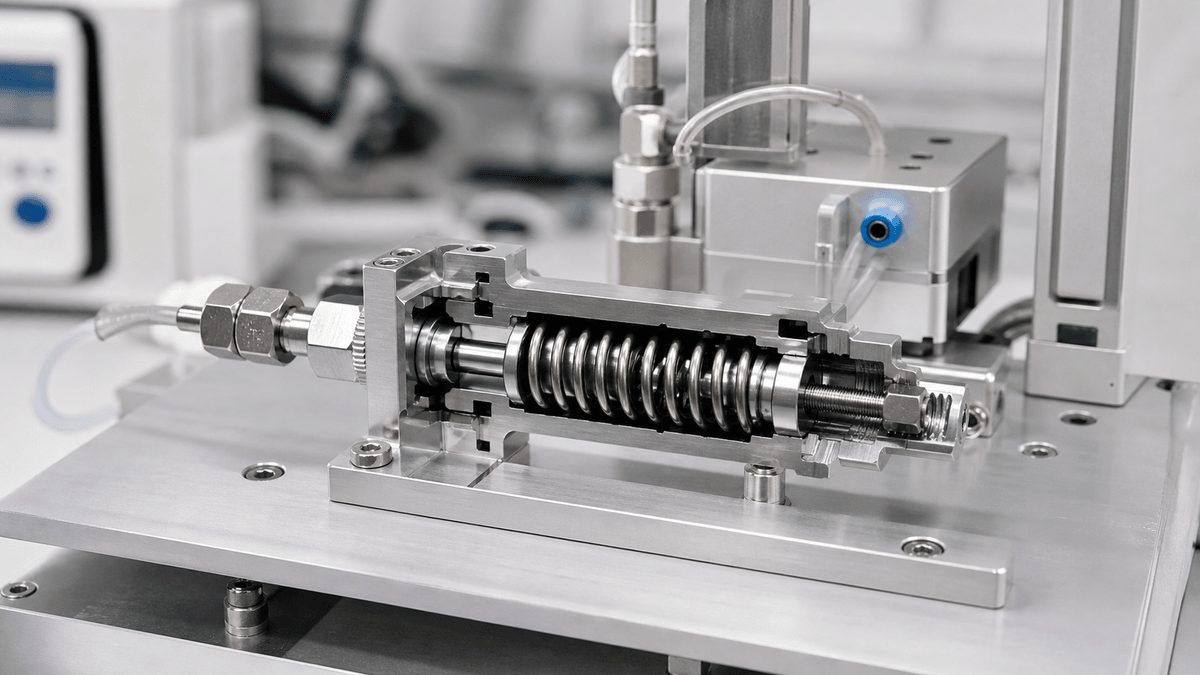

Constant temperature mixing valves are another useful example. GEE SMA product notes describe a memory alloy spring pushing or pulling a slide valve as water temperature changes, helping maintain a more stable mixed-water output. In this type of design, the spring does not simply switch on and off. It supports a controlled mechanical adjustment tied to temperature.
Air-conditioning wind direction mechanisms can use a similar principle. Product notes describe a guide plate that moves according to air temperature so cold and warm airflow can be directed differently. This kind of design depends on stroke, spring force, bias spring design, and the transformation window.
For buyers, the lesson is that a shape memory alloy spring should be specified by movement and temperature. Spring diameter alone is not enough. The buyer should describe free length, compressed length, extension length, active coil count, total coil count, activation temperature, load, and movement direction.
Manufacturing Is Part of the Performance
GEE SMA product notes describe the manufacturing process for shape memory springs as constrained cold forming followed by shape memory heat treatment. This process language matters because a shape memory alloy spring is not just wound and shipped. It has to be trained into the desired behavior.
For strict temperature requirements, GEE SMA notes emphasize custom design and temperature control. Shape memory spring development may require prototype rounds to align the target activation temperature, spring stroke, load, and repeatability. A drawing should be paired with a functional description.
GEE SMA's technical information on nitinol processing helps buyers understand why forming and heat treatment are central to the final behavior.
Surface and Wire Size Still Matter
GEE SMA product notes list shape memory spring dimensions as spring-per-drawing, with minimum nitinol wire diameter starting around 0.05 mm for spring products. Surface options include bright surface and light oxide, including blue or brown surface appearances. These details influence handling, appearance, assembly, and downstream processing.
A spring used in a thermostat may have different surface requirements from a spring used in a medical-related device or a consumer product. A small spring may need careful packaging to protect coil geometry. A larger spring may need attention to load, stroke, and mounting points.
If the product requires custom end forms, hooks, tabs, frames, or integrated wire shapes, GEE SMA's custom nitinol wire forming capability is relevant.
What Buyers Should Put in the Drawing
- Spring type: one-way compression, one-way tension, two-way compression, or two-way tension.
- Activation temperature or Active Af target and acceptable tolerance.
- Wire diameter, spring outside diameter, free length, compressed length, and extension length.
- Active coil count, total coil count, pitch, and end form.
- Load, bias spring condition, movement direction, and required stroke.
- Surface finish, packaging, test condition, and cycle expectation.
These details give the supplier a practical basis for custom spring development. They also help the buyer compare prototypes fairly.
Avoid Treating It Like an Ordinary Spring
The most common mistake is to specify a shape memory alloy spring as though it were a conventional metal spring. Ordinary spring language usually focuses on force, length, and rate. SMA spring language must also include temperature, phase behavior, heat treatment, and reset path.
Another mistake is testing the spring outside the real assembly. A spring may perform correctly in a cup of warm water but behave differently when mounted against a valve, housing, bias spring, or airflow path. The final mechanism should be tested at the intended operating temperatures and loads.
For thermally triggered products, the spring is part of the control logic. It deserves the same disciplined specification as an electronic sensor or mechanical actuator.
Bottom Line
A shape memory alloy spring is most useful when a product needs temperature-driven movement in a compact mechanical package. The essential decisions are activation temperature, one-way or two-way behavior, spring geometry, load, bias return, surface, and test method.
For engineering teams evaluating shape memory alloy spring concepts, GEE SMA can support discussions around custom shape memory springs, nitinol coil springs, actuator springs, wire material, and heat-treatment controlled behavior.
