The Word Spring Is Too Broad
A Nitinol spring may be a thermal actuator, a superelastic force element, an orthodontic component, a compression spring, a tension spring, an open coil spring, a closed coil spring, or a custom shape memory mechanism. The material family is the same, but the design intent can be very different. Buyers who ask only for a "Nitinol spring" often receive incomplete recommendations because the function is not defined.
GEE SMA product notes divide nitinol springs into shape memory springs and superelastic springs. They also identify several functional types, including one-way compression spring, one-way tension spring, two-way compression spring, two-way tension spring, niti open coil spring, and niti closed coil spring. That classification gives buyers a practical map for early sourcing.
GEE SMA supplies nitinol wire, actuator wire, muscle wire, springs, sheets, tubes, and custom forms. Spring discussions usually begin with wire, but they quickly become geometry and heat-treatment discussions.

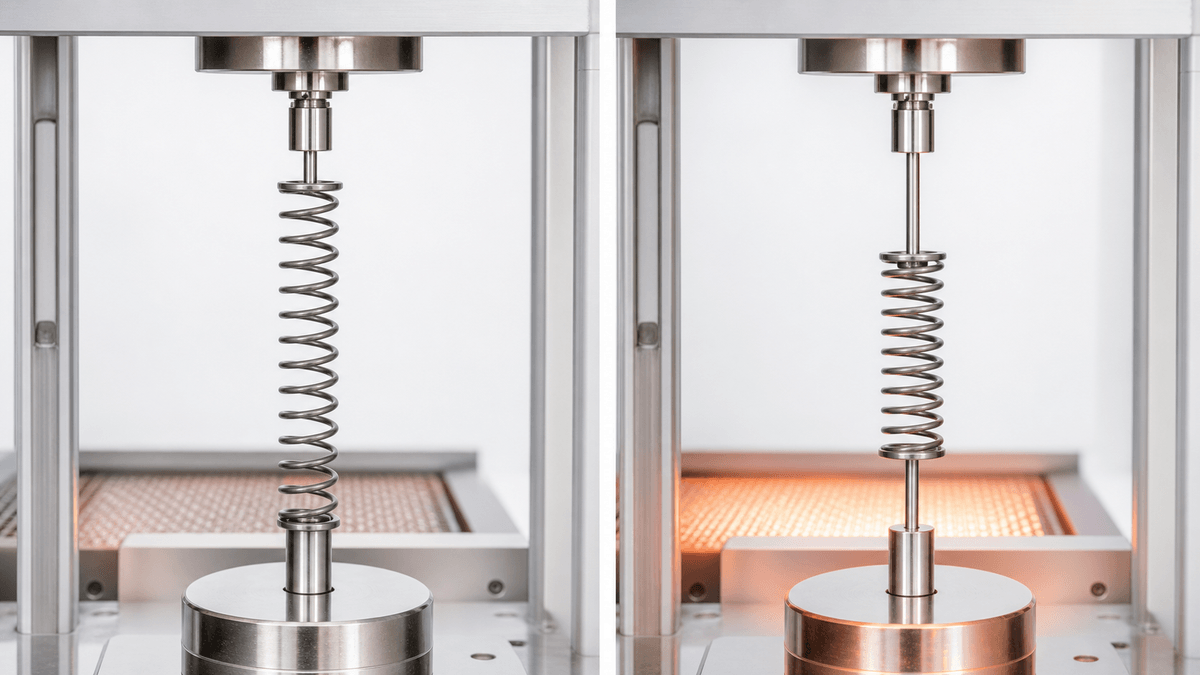

Shape Memory Springs Move With Temperature
A shape memory Nitinol spring is designed to change shape when heated through its transformation range. It may contract, extend, open, close, push, pull, or shift an equilibrium point inside a mechanism. GEE SMA product notes describe shape memory springs as a leading product family and state that Active Af control can reach about +/-2 degrees C for shape memory springs.
This temperature control matters because shape memory springs are often used where a temperature change is the signal. Applications can include automotive thermostats, refrigerator thermostats, air-conditioning wind-direction adjustment mechanisms, thermostatic mixing valves, circuit protection, intelligent robots, and similar thermal-control devices.
For buyers who need the material-temperature foundation before specifying a spring, GEE SMA's nitinol shape memory wire article explains why Active Af is one of the first parameters to define.

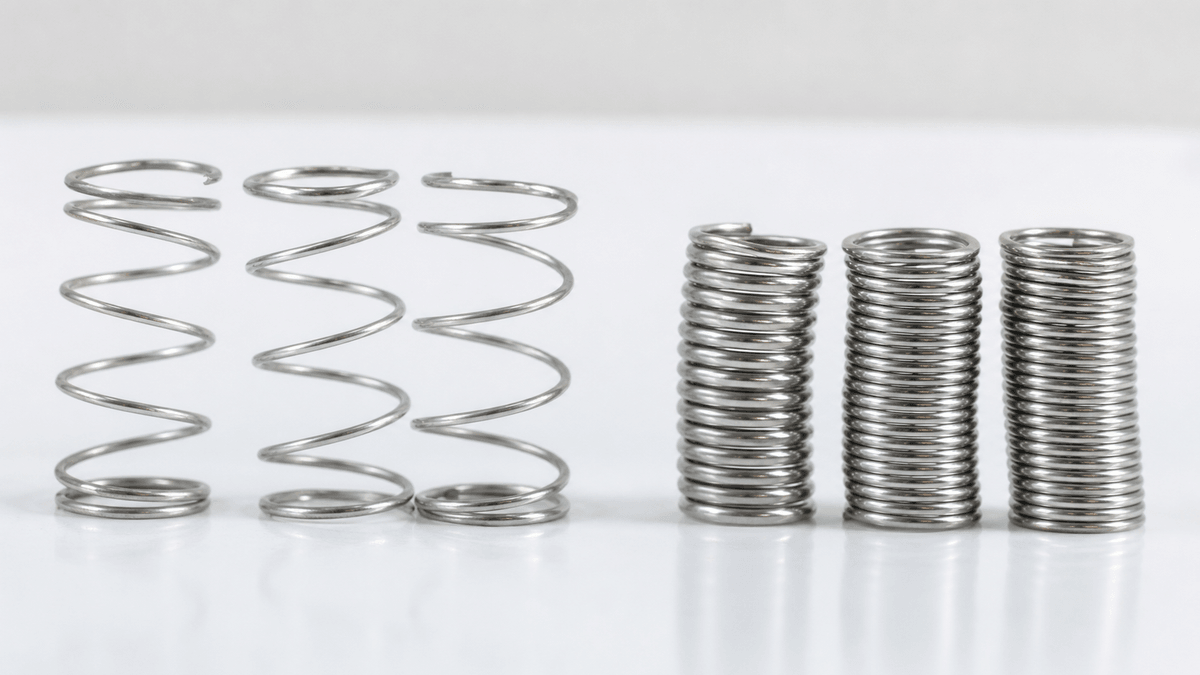

Superelastic Springs Deliver Recoverable Force
A superelastic Nitinol spring is selected for recoverable deformation and force behavior at the operating temperature. Instead of relying on heat to trigger a large shape change, the spring works through loading and unloading. That makes it relevant to open coil and closed coil spring applications where elastic recovery, springback, or controlled force matters.
GEE SMA product notes list medical application examples such as niti open coil spring and niti closed coil spring. They also list engineering examples such as nitinol compression spring and nitinol tension spring. In medical and orthodontic contexts, buyers should keep the role clear: the spring may be raw material or a component input, not a finished regulated product by default.
For projects where recoverable deformation is the main requirement, GEE SMA's superelastic nitinol wire article helps connect wire behavior to spring behavior.
Six Functional Types in Plain English
GEE SMA product notes describe four shape memory spring types and two superelastic spring types. A one-way compression spring may be pulled apart at low temperature and contract when heated. A one-way tension spring may be compressed at low temperature and extend when heated. A two-way compression spring can expand at low temperature and contract at high temperature. A two-way tension spring can contract at low temperature and expand at high temperature.
The superelastic types include niti open coil spring and niti closed coil spring, including closed springs with hook ends where needed. The choice depends on whether the design needs temperature-triggered motion or recoverable spring force. It also depends on whether the spring must push, pull, hold space, close a gap, or apply a controlled force.
The buyer should describe the desired movement in words and in a drawing. "Spring expands when hot" is useful. "Spring outside diameter 4.3 mm, compressed length 10 mm below 35 degrees C, extension length 38 mm above 55 degrees C, and total coil number 15" is better. Specific geometry turns a concept into a manufacturable spring.
Spring Geometry Controls Stroke and Force
GEE SMA product notes emphasize that nitinol coil springs can provide greater stroke than straight nitinol muscle wire in many actuator layouts. That is because coil geometry turns small material strain into larger spring movement. Wire diameter, coil outside diameter, free length, active coil count, total coil count, pitch, end form, and heat treatment all affect final stroke and force.
For actuator springs, the design should also include bias springs, load path, travel limit, thermal response, and reset method. For medical or orthodontic springs, force level, surface, packaging, and final validation route may be more important. For industrial springs, environmental exposure, assembly method, and cycle life may dominate.
GEE SMA's niti coil spring article goes deeper into coil geometry and stroke.
Manufacturing Route Should Match Temperature Tolerance
GEE SMA product notes state that shape memory springs with strict temperature requirements are often produced through artificial cold forming and shape memory annealing, while superelastic springs with more relaxed temperature requirements may use machine hot forming or cold setting followed by shape memory annealing. The point for buyers is that process route is not arbitrary.
A spring with tight Active Af requirements may need more controlled forming and heat treatment than a spring used mainly for room-temperature elasticity. A custom one-way or two-way spring may require development samples before production geometry is finalized. For repeat orders, the drawing and test method should be stable.
GEE SMA's technical information page gives broader context on nitinol manufacturing control, which is useful when spring behavior must be repeatable across lots.
Medical and Engineering Applications Need Different Proof
GEE SMA product notes connect nitinol springs with medical applications such as niti open coil spring and niti closed coil spring, and with engineering applications such as compression and tension springs. These markets do not ask for the same evidence. A medical-device team may need lot traceability, surface control, biological evaluation of the finished device, and regulatory documentation. An engineering actuator buyer may focus on force, stroke, activation temperature, and cycle response.
Surface choices listed in GEE SMA product notes include bright surface and light oxide surfaces, including blue or brown oxide. Surface should be selected around the application and downstream process. A medical-related spring may need a different finishing and cleaning route from an industrial thermostat spring.
For medical-related material boundaries, GEE SMA's nitinol biocompatibility article is a helpful reference.
From Sample Spring to Repeat Order
The first sample lot should be treated as a learning tool. Buyers should record the drawing revision, wire diameter, coil geometry, heat treatment target, surface condition, test temperature, measured force, measured travel, and cycle result. This creates a technical bridge from prototype discussion to repeat production.
When moving toward repeat orders, avoid changing multiple variables without updating the drawing and acceptance criteria. A new surface, a different coil count, or a tighter Active Af range can all affect performance. The more clearly the buyer documents the successful sample condition, the easier it is for the supplier to reproduce that spring behavior.
Supplier Questions Before Sampling
- Is the spring shape memory or superelastic?
- Is it compression, tension, open coil, closed coil, one-way, two-way, or custom?
- What Active Af or operating temperature range is required?
- What wire diameter, coil diameter, free length, travel, and force are needed?
- What surface finish, packaging, and documentation should be supplied?
- Will the spring be used in medical, orthodontic, automotive, appliance, robotics, or general engineering work?
Bottom Line
Nitinol spring selection begins with function. A shape memory spring is designed around temperature-triggered motion. A superelastic spring is designed around recoverable force. Once that decision is clear, buyers can define geometry, Active Af, force, stroke, surface, manufacturing route, and test method.
