A Niti Spring Is Usually a Custom Component
A niti spring is a nickel-titanium spring made from shape memory alloy wire. The phrase can refer to a shape memory spring, a superelastic spring, an open coil spring, a closed coil spring, a compression spring, a tension spring, or a custom actuator spring. That is why a successful purchase usually begins with a drawing and a functional requirement rather than a generic product name.
GEE SMA product notes describe Nitinol springs as spring-per-drawing components, with minimum nitinol wire diameter starting around 0.05 mm in spring product notes. The same notes identify medical applications such as niti open coil spring and niti closed coil spring, plus engineering applications such as nitinol compression spring and nitinol tension spring.
GEE SMA supplies nitinol wire, actuator wire, muscle wire, spring products, and custom forms. A niti spring order connects all of those capabilities because the final spring behavior depends on both material and geometry.
Start With Function, Then Choose Spring Type
The first question is what the niti spring must do. If the spring must move when heated, the buyer is likely discussing a shape memory spring. If the spring must provide recoverable force at the operating temperature, the buyer may need a superelastic spring. If the spring is for orthodontic or medical component work, open coil or closed coil language may be more relevant. If the spring is for a thermostat or valve, compression or tension behavior may matter more.
GEE SMA product notes describe four shape memory spring types: one-way compression, one-way tension, two-way compression, and two-way tension. They also list superelastic types such as niti open coil spring and niti closed spring. The buyer should identify which family fits the application before discussing price.
For an overview of the spring families, GEE SMA's Nitinol spring selection framework provides a useful map.
The Drawing Should Carry the Geometry

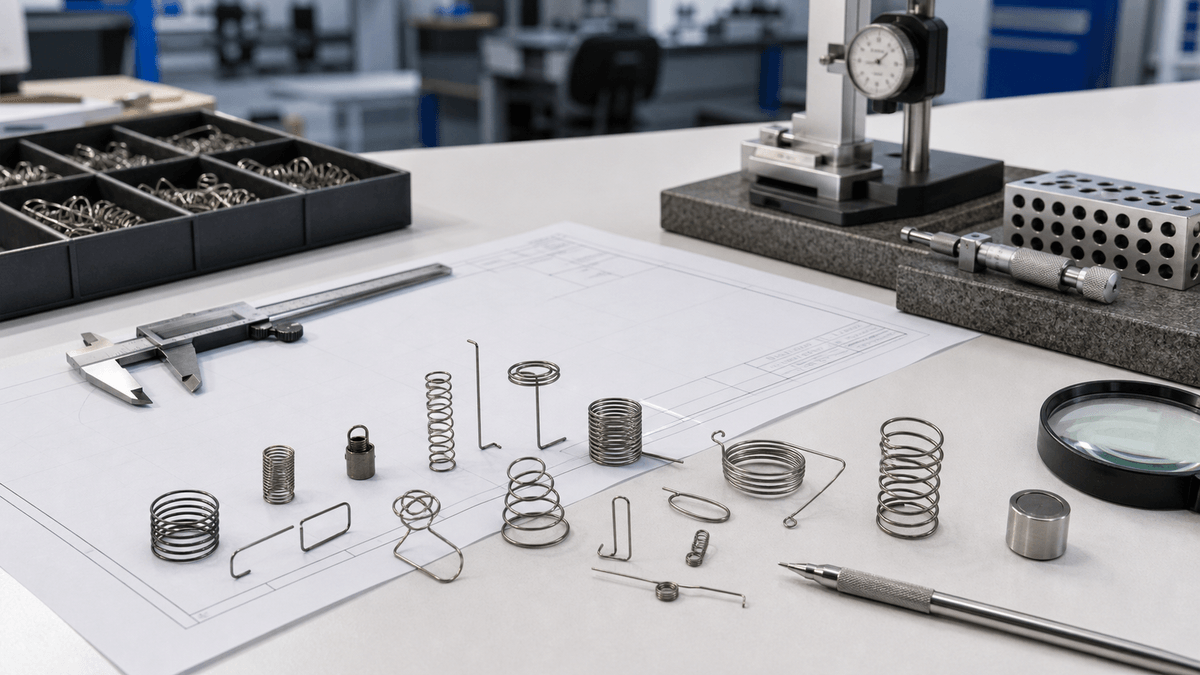

A good niti spring drawing should include wire diameter, spring outside diameter, free length, compressed length, extended length, active coil count, total coil count, pitch, end style, hook design if any, and allowable tolerance. If the spring must fit into a housing, the drawing should also show the available envelope and mounting method.
Spring geometry controls force and movement. Two springs made from the same nitinol wire can behave very differently if the coil diameter, active coil count, or heat treatment differs. That is why a keyword such as "niti spring" is only a starting point. It does not tell the supplier enough to manufacture a repeatable part.
For coil-specific geometry, GEE SMA's niti coil spring design logic shows why stroke, active coils, and end condition must be specified together.
Temperature Target Is Not Optional

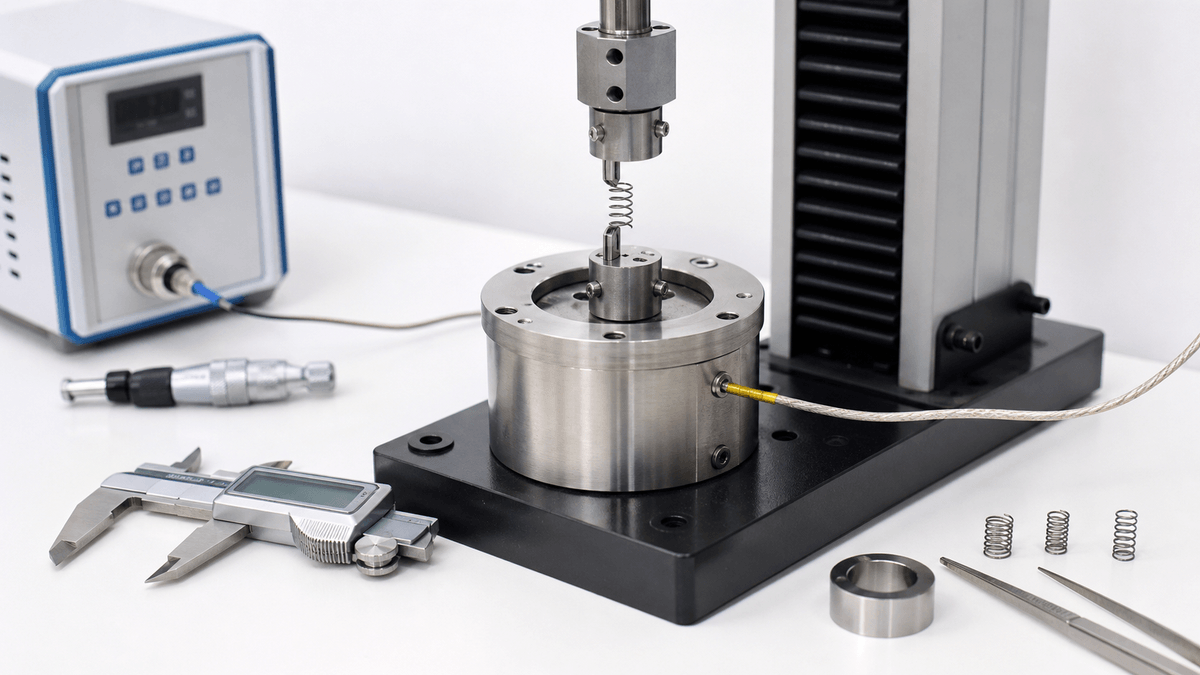

For shape memory springs, the transformation temperature determines when the spring moves. GEE SMA product notes describe shape memory spring Active Af tolerance around +/-2 degrees C. They also give example shape memory spring activation temperatures such as 60 degrees C and Af 70 degrees C in sample spring descriptions. These examples show why temperature must be part of the order.
A spring for hot-water response, a spring for automotive thermal control, and a spring for hand-warm demonstration cannot use the same transformation target. The buyer should define activation temperature, acceptable tolerance, heating environment, cooling environment, and whether the spring is tested alone or inside the final assembly.
GEE SMA's shape memory alloy spring application guidance goes deeper into temperature-triggered spring behavior.
Surface Finish and Process Route Affect the Result
GEE SMA product notes list bright surface and light oxide surfaces for spring products. They also describe constrained cold forming followed by shape memory heat treatment for shape memory springs. For superelastic springs, product notes mention machine hot forming or cold setting followed by shape memory annealing when temperature requirements are more relaxed.
Surface and process should match the application. A spring used in a medical-related assembly may require stricter surface and cleaning discussion than a spring used in a general engineering mechanism. A spring used in a visible consumer device may need appearance control. A spring used in a thermal valve may prioritize activation response and cycle reliability.
For buyers who need custom end forms, hooks, or integrated wire shapes, GEE SMA's custom nitinol wire forming capability is relevant.
Sample Testing Should Be Functional
A niti spring sample should be tested in the condition that matters. For shape memory springs, test activation temperature, movement direction, stroke, force, reset behavior, and repeatability. For superelastic springs, test force, displacement, loading and unloading behavior, permanent set, and surface condition. If the spring is used in an assembly, test it inside that assembly as early as possible.
GEE SMA product notes describe monthly production capacity for spring products and emphasize custom design according to customer needs. Production scale is useful only when the sample and drawing are well controlled. If the buyer changes coil count, wire diameter, surface, or target temperature after sampling, the validation logic changes too.
A sample report should record drawing revision, material route, heat treatment target, test temperature, measured dimensions, and functional result. That record protects both buyer and supplier when the project moves to repeat orders.
Medical and Orthodontic Buyers Need Boundaries
Because niti spring terms often appear in medical and orthodontic contexts, buyers should keep product status clear. A supplier may provide raw material, custom spring components, or intermediate parts, but finished medical or orthodontic products require separate validation, labeling, regulatory review, and intended-use evidence from the final product manufacturer.
GEE SMA product notes list medical application examples for open and closed coil springs. This supports material and component discussion, not automatic finished-device claims. The purchase order should define whether the spring is for development, intermediate assembly, or final device manufacturing.
GEE SMA's nitinol biocompatibility guidance is useful when surface condition and finished-device evaluation enter the conversation.
What to Send Before Asking for a Quote
- Application description and whether the spring is shape memory or superelastic.
- Drawing with wire diameter, outside diameter, free length, active coils, total coils, and end form.
- Activation temperature, Active Af tolerance, or operating temperature range.
- Target stroke, force, preload, reset mechanism, and cycle expectation.
- Surface finish, package form, lot marking, and documentation requirements.
- Sample quantity, test method, and acceptance criteria.
Common Sourcing Mistakes
One mistake is asking for the cheapest niti spring before defining function. A lower-cost sample that does not match the temperature or geometry requirement is not a bargain. Another mistake is copying a steel spring drawing without adjusting for nitinol's transformation behavior. SMA spring design requires temperature and heat treatment information in addition to ordinary spring dimensions.
A third mistake is ignoring reset. Many shape memory spring systems need a bias spring, load, or mechanical path for return movement. A fourth mistake is testing only once. Repeatability matters, especially when the product will cycle in temperature or force many times.
Good sourcing starts with a clear drawing, a clear temperature target, and a practical test plan. That makes the supplier conversation faster and the sample results easier to interpret.
Bottom Line
A niti spring is best specified as a custom engineered spring, not a catalog phrase. The buyer should define spring type, geometry, Active Af, surface, process route, application, and test method before comparing quotes. For shape memory springs, temperature response is central. For superelastic springs, force and recovery behavior are central.
For buyers developing custom niti spring products, GEE SMA can support material and component discussions around shape memory springs, superelastic springs, open and closed coil springs, actuator springs, and nitinol wire inputs.
