Medical nitinol wire is bought by diameter, but it is qualified by evidence. Two coils can share the same nominal size and still behave differently because chemistry, inclusion population, cold work, heat treatment, transformation temperature, straightness, and surface history all influence the finished component. A useful procurement specification therefore connects the wire to a controlled lot and defines which measurements must follow that lot.
GEE SMA supplies medical-oriented wire from 0.05 mm [0.002 in.] and up in cold-drawn or straight-annealed condition. The available material set includes SE510, SE508, SE508 ELI, LSE5065, and LSE507 ELI, with black oxide, light oxide, and mechanically polished surfaces. That combination of alloy, condition, diameter, and finish lets a device developer define the incoming material instead of relying on the broad label “medical nitinol.”
Begin With the Intended Function and Temperature
A guidewire core, retrieval element, orthodontic component, stylet, and formed frame do not impose the same strain mode or temperature history. The RFQ should state whether the wire will be used as received, ground to a taper, braided, welded, coiled, shape set, electropolished, or coated. It should also identify the operating and test temperatures. These facts determine whether the delivered material needs finished superelastic behavior or retained cold work for later thermomechanical processing.
SE508 and SE508 ELI are practical starting points for many room- and body-temperature components, while warmer LSE grades can provide lower plateau stress under comparable processing. SE510 is positioned for colder superelastic service. The choice becomes clearer when the buyer pairs the application window with grade-specific plateau and Active Af targets.
Separate Ingot Transformation Data From Active Af
Chemistry alone cannot predict transformation temperature with enough precision for a functional NiTi component. A certificate may include DSC data on fully annealed material and Active Af measured on processed wire, but these are not interchangeable. ASTM F2004 uses thermal analysis, while ASTM F2082/F2082M tracks free recovery of a bent specimen. The latter can assess semifinished or finished product behavior, and ASTM explicitly notes that DSC and bend-and-free-recovery results should not be compared directly.
For incoming control, identify the specimen condition, method, heating path, and acceptance band. If downstream heat setting will move Active Af, retain both the incoming result and the post-process result. GEE SMA's thermomechanical testing capability supports this distinction between alloy formulation evidence and functional wire evidence.
Mechanical Data Needs a Declared Test Temperature
ASTM F2516 reports upper plateau strength, lower plateau strength, residual elongation, tensile strength, and elongation for superelastic NiTi. Those values describe the specimen at the test temperature. A room-temperature report cannot automatically predict a body-temperature assembly because the stress required to induce martensite changes with temperature.
Ask the supplier to state sample condition and test temperature beside the results. For fatigue-sensitive parts, add cyclic testing in representative geometry because a monotonic tensile test does not establish device life. GEE SMA's medical wire controls provide a useful framework for connecting tensile data, residual set, transformation temperature, and the supplied lot.
Surface Condition Is a Manufacturing Input

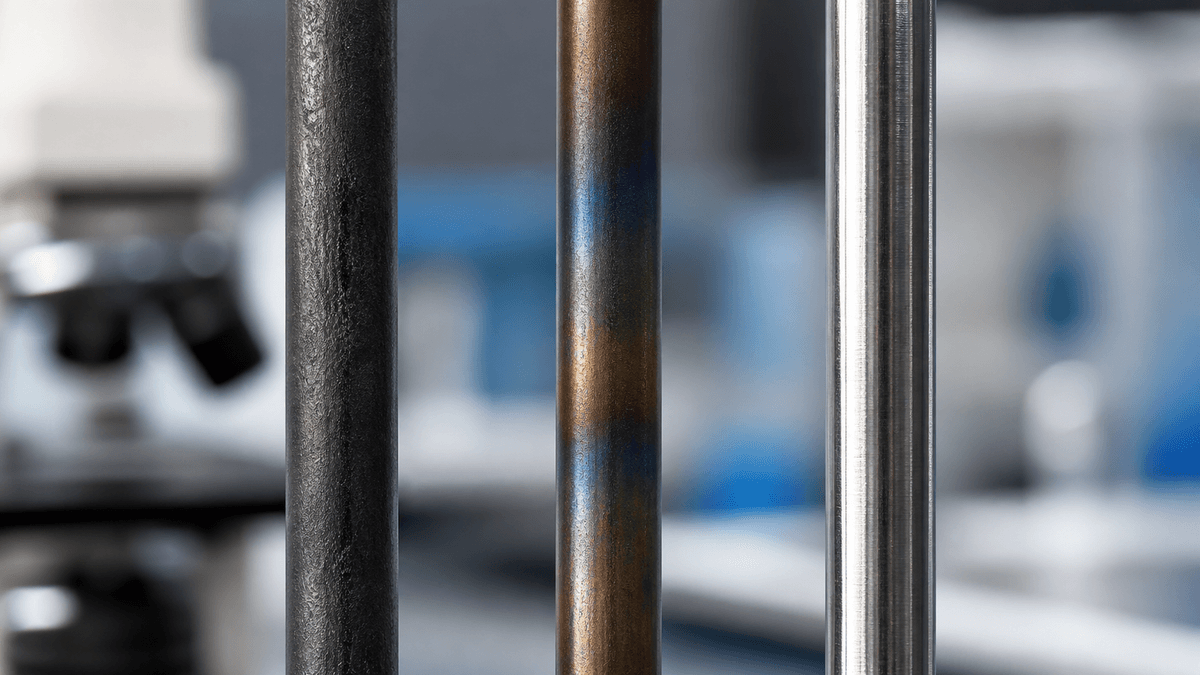

Black oxide is the ordinary drawn surface. Light oxide can be a thinner brown or blue oxide that may suit a later etch or electropolish route. Mechanically polished wire presents a bright metallic surface. None of these names, by itself, defines final implant cleanliness, passivation, roughness, corrosion behavior, or biological response. The buyer should specify the incoming condition and the downstream surface process separately.
Visual acceptance can address kinks, bends, ripples, burrs, visible debris, and unwanted discoloration, but microscopic defect criteria must be linked to process risk. A wire that will undergo severe bending or high-cycle loading deserves tighter control of scratches and inclusions. GEE SMA's surface preparation controls make this relationship explicit: final performance belongs to the complete finishing route, not to a color description.
Build Traceability Around the Coil and the Process

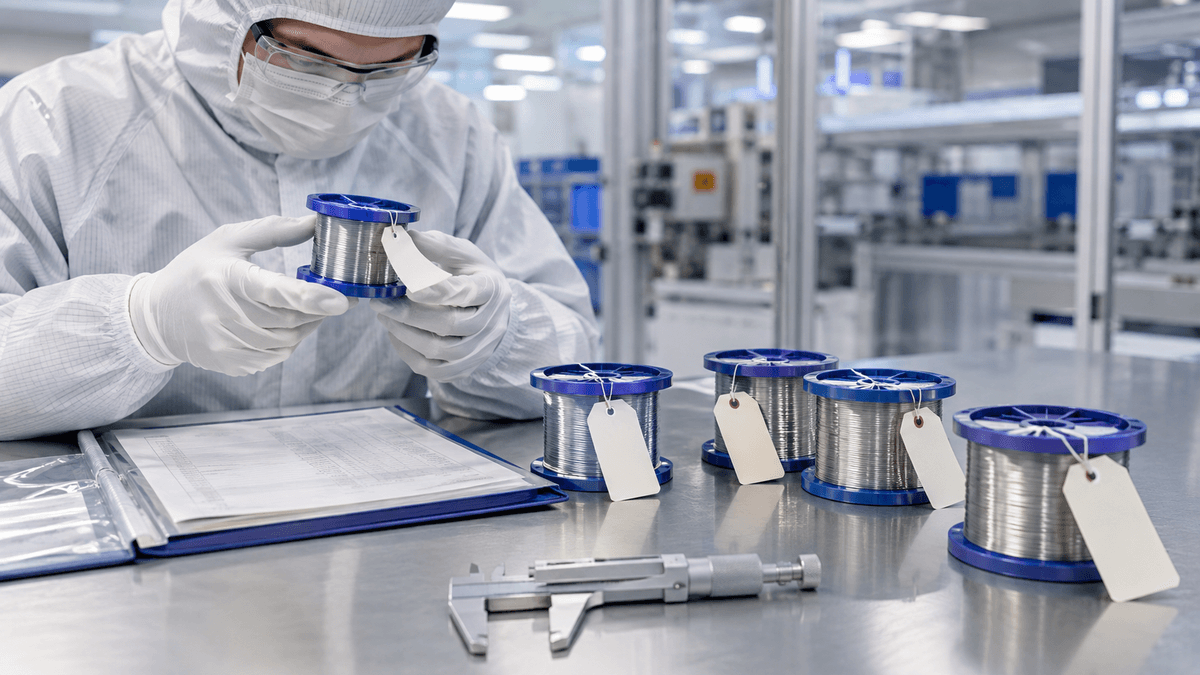

At minimum, the package label and certificate should connect alloy code, melt or heat, production lot, nominal diameter, tolerance, delivery condition, surface, quantity, and spool identity. When a coil is split, the internal traveler should preserve parent-child relationships. This allows a nonconformance in drawing, straightening, polishing, or heat treatment to be contained without treating every visually similar coil as the same material.
Dimensional evidence also needs a sampling plan. Fine medical nitinol wire can be affected by ovality, local diameter variation, cast, twist, and spool tension. GEE SMA lists tighter tolerance options across several diameter bands, but the drawing or purchase order should identify the applicable band and measurement method. Its straightness and guidewire feedstock controls are relevant when later grinding or assembly depends on stable geometry.
ASTM F2063 Does Not Approve the Finished Device
The current ASTM F2063 specification covers requirements for wrought binary nickel-titanium mill products intended for medical devices and surgical implants. Its scope also says mill product is not intended to have the final shape, surface, or properties of the device. FDA guidance likewise treats nitinol devices as processing-sensitive systems and discusses thermomechanical behavior, corrosion, nickel release, fatigue, and other device-level considerations.
Therefore, material conformance is one input to design control, not a regulatory approval. The finished manufacturer remains responsible for validating the actual component, surface, sterilization route, packaging, and intended use. GEE SMA's medical material portfolio should be specified as starting material with an agreed certificate package.
A Practical Medical Nitinol Wire RFQ
- Application, operating temperature, strain mode, target life, and downstream processing.
- Alloy code, diameter, tolerance, ovality, straightness, coil format, and quantity.
- Cold-drawn or straight-annealed condition and required surface finish.
- Transformation method, specimen condition, Active Af range, and test temperature.
- ASTM F2516 outputs, visual criteria, lot identity, and required certificate fields.
- Explicit separation between raw-material conformance and finished-device validation.
The strongest medical nitinol wire specification is a chain of evidence. It makes the intended function visible, ties every test to a known specimen condition, and carries identity from melt through coil, surface, and final component processing.
