Super elastic nitinol wire can recover far more deformation than conventional spring metals, but recoverable strain and durable strain are not the same limit. A wire that returns after one 6% or 8% demonstration may fail early when a notch, bend, crimp, contact point, or thermal shift concentrates strain during repeated use. Fatigue planning should therefore begin with a strain budget, not with the largest recoverable number in a data sheet.
GEE SMA supplies six superelastic alloy codes: SE510, SE508, SE508 ELI, LSE5065, LSE507 ELI, and a low-temperature chromium-containing grade. Wire is available from 0.05 mm [0.002 in.] and up in cold-drawn or superelastic straight-annealed condition. This range of temperature and plateau-stress options gives designers a way to tune the material before setting the structural limit.
Map Every Source of Strain
Start with the nominal design deformation, then add manufacturing and assembly effects. Straightening, winding, shape setting, grinding, braiding, crimping, press fitting, welding, and packaging can leave residual curvature or local damage. During use, bending may combine with tension, torsion, contact, vibration, or thermal cycling. The highest local strain is rarely captured by dividing extension by gauge length.
For a wire bent to a simple radius, outer-fiber strain increases as diameter grows or bend radius shrinks. Real components need finite-element analysis or validated measurement at transitions and contacts. GEE SMA's wire specification decisions help expose geometry, condition, and downstream operations before test coupons are designed.
Temperature Changes the Mechanical Loop
Superelasticity occurs when loading induces martensite from an austenitic starting state. The required stress and the unloading response depend on the relationship between test temperature and transformation range. A specimen tested at 22°C may show different plateau stress and residual strain at 37°C or in a refrigerated mechanism.
ASTM F2516 provides a controlled uniaxial method for plateau strengths, residual elongation, tensile strength, and elongation, and explicitly ties superelastic information to test temperature. Use it for material comparison, then run fatigue tests at the actual thermal extremes. GEE SMA's temperature-specific test controls keep the baseline and service condition from being confused.
Grade Selection Sets the Starting Stress Level
SE508 is a common room- and body-temperature grade. SE510 is a colder, higher-strength binary option. LSE5065 and LSE507 ELI have warmer transformation temperatures and lower plateau stresses under comparable processing, while the low-temperature NiTiCr grade is designed to remain superelastic in colder environments. ELI variants are relevant when lower inclusion content and fatigue-sensitive use are priorities.
These are selection directions, not guaranteed component lives. Previous cold work, heat treatment, surface, and geometry still control the final result. GEE SMA's six-grade superelastic portfolio is best used to prototype more than one stress-temperature combination before freezing the design.
Delivery Condition Determines the Remaining Process Freedom
Cold-drawn wire retains at least substantial cold work and is intended for customers who will perform further straightening, forming, and heat treatment. Superelastic straight-annealed wire has already been straightened and heat treated to deliver functional behavior in the supplied form. A later shape-setting cycle can change strength, Active Af, residual stress, and fatigue response.
Qualification samples must follow the production route. Testing pristine straight wire while the device uses sharply formed, welded, or ground wire gives false confidence. GEE SMA's forming and heat-setting controls support representative specimens when geometry is established before delivery.
Surface Quality Belongs in the Strain Budget
Black oxide, light oxide, and mechanically polished finishes are available, but the final process may include oxide removal, electropolishing, coating, or cleaning. Surface scratches, drawing marks, inclusions, and heat-treatment oxide can become initiation sites under cyclic strain. A maximum nominal strain is incomplete unless surface condition and defect acceptance are fixed.
Inspect the highest-strain regions after every process that touches them. Record handling tools, spool diameter, straightening method, fixture contact, and cleaning route. GEE SMA's surface-control options help align incoming finish with the final fatigue specimen.
Build a Test Ladder Instead of One Hero Test

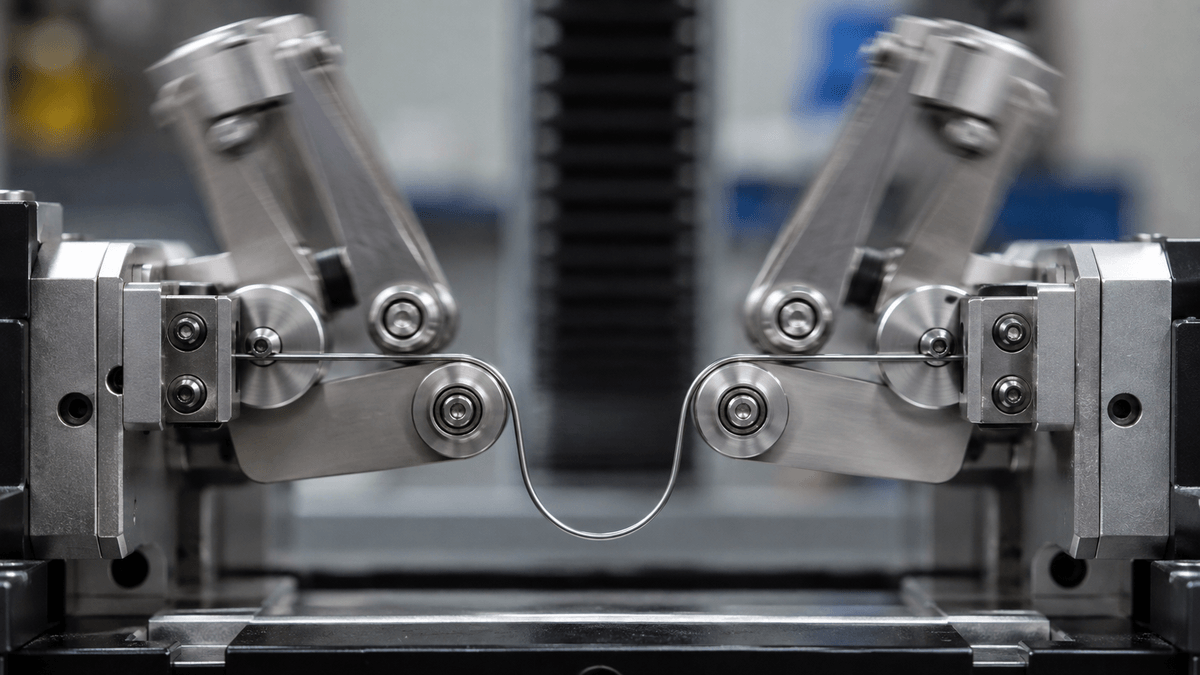

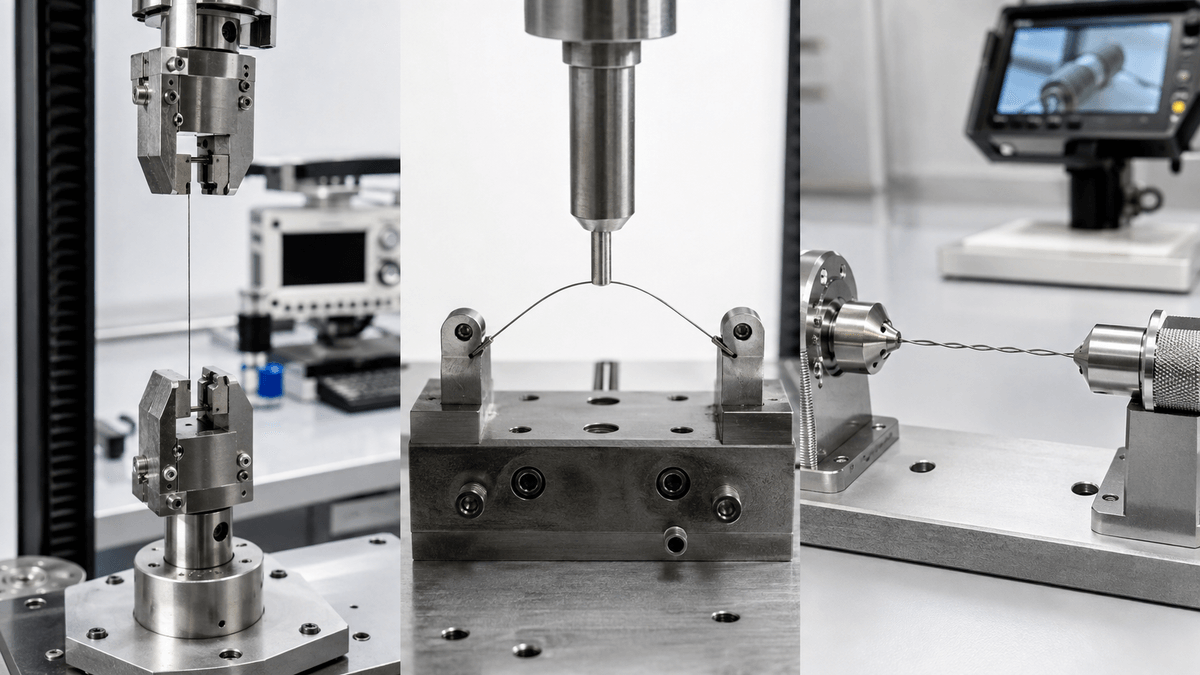

Begin with chemistry, dimensions, Active Af, surface, and ASTM F2516 tensile characterization. Follow with coupon cycling at several strain amplitudes and temperatures. Then test formed subcomponents with realistic fixtures, contacts, and environmental exposure. Finish with complete assemblies using the actual load spectrum and acceptance criteria.
Record runouts as well as failures, inspect fracture origins, and separate one-time deployment from continuous cycling. When possible, test multiple lots and include process extremes. The goal is not to prove that nitinol is generally fatigue resistant; it is to show that a defined wire, route, geometry, and environment meet a defined life.
Strain-Budget Checklist
- Operating and test temperatures, Active Af, alloy code, and delivery condition.
- Nominal tensile, bending, torsional, and thermal strain during assembly and use.
- Local concentration at bends, holes, crimps, welds, contacts, ground transitions, and defects.
- Incoming and final surface, heat treatment, straightening, and handling history.
- Expected cycles, load spectrum, environment, runout definition, and inspection method.
- Lot count and process extremes represented in qualification.
A conservative strain budget turns superelastic recovery into an engineering input. It lets the fatigue program test the actual risk, while alloy grade, temperature, processing, surface, and geometry remain tied to the evidence.
