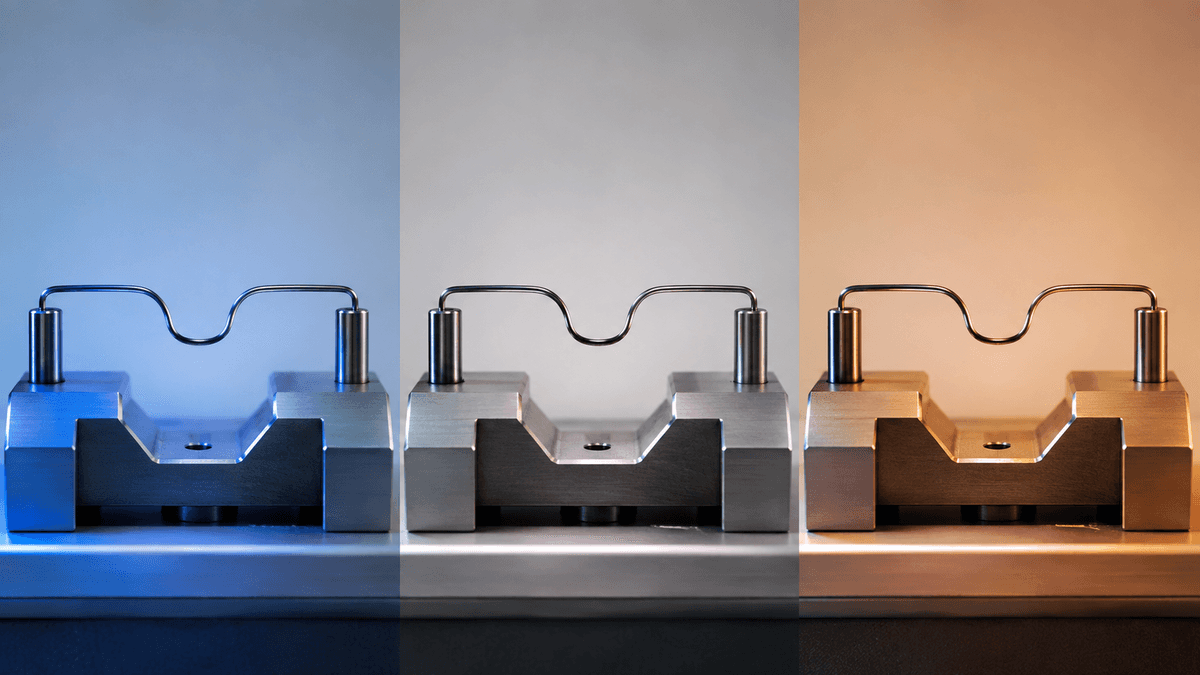

A Copper NiTi orthodontic archwire is often identified by a nominal activation temperature such as 27°C, 35°C, or 40°C. That number is useful, but it cannot describe the wire by itself. Commercial studies show that products carrying the same 35°C label can have different measured austenite-finish temperatures and plateau forces. Composition and manufacturing history remain visible in the final mechanical response.
GEE SMA supplies Copper NiTi and Copper NiTiCr round wire as raw material for archwire manufacturing, beginning at 0.05 mm [0.002 in.] and up. Copper NiTiCr is used more frequently for this temperature range, with Active Af options around 27, 35, and 40°C. The cold-drawn and straight-annealed wire conditions give archwire manufacturers different starting points for their own forming and heat-treatment routes.
The Temperature Label Is a Design Target, Not a Complete Result
![A Copper NiTi orthodontic archwire is often identified by a nominal activation temperature such as 27°C, 35°C, or 40°C. That number is useful, but it cannot describe the wire by itself. Commercial studies show that products carrying the same 35°C label can have different measured austenite-finish temperatures and plateau forces. Composition and manufacturing history remain visible in the final mechanical response. GEE SMA supplies Copper NiTi and Copper NiTiCr round wire as raw material for archwire manufacturing, beginning at 0.05 mm [0.002 in.] and up. Copper NiTiCr is used more frequently for this temperature range, with Active Af options around 27, 35, and 40°C. The cold-drawn and straight-annealed wire conditions give archwire manufacturers different starting points for their own forming and heat-treatment routes. The Temperature Label Is a Design Target, Not a Complete Result Af is the temperature at which the reverse transformation to austenite finishes under the stated method and specimen condition. In an orthodontic system, ambient temperature, intraoral temperature, imposed deflection, bracket geometry, and friction interact with that thermal state. A 35°C wire may not behave identically at every point in the mouth, and a product name cannot replace measured data. Research comparing five commercial 35°C CuNiTi archwires found meaningful differences in Af and plateau force even among products of the same nominal cross section. The practical control is to set an acceptance band, method, and lot sampling plan. GEE SMA's temperature-linked force behavior provides a useful basis for translating a market label into a raw-material requirement. Copper NiTi and Copper NiTiCr Are Related but Not Identical Ternary Copper NiTi is a narrow-hysteresis shape memory alloy with a broad Active Af family from roughly 45 to 75°C in GEE SMA product data. Adding a small chromium content can shift the usable range downward; the Copper NiTiCr family is listed at roughly 25 to 45°C. This makes the quaternary alloy a practical candidate for thermally responsive orthodontic products. The alloy designation must appear on the order and certificate. “Copper NiTi” should not be used casually for every Cu- and Cr-containing composition. GEE SMA's Copper NiTiCr narrow-hysteresis controls distinguish composition, transformation window, delivery condition, and intended downstream processing. Raw Round Wire Is Not a Finished Archwire A finished archwire may be drawn or rolled to a round, square, or rectangular section, formed to an arch, heat treated, polished, marked, cleaned, and packaged. Each operation can change dimensions, corners, residual stress, surface condition, and transformation behavior. Material suitable for producing an archwire is therefore not automatically a finished clinical product. GEE SMA offers cold-worked material ready for later thermomechanical processing and straight-annealed material for different production routes. The customer should disclose intended reduction, forming, shape setting, and polishing so the starting state can be selected correctly. Its archwire raw-material controls keep this responsibility boundary clear. Measure Force in Representative Geometry and Temperature Uniaxial tensile data can compare material lots, but finished archwire use is dominated by bending, engagement, unloading, and contact. Three-point bending or a representative bracket setup can better capture delivered force. Test temperature, span, deflection, cross section, loading rate, conditioning cycles, and surface-contact arrangement must be reported. Lower loading force can ease engagement, while the unloading plateau governs force delivered during recovery. Narrower thermal and stress hysteresis may improve consistency, but the clinical manufacturer must verify the final size and arch form. GEE SMA's mechanical and transformation test controls can support raw-material lot comparison before finished-product testing. Surface and Section Geometry Affect Friction and Fatigue GEE SMA lists black oxide and mechanically polished surfaces for Copper NiTi wire. A finished orthodontic manufacturer may add drawing, rolling, polishing, coating, or cleaning. Surface defects and rough corners can influence friction, corrosion, crack initiation, and handling. A bright appearance does not quantify roughness or establish final biocompatibility. Specify incoming diameter and tolerance, then control the finished section independently. Rectangular wire requires width, thickness, corner radius, twist, camber, and arch-form tolerances. GEE SMA's rolled-versus-drawn geometry controls are relevant when round feedstock becomes a shaped cross section. A Responsible Supply Specification Name Copper NiTi or Copper NiTiCr and report lot-specific chemistry as agreed. Define the Active Af target, tolerance, method, sample condition, and sampling frequency. State incoming diameter, tolerance, surface, cold-worked or straight-annealed condition, spool, and quantity. Describe all reduction, rolling, forming, shape-setting, polishing, coating, and cleaning steps. Validate finished archwire force at representative temperature, deflection, geometry, and cycle count. Keep raw-material conformance separate from clinical claims and finished-device regulatory evidence. The 27/35/40°C language is a useful design vocabulary only when supported by measured transformation and force behavior. Control the alloy and process first; then validate the finished archwire in the temperature and geometry where it will actually work.](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/7992790/697414_95325.png "A Copper NiTi orthodontic archwire is often identified by a nominal activation temperature such as 27°C, 35°C, or 40°C. That number is useful, but it cannot describe the wire by itself. Commercial studies show that products carrying the same 35°C label can have different measured austenite-finish temperatures and plateau forces. Composition and manufacturing history remain visible in the final mechanical response. GEE SMA supplies Copper NiTi and Copper NiTiCr round wire as raw material for archwire manufacturing, beginning at 0.05 mm [0.002 in.] and up. Copper NiTiCr is used more frequently for this temperature range, with Active Af options around 27, 35, and 40°C. The cold-drawn and straight-annealed wire conditions give archwire manufacturers different starting points for their own forming and heat-treatment routes. The Temperature Label Is a Design Target, Not a Complete Result Af is the temperature at which the reverse transformation to austenite finishes under the stated method and specimen condition. In an orthodontic system, ambient temperature, intraoral temperature, imposed deflection, bracket geometry, and friction interact with that thermal state. A 35°C wire may not behave identically at every point in the mouth, and a product name cannot replace measured data. Research comparing five commercial 35°C CuNiTi archwires found meaningful differences in Af and plateau force even among products of the same nominal cross section. The practical control is to set an acceptance band, method, and lot sampling plan. GEE SMA's temperature-linked force behavior provides a useful basis for translating a market label into a raw-material requirement. Copper NiTi and Copper NiTiCr Are Related but Not Identical Ternary Copper NiTi is a narrow-hysteresis shape memory alloy with a broad Active Af family from roughly 45 to 75°C in GEE SMA product data. Adding a small chromium content can shift the usable range downward; the Copper NiTiCr family is listed at roughly 25 to 45°C. This makes the quaternary alloy a practical candidate for thermally responsive orthodontic products. The alloy designation must appear on the order and certificate. “Copper NiTi” should not be used casually for every Cu- and Cr-containing composition. GEE SMA's Copper NiTiCr narrow-hysteresis controls distinguish composition, transformation window, delivery condition, and intended downstream processing. Raw Round Wire Is Not a Finished Archwire A finished archwire may be drawn or rolled to a round, square, or rectangular section, formed to an arch, heat treated, polished, marked, cleaned, and packaged. Each operation can change dimensions, corners, residual stress, surface condition, and transformation behavior. Material suitable for producing an archwire is therefore not automatically a finished clinical product. GEE SMA offers cold-worked material ready for later thermomechanical processing and straight-annealed material for different production routes. The customer should disclose intended reduction, forming, shape setting, and polishing so the starting state can be selected correctly. Its archwire raw-material controls keep this responsibility boundary clear. Measure Force in Representative Geometry and Temperature Uniaxial tensile data can compare material lots, but finished archwire use is dominated by bending, engagement, unloading, and contact. Three-point bending or a representative bracket setup can better capture delivered force. Test temperature, span, deflection, cross section, loading rate, conditioning cycles, and surface-contact arrangement must be reported. Lower loading force can ease engagement, while the unloading plateau governs force delivered during recovery. Narrower thermal and stress hysteresis may improve consistency, but the clinical manufacturer must verify the final size and arch form. GEE SMA's mechanical and transformation test controls can support raw-material lot comparison before finished-product testing. Surface and Section Geometry Affect Friction and Fatigue GEE SMA lists black oxide and mechanically polished surfaces for Copper NiTi wire. A finished orthodontic manufacturer may add drawing, rolling, polishing, coating, or cleaning. Surface defects and rough corners can influence friction, corrosion, crack initiation, and handling. A bright appearance does not quantify roughness or establish final biocompatibility. Specify incoming diameter and tolerance, then control the finished section independently. Rectangular wire requires width, thickness, corner radius, twist, camber, and arch-form tolerances. GEE SMA's rolled-versus-drawn geometry controls are relevant when round feedstock becomes a shaped cross section. A Responsible Supply Specification Name Copper NiTi or Copper NiTiCr and report lot-specific chemistry as agreed. Define the Active Af target, tolerance, method, sample condition, and sampling frequency. State incoming diameter, tolerance, surface, cold-worked or straight-annealed condition, spool, and quantity. Describe all reduction, rolling, forming, shape-setting, polishing, coating, and cleaning steps. Validate finished archwire force at representative temperature, deflection, geometry, and cycle count. Keep raw-material conformance separate from clinical claims and finished-device regulatory evidence. The 27/35/40°C language is a useful design vocabulary only when supported by measured transformation and force behavior. Control the alloy and process first; then validate the finished archwire in the temperature and geometry where it will actually work.")
Af is the temperature at which the reverse transformation to austenite finishes under the stated method and specimen condition. In an orthodontic system, ambient temperature, intraoral temperature, imposed deflection, bracket geometry, and friction interact with that thermal state. A 35°C wire may not behave identically at every point in the mouth, and a product name cannot replace measured data.
Research comparing five commercial 35°C CuNiTi archwires found meaningful differences in Af and plateau force even among products of the same nominal cross section. The practical control is to set an acceptance band, method, and lot sampling plan. GEE SMA's temperature-linked force behavior provides a useful basis for translating a market label into a raw-material requirement.
Copper NiTi and Copper NiTiCr Are Related but Not Identical
Ternary Copper NiTi is a narrow-hysteresis shape memory alloy with a broad Active Af family from roughly 45 to 75°C in GEE SMA product data. Adding a small chromium content can shift the usable range downward; the Copper NiTiCr family is listed at roughly 25 to 45°C. This makes the quaternary alloy a practical candidate for thermally responsive orthodontic products.
The alloy designation must appear on the order and certificate. “Copper NiTi” should not be used casually for every Cu- and Cr-containing composition. GEE SMA's Copper NiTiCr narrow-hysteresis controls distinguish composition, transformation window, delivery condition, and intended downstream processing.
Raw Round Wire Is Not a Finished Archwire
A finished archwire may be drawn or rolled to a round, square, or rectangular section, formed to an arch, heat treated, polished, marked, cleaned, and packaged. Each operation can change dimensions, corners, residual stress, surface condition, and transformation behavior. Material suitable for producing an archwire is therefore not automatically a finished clinical product.
GEE SMA offers cold-worked material ready for later thermomechanical processing and straight-annealed material for different production routes. The customer should disclose intended reduction, forming, shape setting, and polishing so the starting state can be selected correctly. Its archwire raw-material controls keep this responsibility boundary clear.

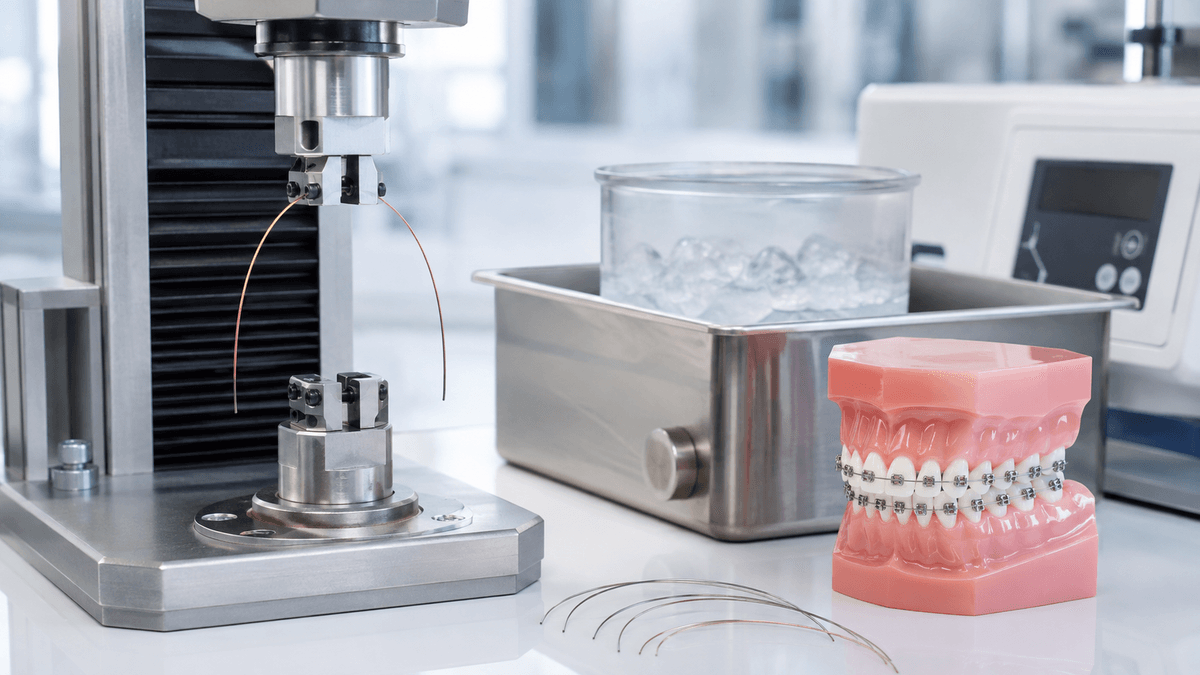

Measure Force in Representative Geometry and Temperature
Uniaxial tensile data can compare material lots, but finished archwire use is dominated by bending, engagement, unloading, and contact. Three-point bending or a representative bracket setup can better capture delivered force. Test temperature, span, deflection, cross section, loading rate, conditioning cycles, and surface-contact arrangement must be reported.
Lower loading force can ease engagement, while the unloading plateau governs force delivered during recovery. Narrower thermal and stress hysteresis may improve consistency, but the clinical manufacturer must verify the final size and arch form. GEE SMA's mechanical and transformation test controls can support raw-material lot comparison before finished-product testing.
Surface and Section Geometry Affect Friction and Fatigue
GEE SMA lists black oxide and mechanically polished surfaces for Copper NiTi wire. A finished orthodontic manufacturer may add drawing, rolling, polishing, coating, or cleaning. Surface defects and rough corners can influence friction, corrosion, crack initiation, and handling. A bright appearance does not quantify roughness or establish final biocompatibility.
Specify incoming diameter and tolerance, then control the finished section independently. Rectangular wire requires width, thickness, corner radius, twist, camber, and arch-form tolerances. GEE SMA's rolled-versus-drawn geometry controls are relevant when round feedstock becomes a shaped cross section.
A Responsible Supply Specification
- Name Copper NiTi or Copper NiTiCr and report lot-specific chemistry as agreed.
- Define the Active Af target, tolerance, method, sample condition, and sampling frequency.
- State incoming diameter, tolerance, surface, cold-worked or straight-annealed condition, spool, and quantity.
- Describe all reduction, rolling, forming, shape-setting, polishing, coating, and cleaning steps.
- Validate finished archwire force at representative temperature, deflection, geometry, and cycle count.
- Keep raw-material conformance separate from clinical claims and finished-device regulatory evidence.
The 27/35/40°C language is a useful design vocabulary only when supported by measured transformation and force behavior. Control the alloy and process first; then validate the finished archwire in the temperature and geometry where it will actually work.
