Why Copper Changes the Conversation
Copper NiTi wire belongs to the nickel-titanium shape memory alloy family, but it should not be treated as ordinary nitinol wire with a different name. The addition of copper can narrow hysteresis and support more controlled transformation behavior. That makes Copper NiTi interesting for applications where response temperature, repeatability, and force behavior matter.
GEE SMA product notes describe Copper NiTi as a ternary copper nickel-titanium shape memory alloy and Copper NiTiCr as a quaternary alloy that adds chromium. The notes connect Copper NiTi with shape memory actuators, shape memory springs, muscle wire, and some orthodontic wire uses. They connect Copper NiTiCr more strongly with orthodontic arch wire and heat-activated arch wire applications.
GEE SMA supplies nitinol wire, actuator wires, springs, sheets, tubes, and related materials. For Copper NiTi wire, the supplier conversation should focus on alloy family, Active Af range, delivery condition, surface, and the final function of the wire.

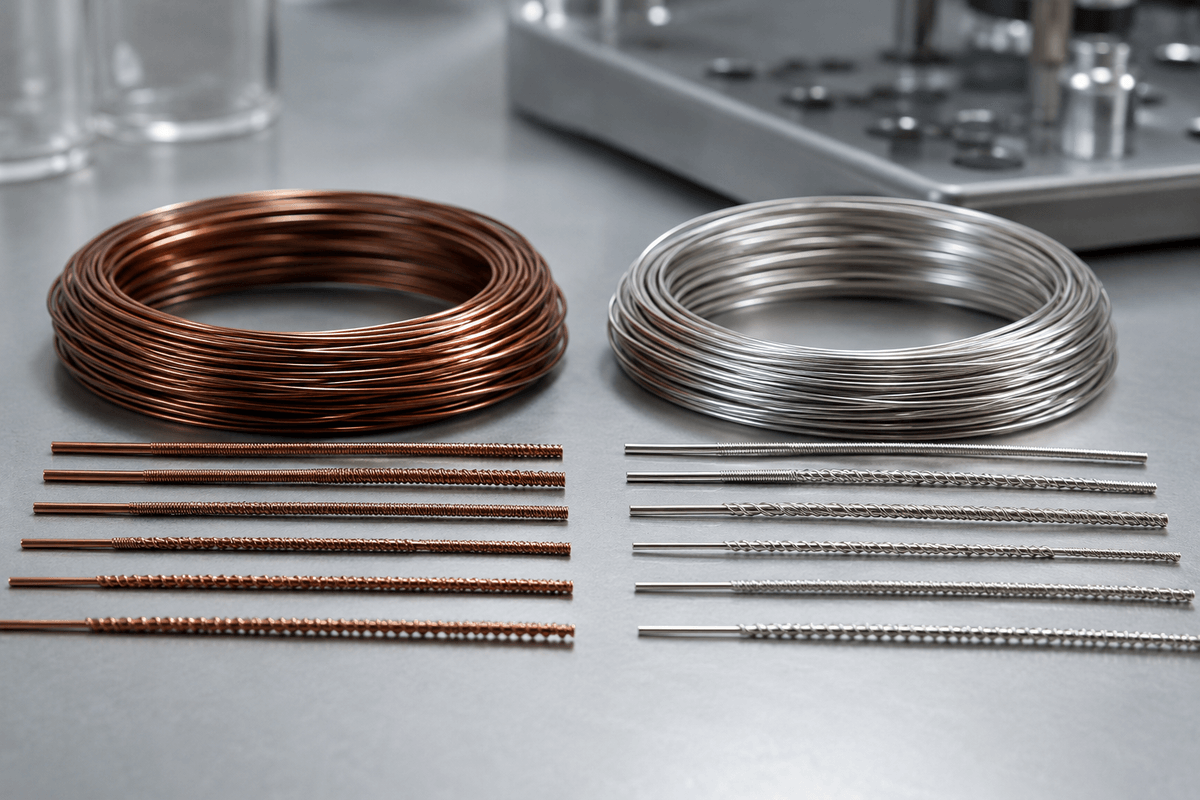

Copper NiTi vs Copper NiTiCr
GEE SMA product notes separate the family into Copper NiTi and Copper NiTiCr. Copper NiTi is described as a ternary narrow-hysteresis alloy suitable for shape memory actuator, shape memory spring, muscle wire, and some arch wire preparation. Copper NiTiCr is described as a quaternary alloy suitable for orthodontic arch wire and Cu NiTi arch wire applications.
The Active Af ranges also differ. GEE SMA product notes list Copper NiTi alloys with Active Af from about 45 to 75 degrees C and Copper NiTiCr alloys with Active Af from about 25 to 45 degrees C. For orthodontic uses, the notes highlight values such as 27, 35, and 40 degrees C. These temperature ranges are not decorative data. They are central to whether the wire activates in the intended environment.
For shape memory applications, the notes describe Active Af tolerance around +/-2 degrees C. That matters because a wire that activates a few degrees too early or too late can change the product experience. Buyers should confirm the required tolerance and test method before sampling.
Why Narrow Hysteresis Helps
In a shape memory wire, hysteresis describes the temperature gap between heating transformation and cooling transformation. A narrower hysteresis can make a thermal actuator feel more predictable because the wire does not need an excessively large temperature swing before it changes state again. That can be useful in compact mechanisms, repeated motion devices, and temperature-responsive assemblies.
Copper addition is one reason engineers consider Copper NiTi instead of binary NiTi. GEE SMA product notes connect Copper NiTi with narrow hysteresis behavior and controlled Active Af ranges. The practical value is not the word "copper" by itself; the value is a material route that can be tuned for a more specific thermal response.
Buyers should still test the wire in their real system. Heating method, wire length, diameter, preload, airflow, liquid exposure, insulation, and cooling rate can all change response. A coil spring made from Copper NiTi wire will not behave exactly like a straight actuator wire, even if both use the same alloy family.
Where the Wire Fits

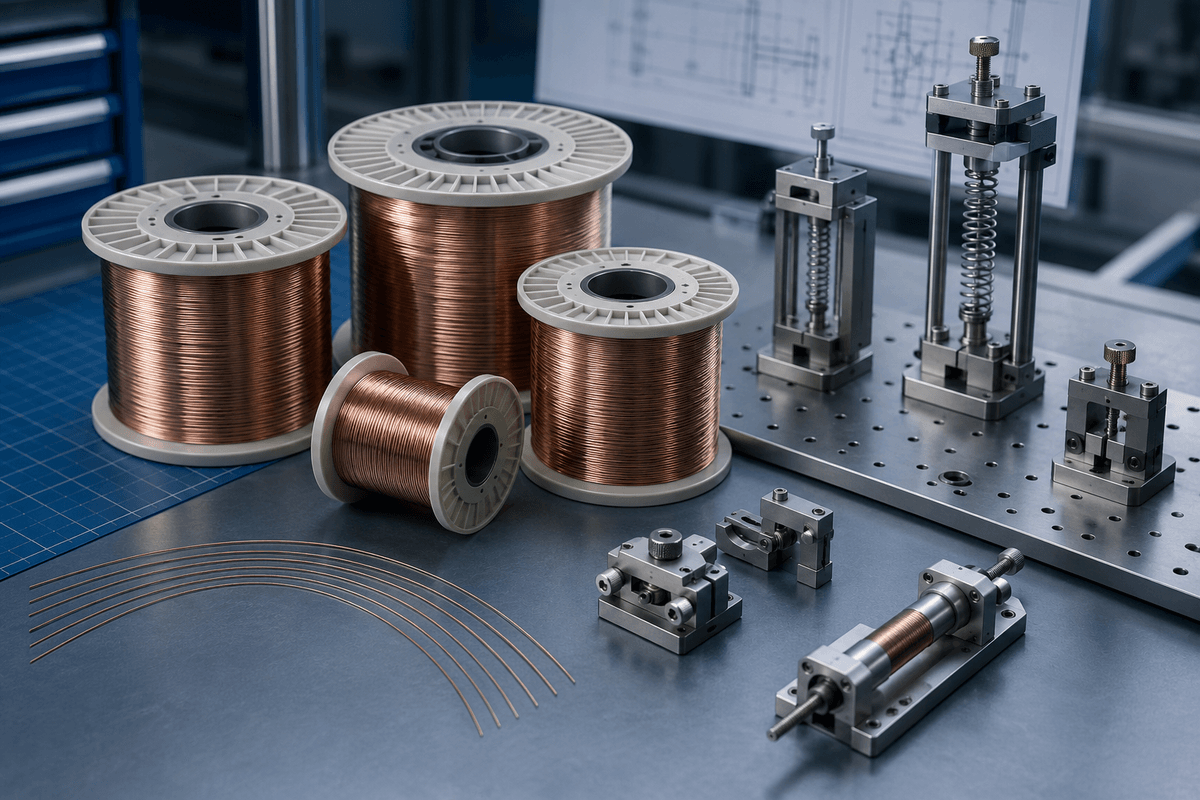

Copper NiTi wire can be relevant to compact actuation, engineered products, automation, safety systems, aerospace concepts, shape memory springs, muscle wire, and thermal-response mechanisms. The wire is attractive when a design needs movement with controlled transformation behavior rather than a conventional motor or spring assembly.
GEE SMA's actuator wire page is useful for understanding why a shape memory wire can act as a compact motion element. Copper NiTi should then be evaluated as a specific alloy family within that broader actuator conversation, especially when narrow hysteresis or temperature control is important.
In orthodontics, Copper NiTiCr and Copper NiTi wire may be used as raw materials for arch wire. The design goal is different from a machine actuator. Orthodontic wire must deliver controlled force in a biological environment, and final device performance depends on downstream processing, geometry, and clinical design.
Diameter, Delivery Condition, and Surface
GEE SMA product notes list Copper NiTi wire diameters from 0.05 mm, or 0.002 inch, and up. Delivery conditions include cold worked, cold drawn, and straight annealed options depending on the product route. These conditions matter because a cold-worked wire may be intended for later thermomechanical treatment, while a straight annealed condition may support a different development path.
Surface options in the product notes include black oxide and mechanically polished finishes. Black oxide is described as the diamond-drawn surface, while mechanically polished wire provides a bright metallic surface. The right choice depends on whether the wire will be formed, heat treated, coated, inspected, or supplied as a final material condition.
GEE SMA's custom nitinol wire forming content is relevant because many Copper NiTi applications use wire as a shaped element rather than a straight commodity. The forming and heat-treatment route should be discussed early.
Mechanical and Recovery Behavior
GEE SMA product notes describe Copper NiTi and Copper NiTiCr mechanical behavior in terms of martensite and austenite strength, elongation, upper plateau stress, and recovery after deformation. The notes indicate strong recovery behavior after several deformation levels when tested above Active Af and below Md. For an article audience, the useful takeaway is not to memorize a table. It is to understand that Copper NiTi wire must be evaluated in the correct phase and temperature condition.
A wire that performs well in one thermal condition may behave differently in another. If the design uses heat to trigger motion, the heating method, cooling path, duty cycle, ambient environment, and reset mechanism must be defined. If the design uses the wire in orthodontics, temperature response and force delivery become part of the final product design.
Because these behaviors are sensitive to composition and thermomechanical treatment, buyers should ask how the alloy code, Active Af, and final condition are controlled. A broad request for "Copper NiTi wire" is usually not enough.
Actuator Design Details Buyers Should Share
When Copper NiTi wire is used as an actuator material, the supplier should know more than the diameter. Useful inputs include target stroke, force range, available current or heat source, cooling method, cycle frequency, operating environment, reset mechanism, and whether the wire will be straight, coiled, crimped, welded, or formed. These details help determine whether the requested wire condition is realistic.
Diameter is especially important. A fine wire may heat and cool quickly, but it carries less load. A larger wire may provide more force, but response time and heat dissipation become harder to manage. The correct selection is a system decision, not only a material catalog decision.
For repeat orders, buyers should define how acceptance will be measured. A sample can be judged by visible motion, but production needs clearer criteria such as Active Af range, diameter tolerance, surface condition, mechanical behavior, and inspection documents. This reduces disagreement when the wire is later converted into springs, muscle wire, or custom actuators.
Medical and Orthodontic Boundaries
Copper NiTi and Copper NiTiCr can be relevant to orthodontic raw material conversations, but raw wire is not the same as a finished dental arch wire. Final orthodontic products require their own forming, heat treatment, finishing, packaging, labeling, and validation. A material article should not be read as a finished device claim.
For any medical or dental program, buyers should define the final regulatory route and validation responsibilities separately from the raw material order. The wire supplier can support material specifications and traceable documentation, while the device manufacturer controls finished-product claims.
Quality and Test Language
GEE SMA product notes reference ASTM F2004 for transformation temperature by thermal analysis and ASTM F2082 for bend and free recovery transformation temperature testing in related Copper NiTi information. These standards help create a shared language for temperature behavior, but the buyer should still define acceptance criteria for the application.
For actuator projects, the test plan may include stroke, force, cycle life, response time, and thermal stability. For orthodontic raw material, the test plan may include force behavior, transformation temperature, surface, and downstream arch wire manufacturing needs. For custom wire forms, dimensional inspection and heat-set geometry may also matter.
GEE SMA's technical information page is useful because it presents nitinol manufacturing as a controlled process. Copper NiTi wire should be treated with the same process discipline.
Supplier Questions
- Is the design better suited to Copper NiTi or Copper NiTiCr?
- What Active Af range and tolerance does the final application require?
- Will the wire be used for actuator motion, spring force, orthodontic arch wire, or custom forming?
- Which delivery condition is needed: cold worked, cold drawn, or straight annealed?
- Which surface supports the next process: black oxide or mechanically polished?
- What tests are required for transformation temperature, recovery, mechanical behavior, and lot traceability?
These questions keep the conversation focused on function. Copper NiTi wire is valuable when its narrow hysteresis and transformation behavior are matched to the design requirement.
Bottom Line
Copper NiTi wire is not just another name for ordinary nitinol wire. It is a shape memory alloy option for designs that need controlled transformation behavior, narrow hysteresis, and application-specific thermal response. Copper NiTi and Copper NiTiCr can support actuator, spring, muscle wire, and orthodontic raw material conversations when specified carefully.
For buyers evaluating Copper NiTi wire, GEE SMA can support discussions around alloy family, Active Af range, diameter, surface finish, delivery condition, and test expectations. Start with the temperature and function, then build the wire specification.
