Copper NiTi wire is often selected because copper additions can narrow transformation hysteresis and stabilize functional behavior relative to a comparable binary NiTi route. Active Af still matters, but it reports only one point on the heating path. An actuator, spring, thermal switch, or orthodontic raw-material program also needs to understand where motion begins, where reset completes, how load shifts the response, and how the loop changes during cycling.
GEE SMA product notes separate ternary Copper NiTi from quaternary Copper NiTiCr. They list Copper NiTi Active Af options broadly within 45 to 75 degrees C and Copper NiTiCr within 25 to 45 degrees C, subject to exact alloy and process confirmation. Its copper-containing NiTi wire families should therefore be ordered by a thermal-mechanical requirement, not by the word copper alone.
Af Does Not Describe the Cooling Path
Austenite finish indicates the completion of transformation during heating under the stated measurement condition. It does not report the martensite start or finish temperatures on cooling. The separation between heating and cooling transitions influences dead band, reset temperature, control precision, and passive switching behavior.
GEE SMA product notes cite narrow hysteresis as a defining Copper NiTi characteristic and list a typical As-Ms separation near 5 degrees C for one ternary family. Treat that as a product-selection direction requiring confirmation on the ordered wire, not a universal guarantee. GEE SMA's narrow-hysteresis control behavior is valuable when both sides of the thermal loop are included in prototype acceptance.

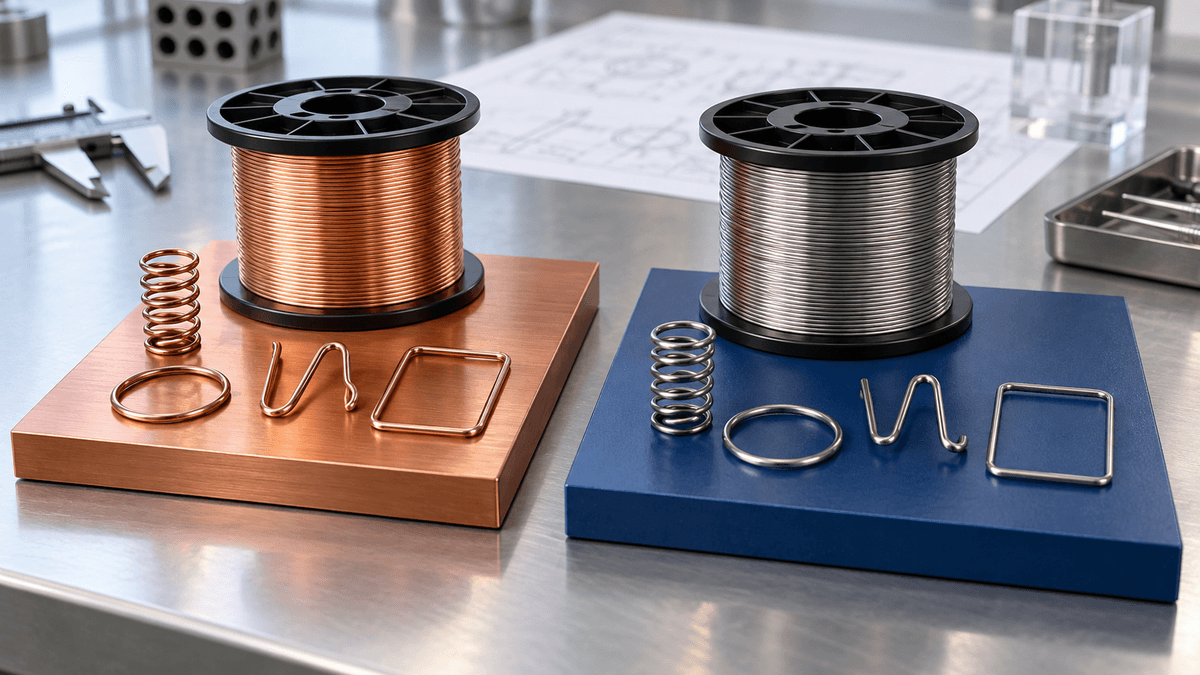

Copper NiTi and Copper NiTiCr Serve Different Windows
Ternary Copper NiTi is commonly considered for shape-memory actuators, springs, and muscle-wire systems at warmer activation ranges. Chromium additions can shift the useful transformation range lower, which is why Copper NiTiCr appears frequently in thermally activated orthodontic raw-material discussions. The precise result still depends on composition, cold work, and heat treatment.
Do not substitute the two families based only on a similar Af. Compare hysteresis, plateau response, strength, formability, surface route, and downstream heat treatment. GEE SMA's Copper NiTiCr specification controls show why alloy designation and delivery condition remain separate purchase-order fields.
Measurement Method Changes the Reported Loop
Differential scanning calorimetry measures heat flow through transformation in a small specimen. Bend-and-free-recovery measures motion. Loaded wire testing measures force or displacement under application-like stress. These methods answer related but different questions and may report different transition points.
State the method, specimen preparation, thermal rate, load, and wire condition beside every transformation result. If the customer shape sets the wire after delivery, repeat the functional measurement after that cycle. GEE SMA's trigger-temperature selection keeps the laboratory value connected to the installed heating and cooling environment.

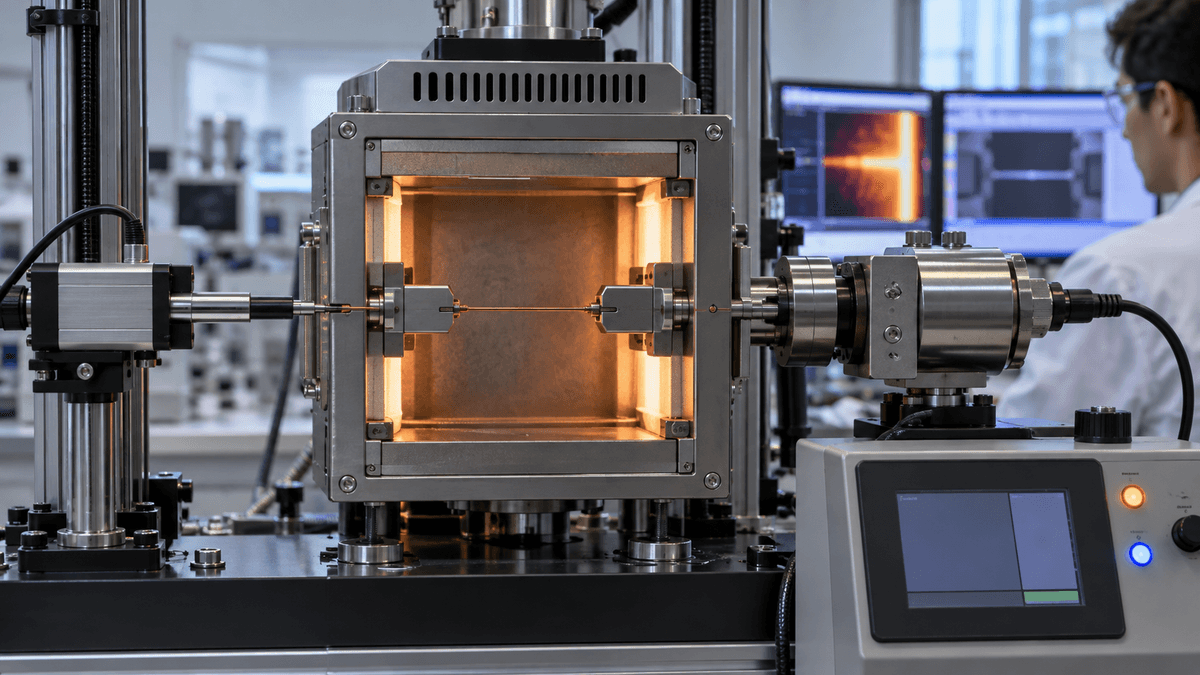

Loaded Cycling Reveals What Af Cannot
Early cycles can change residual strain, transformation stress, stroke, and loop width. Research on NiTi and CuNiTi wires shows that temperature, continuous bending stress, and thermocycling can alter measured mechanical response. A design should therefore establish a stabilization or training sequence before final acceptance measurements.
Test at the intended preload, deformation, temperature range, heating and cooling rates, and cycle frequency. Record hot and cold positions, force, resistance where useful, and residual drift. For actuators, include the bias mechanism and package cooling. For orthodontic raw material, use test geometry and temperatures justified by the downstream product; GEE SMA is supplying material, not making a finished clinical-performance promise.
Delivery Condition Preserves or Consumes Process Freedom
Cold-drawn wire gives the customer room for further forming and heat treatment. Straight-annealed or functionally heat-treated wire arrives with more of its behavior established. A later furnace cycle can move Active Af, alter hysteresis, relax residual stress, and change surface oxide.
The RFQ should state who owns final shape setting and which condition is tested. GEE SMA's post-shape-set qualification approach is especially relevant when incoming copper NiTi wire becomes a formed spring, archwire blank, or custom actuator.
Surface and Diameter Affect the Complete System
Product notes list black oxide and mechanically polished surfaces for Copper NiTi wire. Surface choice affects handling, inspection, joining, friction, cleaning, and later finishing. Diameter changes force, electrical resistance, thermal mass, and cooling behavior in an electrically heated actuator.
Specify diameter tolerance, straightness, spool condition, surface, prohibited defects, and packaging. If electrical heating is used, test the actual active length and termination method. If bending dominates, inspect the highest-strain surface after final forming and cycling.
Copper NiTi Wire Data Package
- Alloy family: Copper NiTi or Copper NiTiCr, with agreed supplier designation.
- Active Af target plus heating and cooling transformation results by a named method.
- Wire diameter, tolerance, delivery condition, surface, straightness, and spool format.
- Loaded force or displacement loop at relevant temperatures and applied stress.
- Stabilization cycles, drift, residual strain, and representative cycle-life conditions.
- Final shape-setting, joining, cleaning, and surface-inspection responsibilities.
Copper NiTi wire is most useful when its narrower transformation behavior solves a defined control or force problem. Active Af selects the neighborhood; heating and cooling data, loaded cycling, and final processing show whether the delivered wire will repeat inside the actual product.
