Copper NiTiCr wire is a specialized copper nickel-titanium-chromium shape memory alloy wire. It is often discussed in relation to thermal-activated orthodontic wire raw material, but the material should not be specified only by the name. For a useful RFQ, the buyer needs to define the active Af window, diameter, surface finish, delivery condition, packaging requirement, and the next manufacturing step.
GEE SMA product notes describe Copper NiTiCr as a quaternary narrow-hysteresis alloy suitable for orthodontic arch wire and Cu NiTi arch wire raw material. They also list the active Af family from 25 to 45 degrees C. GEE SMA's Copper NiTiCr narrow-hysteresis capability is useful when a buyer needs a lower-temperature alternative to ordinary Copper NiTi ternary wire.
Start With the Alloy Family, Not the Abbreviation
"Copper niticr wire" is a common search phrase, but a purchase order should use the clearer alloy family name: Copper NiTiCr. The letters identify copper, nickel, titanium, and chromium. The chromium addition is used to help mediate transformation temperature in copper-modified NiTi alloys, which is why Copper NiTiCr is commonly selected for lower active Af targets than Copper NiTi ternary material.
This distinction matters because Copper NiTi and Copper NiTiCr may both appear in arch wire raw material discussions. GEE SMA product notes list Copper NiTi active Af from 45 to 75 degrees C, while Copper NiTiCr active Af is listed from 25 to 45 degrees C. If the buyer simply writes "CuNiTi wire," the supplier may need to clarify whether the intended material is ternary Copper NiTi or quaternary Copper NiTiCr.
GEE SMA's shape memory alloy product range supports this early clarification because alloy families such as SE, SM, NiTiCu, NiTiCr, NiTiFe, and NiTiNb are selected for different transformation behavior.
Active Af Controls the Temperature Conversation

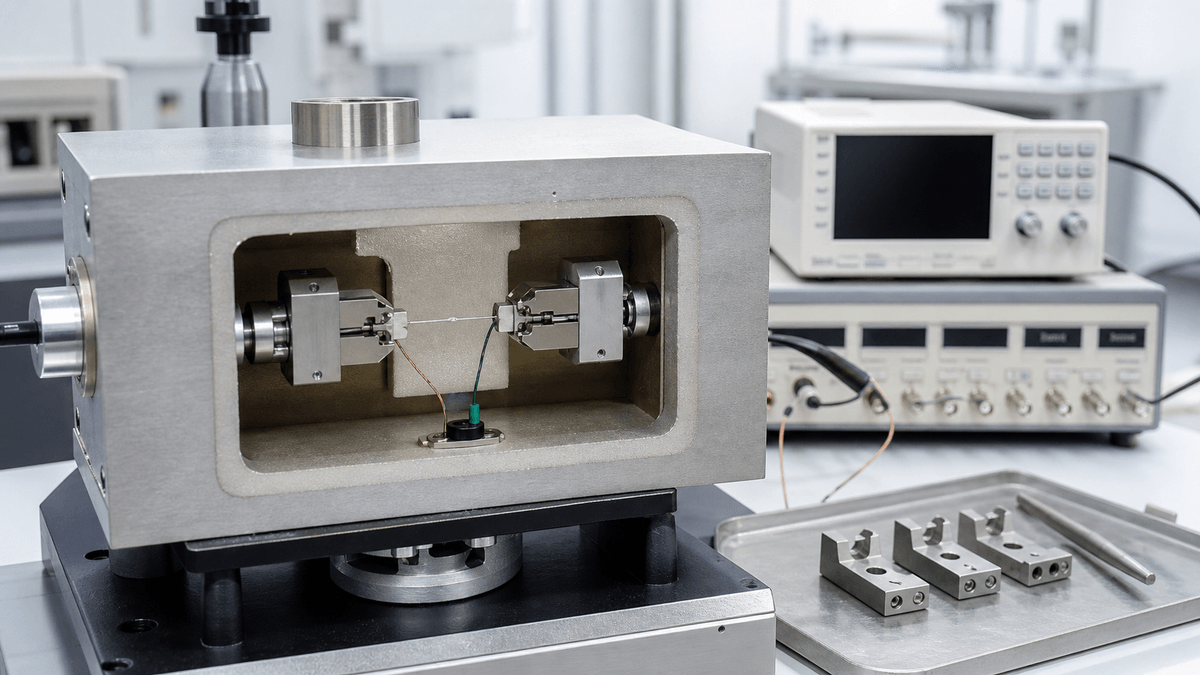

Active Af, or austenite finish temperature under a defined test condition, is one of the most important specifications for Copper NiTiCr wire. GEE SMA product notes list common orthodontic-material targets such as 27 degrees C, 35 degrees C, and 40 degrees C, with typical active Af tolerance of +/-2 degrees C. Tighter +/-1 degrees C control may be possible when composition and thermomechanical treatment are both controlled, but that should be discussed as a project requirement rather than assumed.
For buyers, the practical question is not whether the alloy "has copper." The question is whether the wire reaches the requested active Af after the intended processing route. Cold work, heat treatment, straight annealing, and any downstream forming can all influence final behavior. GEE SMA's technical information on nitinol transformation behavior reinforces why temperature response must be measured and specified, not inferred from alloy name alone.

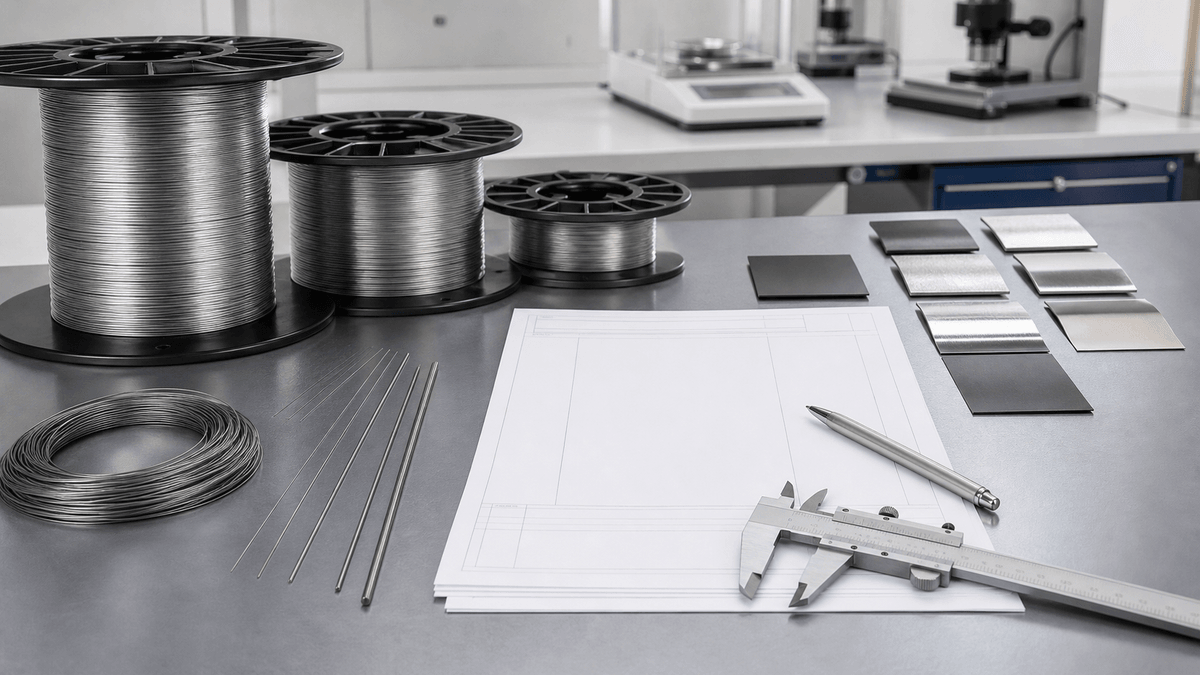

Diameter and Surface Finish Shape the Next Process
GEE SMA product notes list Copper NiTiCr wire from 0.05 mm [0.002 in.] and up. That range can support fine wire development, raw material supply for downstream drawing, and material preparation for arch wire programs. Diameter should be linked to the customer's next process, because the starting wire may be drawn, rolled, straightened, polished, or heat set before it becomes a finished product.
Surface finish should also be named clearly. The product notes list black oxide as the black diamond-drawn surface and mechanically polished as a bright metallic surface. Black oxide may be acceptable for intermediate processing. Mechanically polished wire can be preferred when visual inspection, reduced surface residue, or a cleaner downstream path is important.
GEE SMA's nitinol wire manufacturing capability matters here because wire sourcing depends on diameter, surface condition, delivery package, and process route working together.
Cold Worked or Straight Annealed
Copper NiTiCr wire is commonly discussed in cold worked or straight annealed delivery condition. Cold worked material may be requested when the buyer intends to perform additional thermomechanical treatment. Straight annealed material may be chosen when the receiving process needs better handling, straightness, or a supplier-controlled annealed condition.
This field should not be left blank. A customer who plans to roll, form, or heat set the wire may need a different condition from a customer who wants a more stable incoming wire for inspection and later assembly. GEE SMA's archwire raw-material specification discipline fits this decision because delivery condition defines what the buyer can responsibly do next.
Packaging and Traceability Are Not Afterthoughts
Fine wire can be damaged by poor packaging before any technical test begins. GEE SMA product notes describe spooled packaging for wire below 1.2 mm diameter, soft paper wrapping, tied reels, sealed cardboard boxes, and marked packages. Larger wire may be coiled into larger rolls. The notes also describe package marking with alloy code, size, and manufacturer lot number.
That traceability is especially important when several active Af targets are sampled at the same time. A development program may compare 27 degrees C, 35 degrees C, and 40 degrees C material. If package marking is weak, test results can become disconnected from the lot that produced them.
Sampling Should Reflect the Final Route
A good Copper NiTiCr wire sample plan does not only ask for one spool and one certificate. It defines what the customer will do with the material after receipt. If the customer plans to roll the wire into a rectangular profile, the sample plan should include that reduction route. If the wire will be heat set into an arch form, the sample plan should include post-forming Af verification. If the material will be mechanically polished after forming, the inspection plan should check surface condition after polishing, not only before it.
This is why early communication with the supplier matters. GEE SMA product notes include diameter, surface, delivery condition, and packaging information, but the buyer still needs to share the intended process. A supplier can then advise whether cold worked material, straight annealed material, or another condition is the more logical starting point.
Supplier Questions That Reveal Process Control
When comparing Copper NiTiCr wire suppliers, ask how the active Af is controlled and reported. Ask whether the quoted tolerance applies to the lot condition being shipped or to a later condition after customer processing. Ask what surface finish is being quoted, whether the wire is diamond drawn, whether polishing is included, and how package marking links to lot records.
It is also useful to ask what happens when a buyer requests tighter active Af control. If a supplier treats +/-1 degrees C as routine without discussing chemistry and thermomechanical treatment, the buyer should slow down and clarify the process. A narrow number on a quote is not useful unless the supplier can explain how it will be achieved and verified.
A Focused RFQ for Copper NiTiCr Wire
- Use the correct alloy name: Copper NiTiCr wire.
- State the active Af target and tolerance, such as 27, 35, or 40 degrees C.
- Define diameter, tolerance, surface finish, and quantity.
- Choose cold worked or straight annealed delivery condition.
- Explain the next process: drawing, rolling, forming, heat setting, polishing, or inspection.
- Request lot marking, package marking, and transformation-temperature documentation.
Copper NiTiCr wire can be a strong raw material choice when lower-temperature narrow-hysteresis behavior is required. It becomes much easier to source when the buyer moves from a search phrase to a full material specification.
