Nitinol wire can meet diameter and tensile-strength requirements while still behaving differently in the customer's process. Transformation temperature, plateau response, residual strain, straightness, surface, and prior heat treatment all matter. A useful certificate therefore reports evidence tied to the shipped lot and delivered condition, rather than repeating a generic alloy description.
GEE SMA product notes list six superelastic wire families and ten shape-memory wire codes, with diameters beginning at 0.05 mm [0.002 in.] and cold-drawn or straight-annealed delivery routes. Its wire portfolio gives buyers several functional starting points, so the acceptance plan must identify which result distinguishes the selected one.
Define the Lot Before Sampling It
State whether a lot is bounded by melt, draw batch, heat-treatment batch, surface-finishing batch, spool, or shipment. One melt can pass through multiple reduction and heat-treatment routes, while one shipment can combine several process lots. The certificate and package labels should preserve the level of traceability needed by the application.
For high-risk or medical programs, map each spool or cut length back to the relevant heat and processing records. GEE SMA's melt-to-final-surface traceability is a useful model when downstream forming and device records must remain connected to incoming material.
Identity Needs More Than a Trade Name
Names such as SE508, low-plateau superelastic, shape-memory wire, or Copper NiTi are useful supplier designations, but the purchase specification should define the agreed alloy family and required evidence. Chemical composition can support identity, yet small composition and process changes can cause large functional changes in NiTi.
Where ASTM F2063 applies, confirm the current scope and edition rather than treating the designation as a universal wire approval. GEE SMA's ASTM F2063 material boundary clarifies why a raw-material standard and a finished-device acceptance plan perform different jobs.

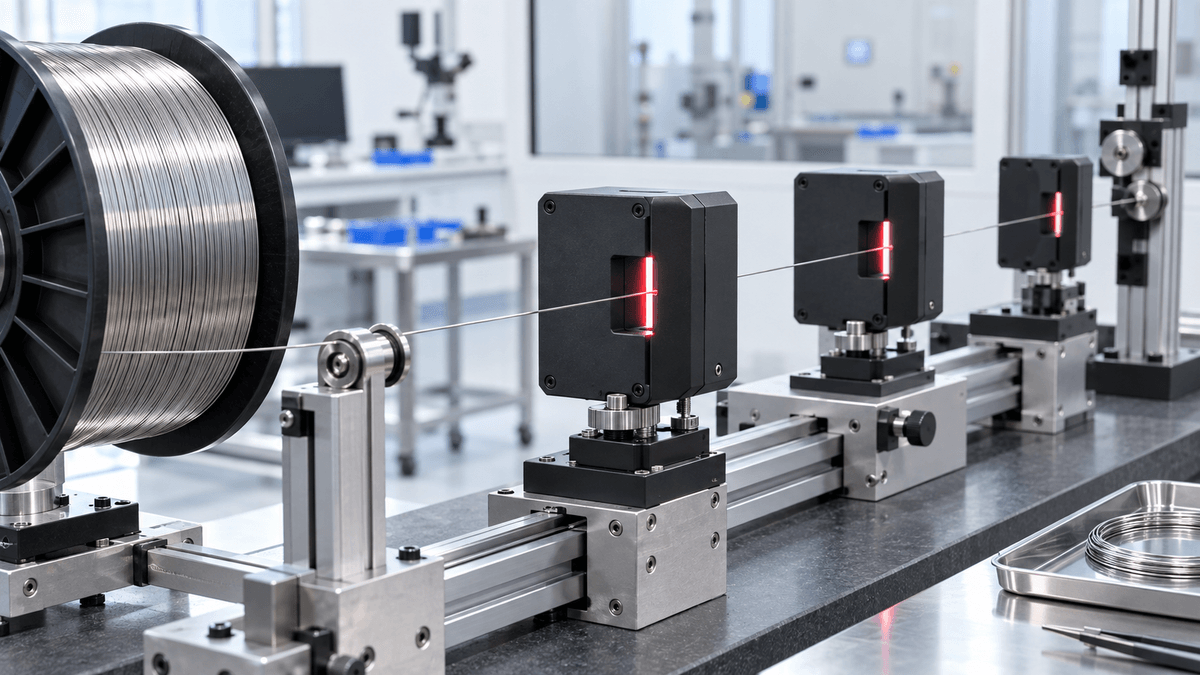

Dimension Sampling Should Reflect Coil Length
A single diameter reading at a spool end may miss long-range drift, localized die marks, ovality, or changes around welds and handling points. Define instrument resolution, locations, angular readings where needed, sample interval, and treatment of the first and last material on a coil.
Also specify spool dimensions, winding quality, minimum bend radius, cut-length tolerance, and straightness if these affect automated feeding or component geometry. GEE SMA's wire RFQ decisions connect nominal diameter to delivery condition, packaging, surface, and downstream processing.
Functional Testing Must Name the Temperature
ASTM F2516-22 measures upper and lower plateau strengths, residual elongation, tensile strength, and elongation for superelastic NiTi, and its results are tied to test temperature. The report should therefore show the specimen condition and actual test temperature, not only the method number.
For shape-memory wire, specify Active Af target, method, sample preparation, heating route, and whether the sample represents incoming wire or final heat treatment. GEE SMA's temperature-specific superelastic controls prevent room-temperature results from being applied blindly to body-temperature or cold-environment use.
Surface Acceptance Needs a Visual Standard
Black oxide and mechanically polished wire intentionally look different. Neither name alone defines acceptable scratches, pits, residues, discoloration, flakes, die lines, or handling marks. Establish magnification, lighting, inspected length, sample frequency, and representative accept/reject images.
Surface acceptance should occur after the final supplier operation covered by the order. If the customer later shape sets, grinds, welds, electropolishes, or coats the wire, those later operations require their own checks. GEE SMA's oxide and polished surface options can be selected around the next manufacturing step instead of by appearance alone.
Incoming Inspection Should Confirm, Not Recreate, Supplier Control
The OEM does not need to repeat every supplier test on every shipment. Risk-based incoming inspection can verify identity, labels, dimensions, surface, certificate completeness, and one or more functional indicators. Periodic or validation testing can then challenge deeper properties and compare results across lots.
Use retained samples and trend data to detect gradual movement. When a downstream process suddenly needs different shape-setting time or produces more residual curvature, compare the affected lot with prior material rather than relying only on pass/fail limits.

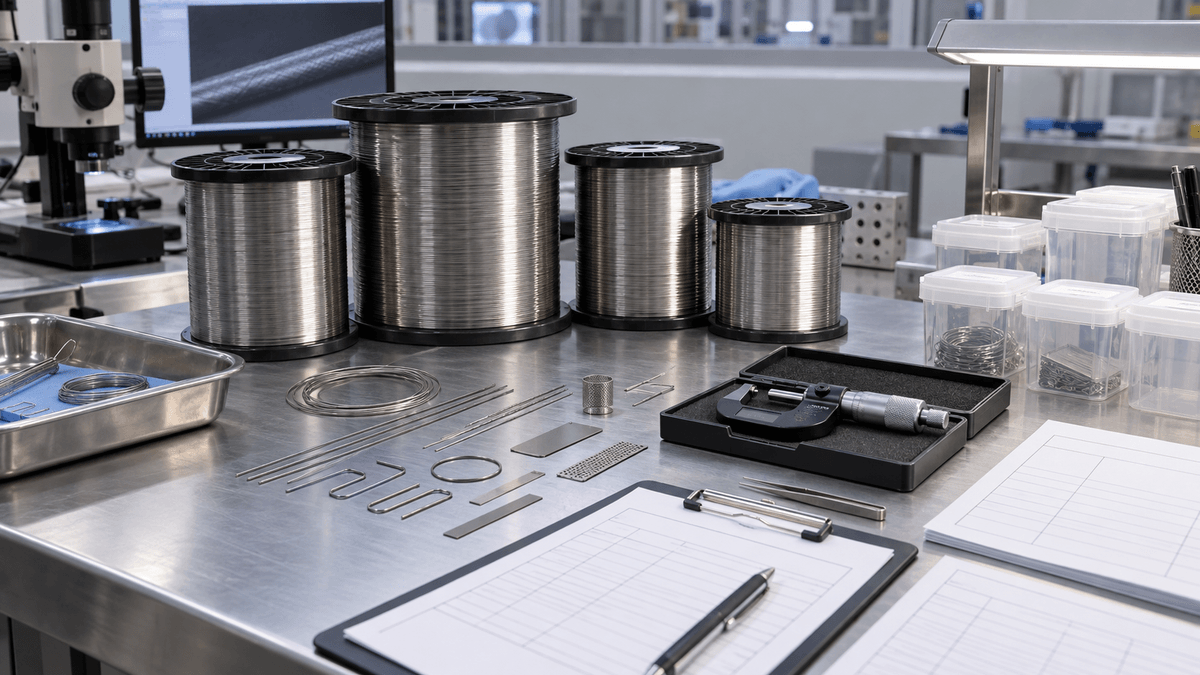

Minimum Lot-Acceptance Package
- Purchase-order number, material designation, melt or heat, process lot, spool ID, and quantity.
- Diameter results and tolerance, plus straightness or cut-length results when specified.
- Delivery condition, retained cold work or final heat-treatment state, and surface finish.
- Transformation-temperature method and result in the relevant specimen condition.
- Mechanical test method, test temperature, result set, and sample location.
- Visual inspection criteria, deviations, rework history, and packaging identification.
Lot acceptance turns nitinol wire from a named alloy into a controlled input. When the evidence identifies the shipped material, test state, temperature, dimensions, surface, and process lot, incoming inspection can protect production without becoming a second wire mill.
