The phrase nitinol passivation ASTM looks concise on a drawing, yet it combines three different questions. What material condition enters the process? What surface-preparation or passivation route is required? What evidence must the final component produce? Unless those questions are separated, a supplier may satisfy the words while missing the buyer's actual corrosion, cleanliness, or surface objective.
GEE SMA supplies NiTi in black oxide, light oxide, pickled, and mechanically polished conditions depending on product family. Its surface and heat-treatment controls can define the incoming state, but the OEM must identify whether later forming, cutting, joining, polishing, cleaning, or sterilization changes the surface that will be evaluated.
Requirement One: Name the Incoming Material State
A passivation callout cannot compensate for an undefined substrate. State the alloy or material specification, product form, delivery condition, transformation requirement, dimensions, and starting surface. For medical wrought NiTi, ASTM F2063 may be relevant to the raw material scope, but it does not approve a finished device or prescribe every surface process.

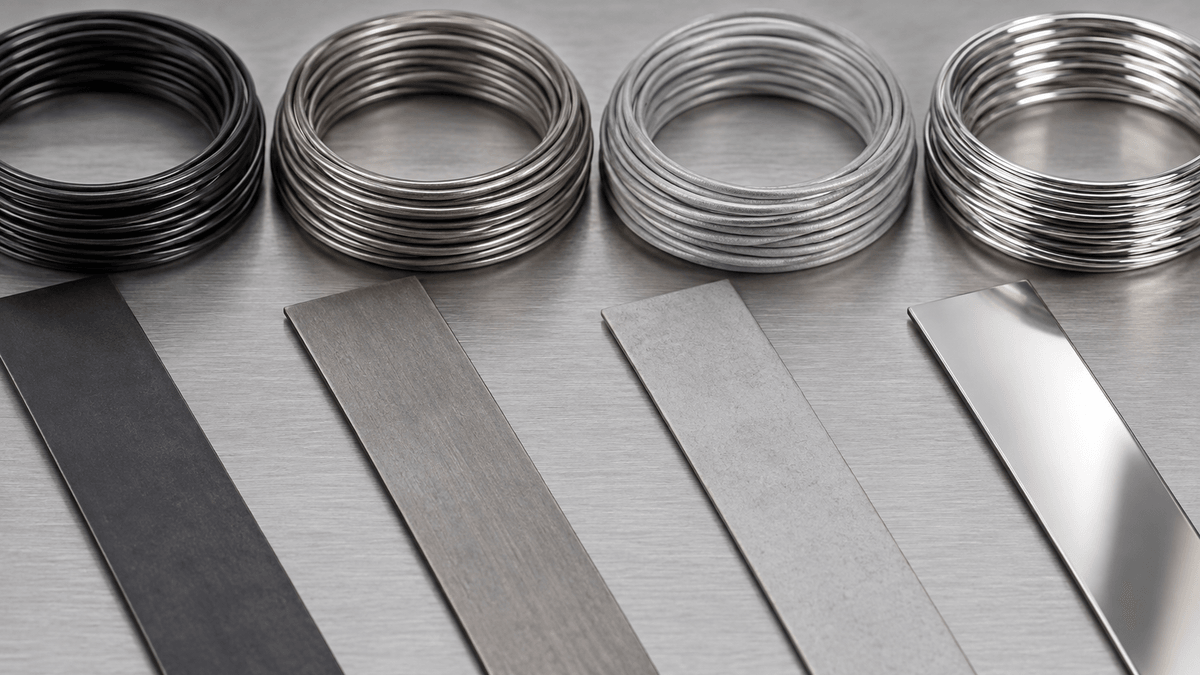

Also identify whether the starting material carries drawing oxide, furnace oxide, a bright mechanically polished finish, or a chemically cleaned surface. GEE SMA's black-oxide and polished wire options are intentionally different process starting points. Mixing them under one generic passivation instruction can produce different removal depths, appearance, and final dimensions.
Requirement Two: Specify the Surface Operation
ASTM F86-21(2026) describes surface preparation and marking for metallic surgical implants and recognizes that the preferred treatment depends on the implant material and contaminants. It does not turn the word passivation into one universal NiTi recipe. The production specification still needs the selected chemical or electrochemical process, preparation steps, process window, rinsing, neutralization where applicable, and cleanliness controls.
Place the operation after the processes that create the relevant contamination or damage. Heat setting can grow oxide. Laser cutting can create recast and heat-affected material. Grinding can smear debris. Marking after treatment may disturb a localized area. GEE SMA's shape-setting and surface sequence reinforces why process order is part of the requirement.
Passivation, Etching, and Electropolishing Are Not Synonyms
Cleaning removes soil and residues. Chemical etching removes material through a chemical reaction. Electropolishing electrochemically smooths and removes surface material. Passivation supports a clean, corrosion-resistant passive state. A real production route may use more than one of these operations, but the drawing should not use the terms interchangeably.
Removal depth matters for fine wire, thin strip, small tube walls, sharp features, and interference fits. Specify the dimensional condition in which final inspection occurs. If a surface operation rounds an edge or changes diameter, those effects must be included in tolerance and fatigue planning.
Requirement Three: Define Finished-Condition Evidence
Visual cleanliness alone cannot establish corrosion behavior. ASTM F2129-25 evaluates corrosion susceptibility of small metallic implant devices by cyclic potentiodynamic polarization and specifically emphasizes testing the device in its final form and finish. Its severe electrochemical conditions support comparison; they do not recreate every in-vivo variable.
The test plan should name specimen geometry, surface state, sample count, preparation, electrolyte, test parameters, acceptance criteria, and treatment of anomalies. A straight coupon may be useful for process development but may not represent a laser-cut frame, welded joint, tightly bent wire, or marked component. GEE SMA's material-to-device boundary keeps raw-material conformance separate from final-device evidence.
Connect Corrosion, Nickel Release, and Fatigue Carefully
A stable surface can support corrosion resistance and lower nickel release, but one result does not automatically prove another. Surface roughness, oxide chemistry, inclusions, residues, crevices, environment, and exposure time can all influence performance. The FDA's nitinol guidance treats corrosion, nickel release, surface characterization, and fatigue as related technical considerations for the finished device.
Aggressive removal may improve some defects while changing dimensions or exposing others. Evaluate fatigue after the final surface route when cyclic loading is relevant. GEE SMA's final-surface evidence approach connects finishing records to the lot and geometry that enter verification.
Add Handling and Packaging to the Surface Plan
A clean passive surface can be scratched, mixed, or contaminated after treatment. Define contact materials, glove and tool controls, drying, part separation, protective packaging, lot labeling, and storage conditions. For wire, control spool contact and bend radius; for cut parts, prevent edge-to-edge abrasion.
GEE SMA's custom-component processing is most useful when finishing and packaging are specified together. The accepted surface should be the surface delivered to the next controlled operation, not merely the surface observed at the treatment tank.
Drawing Language That Can Be Audited
- Material: alloy, standard and revision, product form, delivery condition, and incoming surface.
- Process: named preparation and passivation route, sequence, qualified window, and process owner.
- Dimensions: removal allowance and the operation after which final dimensions apply.
- Inspection: visual standard, cleanliness criteria, sampling, and prohibited defects.
- Verification: final-condition corrosion or other surface test method and acceptance criteria.
- Protection: post-process handling, separation, packaging, traceability, and shelf controls.
A useful nitinol passivation ASTM requirement is not one vague line. It is a coordinated set of material, process, and verification instructions that leaves the supplier and OEM with the same definition of the final surface.
